Manitou

ID # 17948071

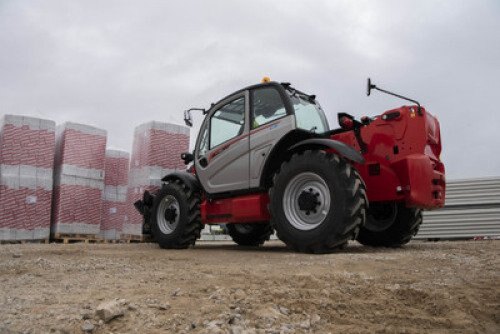

Manitou MT 1135 Easy ST5

Call for Price
Overview

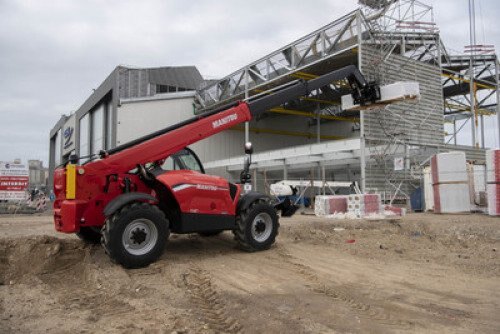

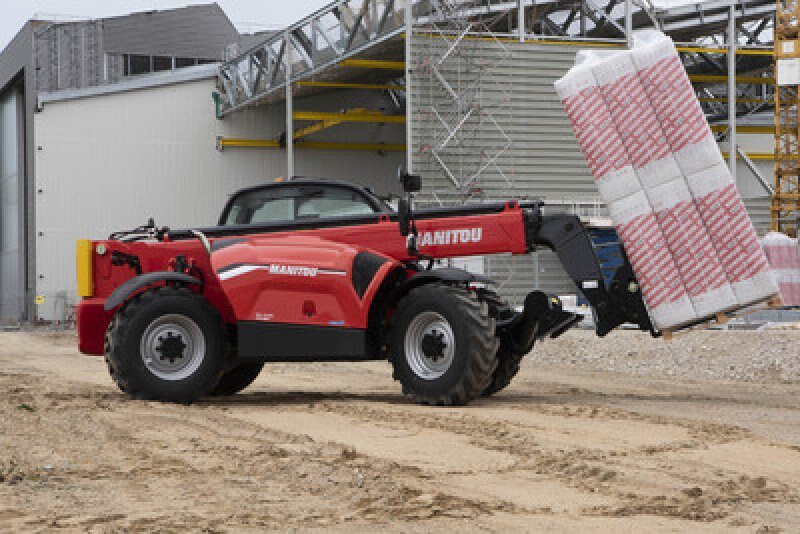

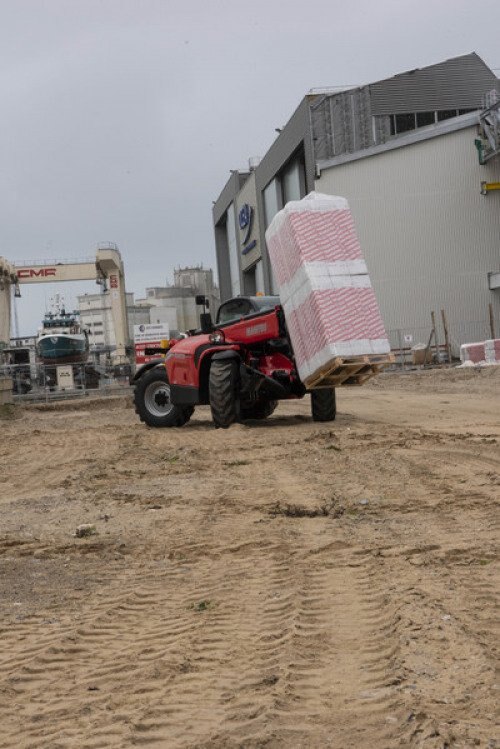

The MT 1135 H is designed for users working on construction sites for buildings 2 to 3 stories tall. The JSM (Joystick Switch & Move) control system allows you to perform all telescopic machine functions with just one hand for more comfort. The spacious ergonomic cab offers excellent visibility and it is easily accessible through a large door entrance. For maximum on-site performance, the MT 1135 H comes equipped with a hydrostatic transmission for power and flexibility when placing loads as well as frame leveling and 4-wheel drive to easily adapt to any jobsite ground environments.

Specifications
Model
MT 1135 Easy ST5
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Manitou
Fuel Tank
120 l
Wheelbase
2.88 m
Engine Norm
Stage 5 / Tier IV Final
Engine Brand
Deutz
Hydraulic Oil
140 l
Max. Capacity
3500 kg
Overall Width
2.28 m
Overall Height
2.42 m
Ground Clearance
0.42 m
Overall Cab Width
0.88 m
Number Of Batteries
2
Engine Cooling System
Water
Max. Torque / Engine Rotation
330 Nm @ 1600 rpm
I.C. Engine Power Rating / Power (kW)
75 Hp / 55.40 kW
Number Of Cylinders - Capacity Of Cylinders
4 - 3621 cm³
technical features

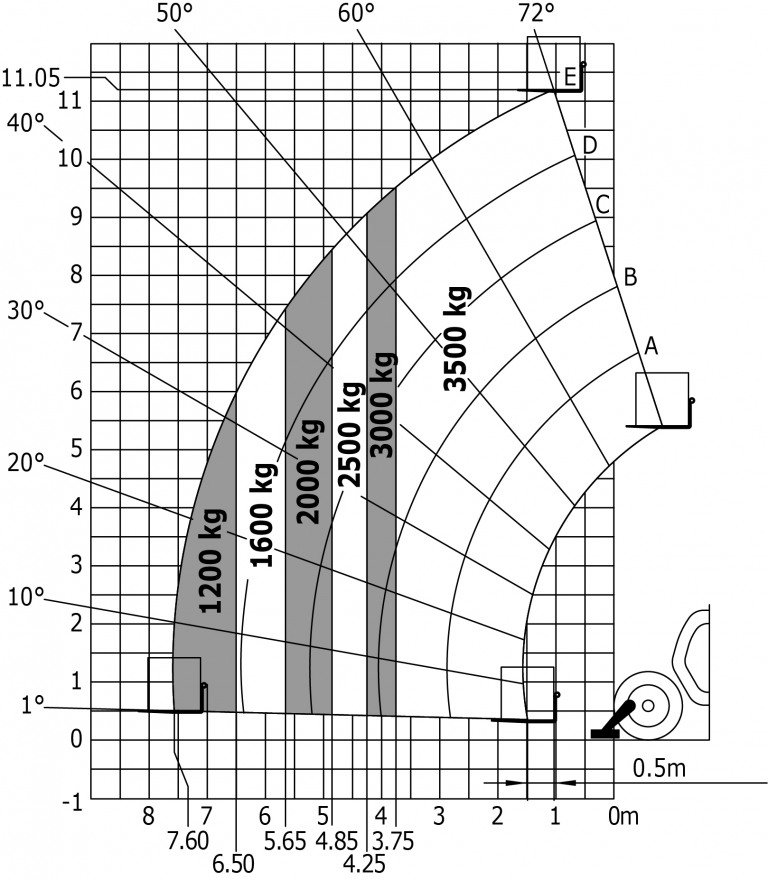

Machine on stabilizers with forks - with levelling device Metric

Manitou MT 1135 Easy ST5

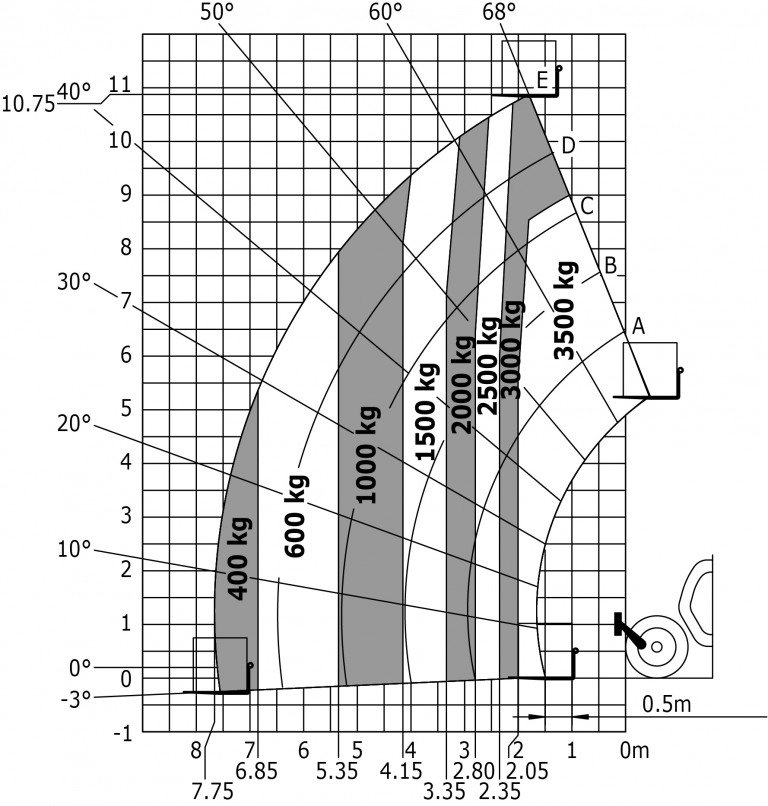

 Machine on tyres with forks - with levelling Metric

Manitou MT 1135 Easy ST5
