Manitou

ID # 17948070

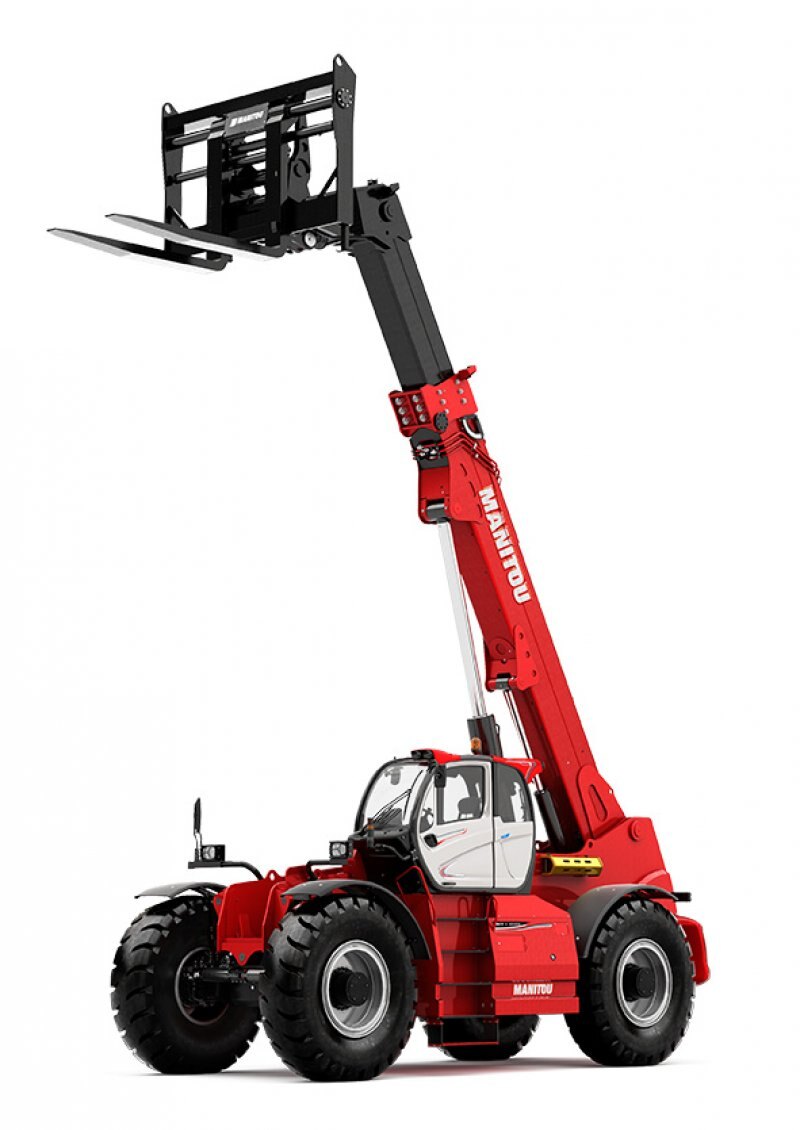

Manitou MHT 12330

Call for Price
Overview

The MHT 12330 high capacity telehandler is capable of flexibly and transporting heavy, larger loads with complete precision. The large number of compatible attachments available truly transform the MHT 12330 into a versatile multi-tool carrier. The ergonomic driver's cab features intuitive controls which can be grasped immediately by the operator. The comfort and the panoramic view provide optimum working conditions and help contribute to safety during delicate handling operations. You could, for example, transport large pieces of rock or marble at a quarry or handle long components such as steel bars, rails or metallic structures. It's also useful when maintaining mining equipment, changing wheels, replacing cylinders or shifting conveyors.

Specifications
Model
MHT 12330
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Manitou
Fuel Tank
600 l
Wheelbase
4.90 m
Engine Norm
Stage 5 / Tier IV Final
Engine Brand
Deutz
Hydraulic Oil
570 l
Max. Capacity
33000 kg
Overall Width
2.98 m
Overall Height
3.60 m
Ground Clearance
0.59 m
Overall Cab Width
0.97 m
Number Of Batteries
2
Engine Cooling System
Water
Max. Torque / Engine Rotation
1000 Nm@1450 rpm
I.C. Engine Power Rating / Power (kW)
245 Hp / 180 kW
Number Of Cylinders - Capacity Of Cylinders
6 - 6100 cm³
technical features

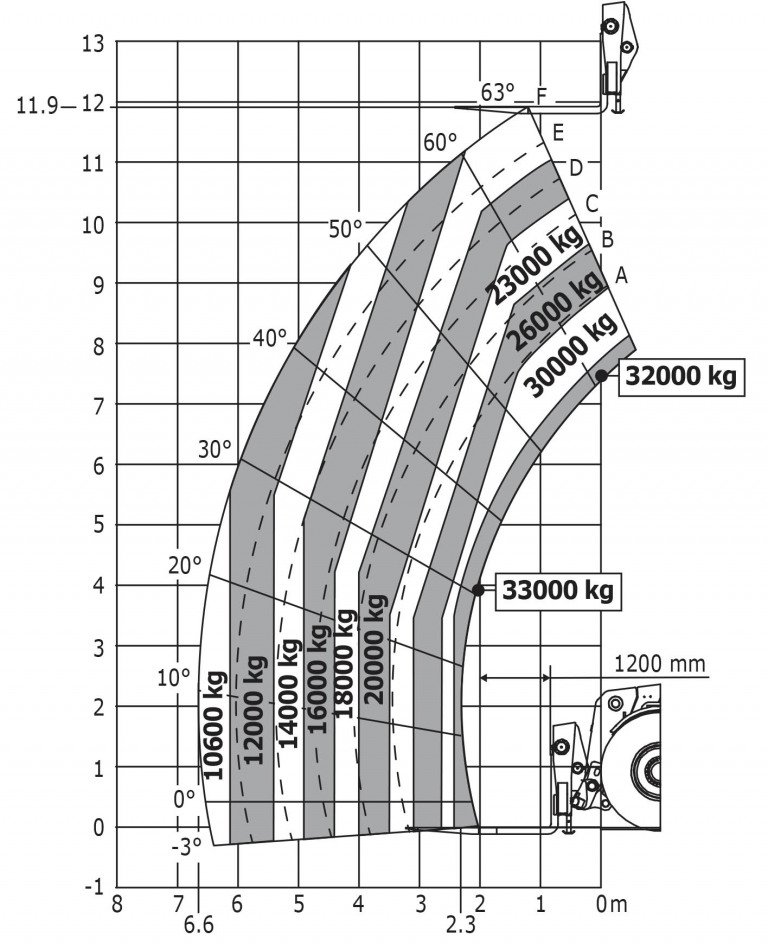

Load Chart Metric

Manitou MHT 12330

Machine on tyres with jib Metric

Manitou MHT 12330

 Rough terrain load chart (EN 1459 B) Metric

Manitou MHT 12330
