Manitou

ID # 17948061

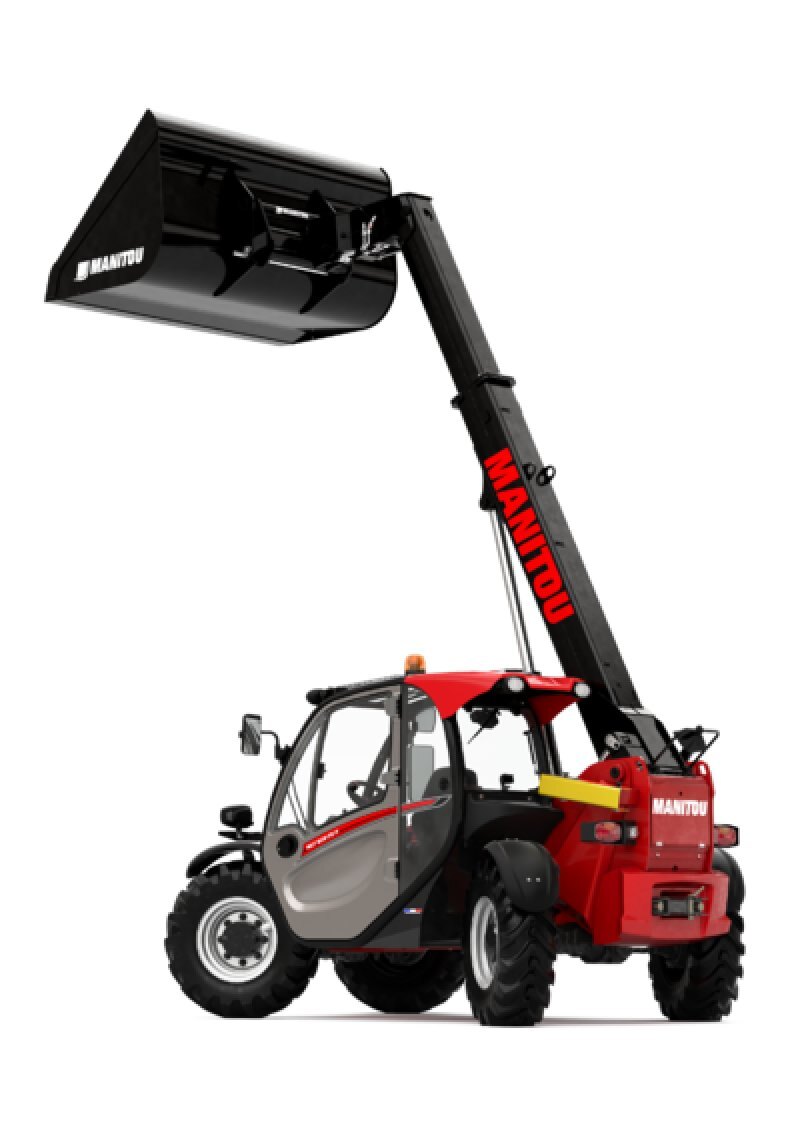

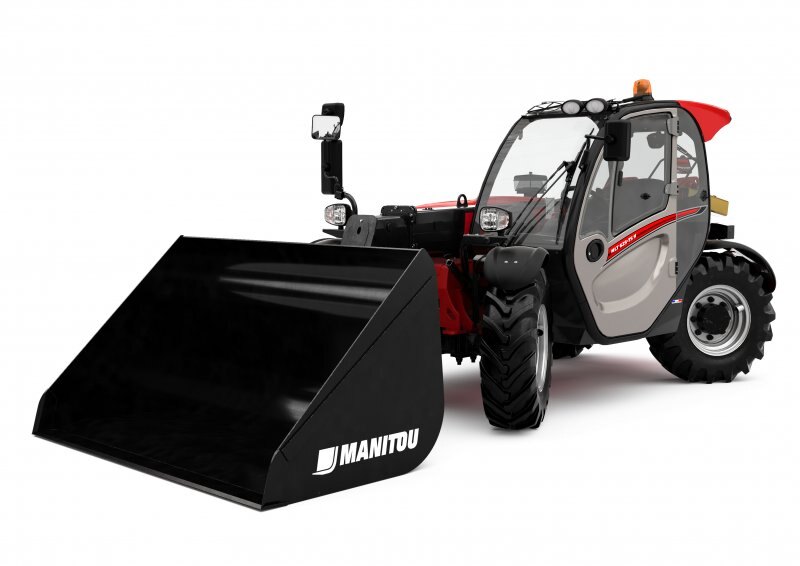

Manitou MLT 625-75 H

Call for Price
Overview

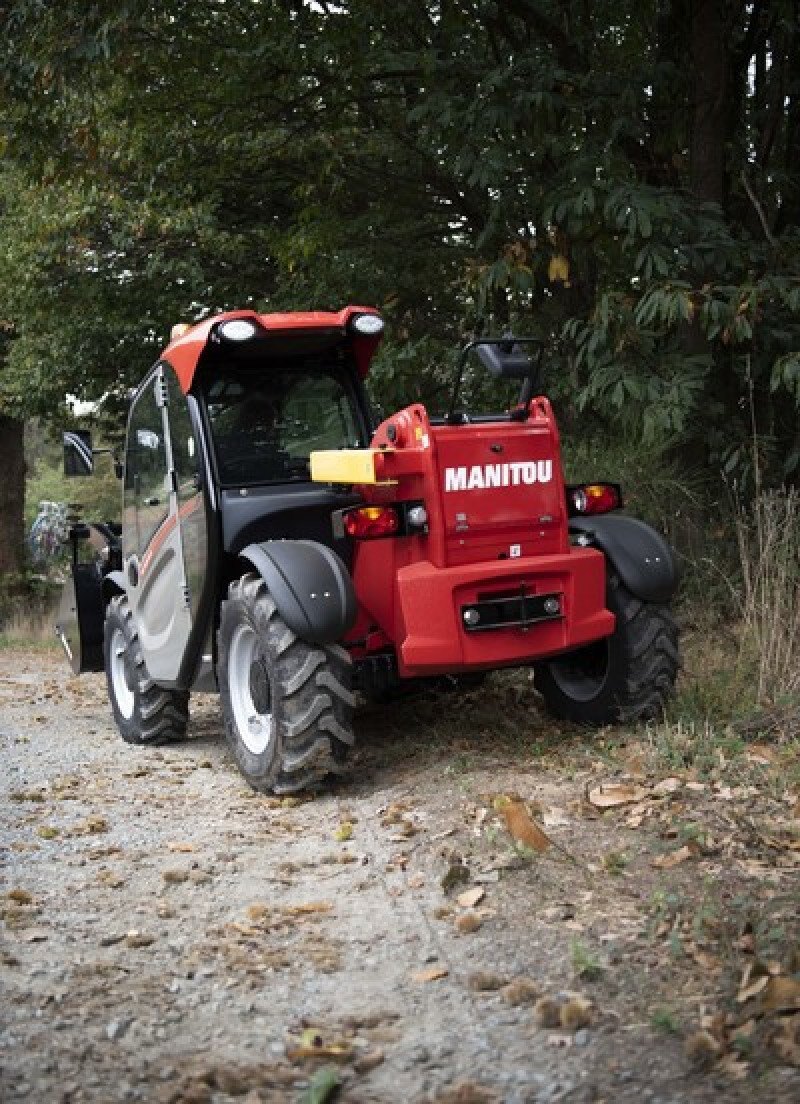

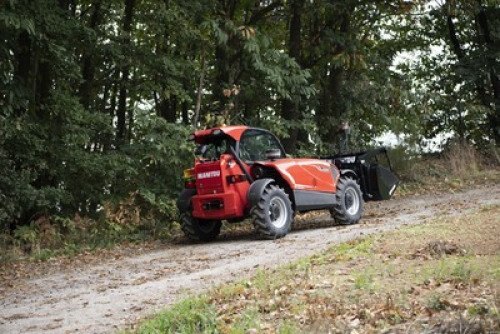

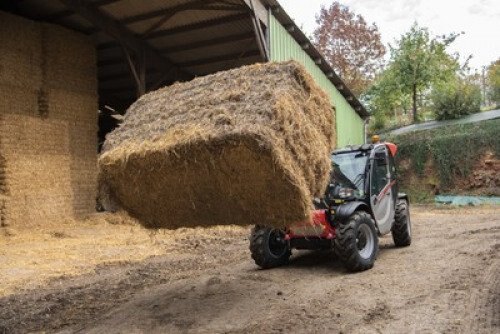

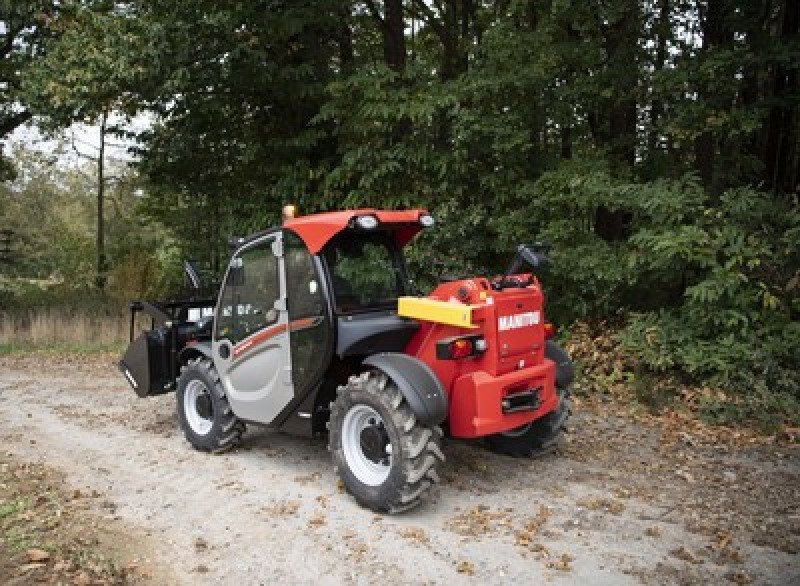

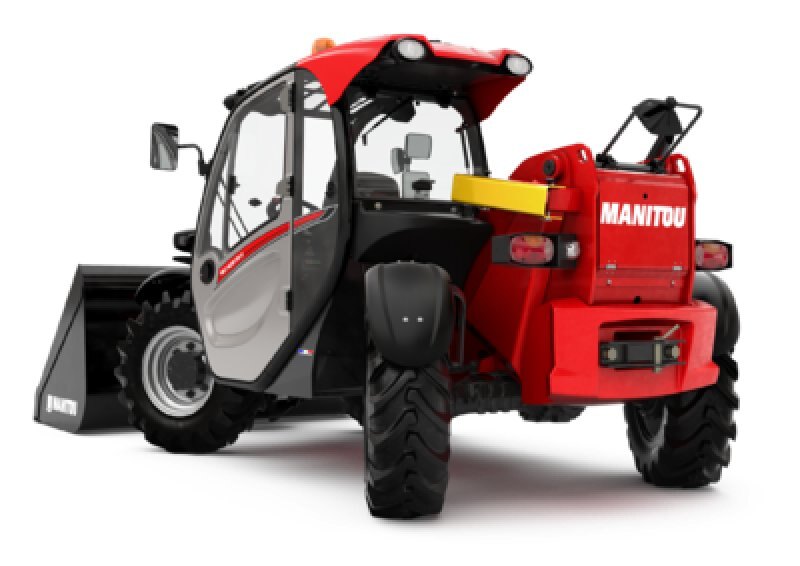

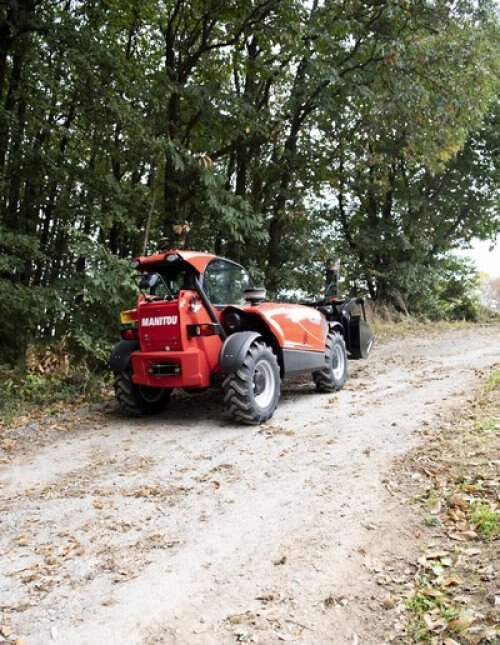

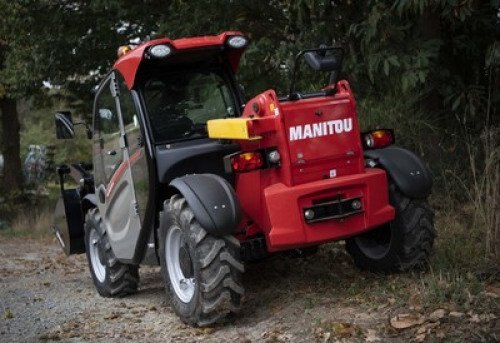

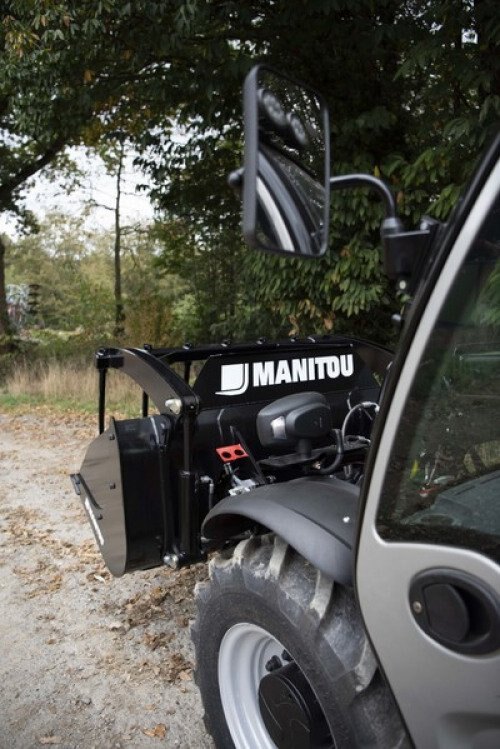

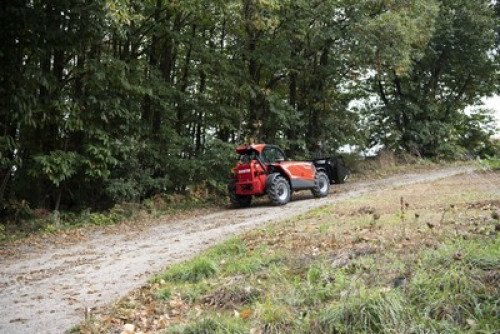

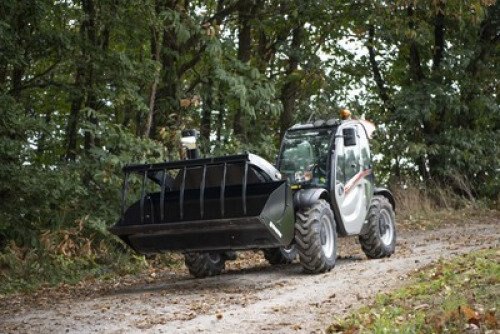

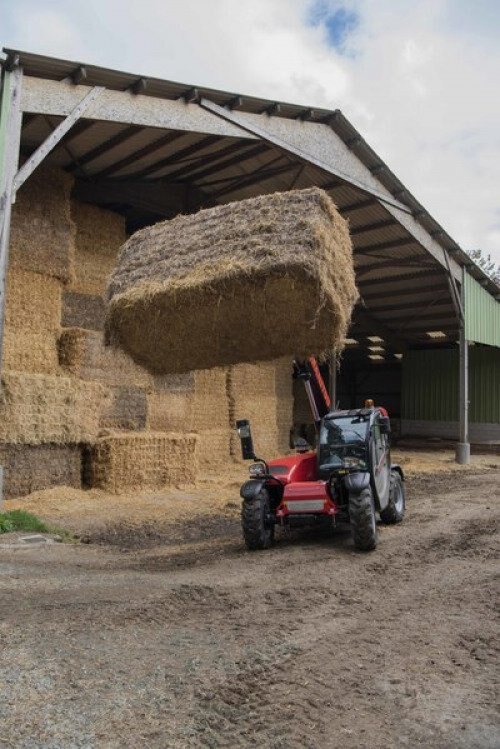

The MLT 625-75 H is an incredibly compact machine. Specially designed for agricultural activities, it will prove to be an asset on your farm for tackling daily handling needs. Its compact dimensions ensure unparalleled maneuverability for access to smaller buildings and tight spaces. The comfort of the driver's cab, full 360° visibility and JSM (Joystick, Switch & Move) control are just some of the features that make working days safer and less exhausting. The Easy Connect System (ECS) makes swapping boom tip attachments easy and the sheer number available provides you with the versatility your farm requires. Hydraulic movements are precise and smooth and 4 driven and steered wheels combined with 4 steering modes optimize unit flexibility, regardless of the situation.

Specifications
Model
MLT 625-75 H
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Manitou
Fuel Tank
63 l
Wheelbase
2.30 m
Engine Norm
Stage V
Engine Brand
Kubota
Hydraulic Oil
115 l
Max. Capacity
2500 kg
Overall Width
1.81 m
Overall Height
2 m
Reversible Fan
Standard
Ground Clearance
0.38 m
Overall Cab Width
0.80 m
Engine Cooling System
2 radiators water + hydraulic oil
Max. Torque / Engine Rotation
265 Nm @1400 rpm
I.C. Engine Power Rating / Power (kW)
57 Hp / 42 kW
Number Of Cylinders - Capacity Of Cylinders
4 - 3331 cm³
technical features

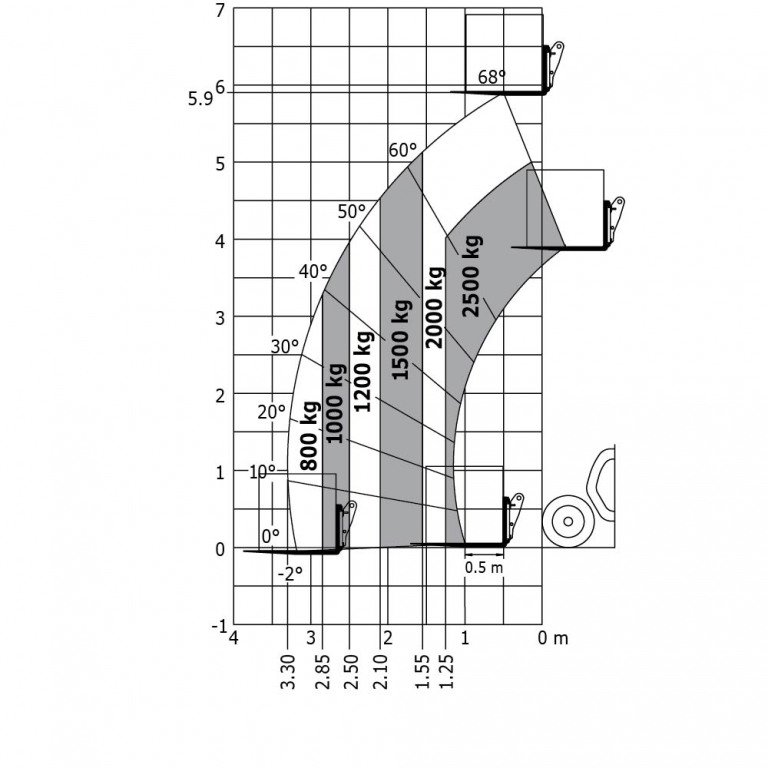

 Rough terrain load chart (EN 1459 B) Metric

Manitou MLT 625 75 H
