ID # 15938975

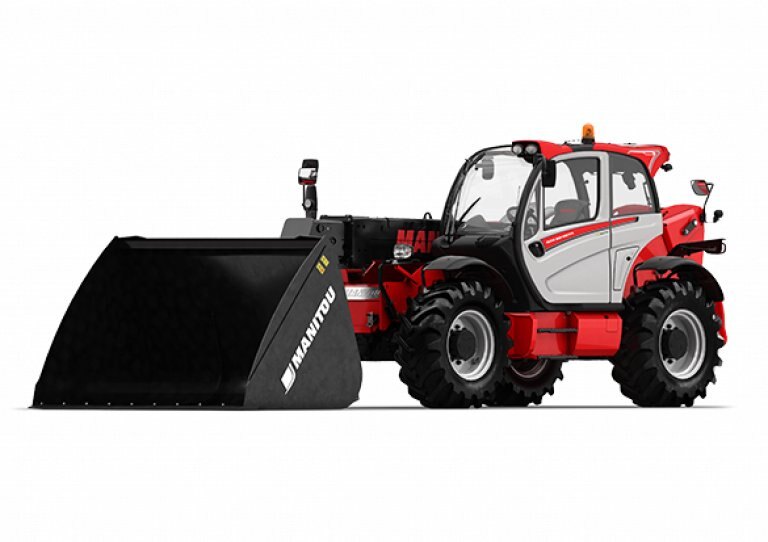

Manitou MLT 961-145 V+ L

  • Manitou MLT 961 145 V+ L
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

The MLT 961-145 V+ is a specially designed telehandler for heavy-duty activities. The 141 hp John Deere (Stage IV / Final Tier 4) engine will provide the power and speed you need, with controlled fuel consumption to minimize the impact your machine has on the environment. The CVT (Continuously Variable Transmission) ensures smoothness while maintaining torque. The reinforced oil-bath immersed brakes ensure a long braking life, whilst the automatic radiator unclogging system reverses airflow for constant optimum cooling, particularly in dusty environments.Maximum travel speed adjustment and mode selectors (standard or maintenance) let you choose controls that meet your needs and provide comfort and security. The inching pedal helps you precisely and smoothly approach and grab loads, whilst the driver's cab air and watertightness (pressurisation optional), JSM (Joystick Switch & Move) controls and adjustable elements accommodate all shapes and sizes so the operator remains comfortable when working long hours.
  Dimensional drawing
                        MLT 961-145 V+ L                   MLT 961-145 V+ L
MLT 961-145 V+ L
MT 1840 A

Load chart

       Rough terrain load chart (EN 1459 B) Metric                                                             Industrial load chart (EN 1459 A) Metric

MLT 961-145 V+ L                              MLT 961-145 V+ L



Specifications
Model
MLT 961-145 V+ L
Category Name
Equipment
Year
2020
Sale Type
New
Manufacturer
Manitou
Fuel Tank
135 l
Wheelbase
3 m
Engine Norm
Stage IV / Tier 4 Final
Engine Brand
John Deere
Engine Model
PWL 4045
Hydraulic Oil
153 l
Max. Capacity
6000 kg
Max. Outreach
5.3 m
Overall Width
2.48 m
Parking Brake
Automatic Negative Hand-brake
Overall Height
2.53 m
Ground Clearance
0.45 m
Overall Cab Width
1 m
Transmission Type
M-Vario Plus
Engine Cooling System
3 radiators water + intercooler + hydraulic oil
Hydraulic Flow - Pressure
200 l/min - 270 Bar
Max. Torque / Engine Rotation
540 Nm/m @1500 tr/min
I.C. Engine Power Rating / Power (kW)
141 Hp / 104 kW
Overall Length To Carriage (with Hitch)
6.1 m
Number Of Cylinders - Capacity Of Cylinders
4 - 4500 cm³
