ID # 15938971

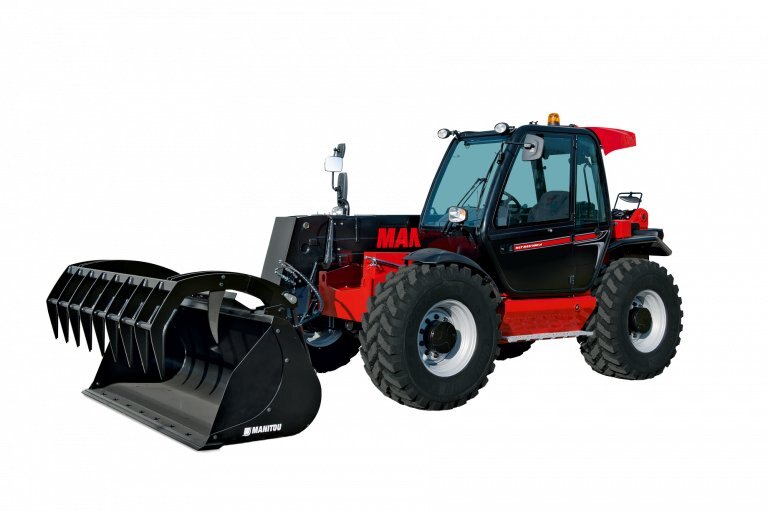

Manitou MLT 845-100 H

  • Manitou MLT 845 100 H
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Do you manage a large farm or co-op? Then the MLT 845 100 H was designed with you in mind! Versatile and efficient, this machine is capable of performing all of your agricultural handling tasks. The 2-part boom and reinforced bridges mean you've got a sturdy and robust handler ready to take on anything that comes its way during the day's work.At only 2.5 m wide, this compact machine navigates tight and narrow spaces easily and has a lifting capacity of 4.5 tonnes up to a height of 7.55 m. It's also equipped with a hydraulic variable displacement pump so movement is as smooth and precise as possible.
  Dimensional drawing
            MLT 845-100 H                             MLT 845-100 H
MLT 845-100 H
MT 1840 A

Load chart

       Rough terrain load chart (EN 1459 B) Metric

MLT 845-100 H



Specifications
Model
MLT 845-100 H
Category Name
Equipment
Year
2020
Sale Type
New
Manufacturer
Manitou
Fuel Tank
135 l
Wheelbase
2.77 m
Engine Norm
Stage IV
Engine Brand
Deutz
Engine Model
TCD 3.6 l
Hydraulic Oil
131 l
Max. Capacity
4500 kg
Max. Outreach
4.57 m
Overall Width
2.42 m
Parking Brake
Automatic negative parking brake
Overall Height
2.58 m
Standard Tyres
Alliance - A580 - 460/70 R24 159A8
Ground Clearance
0.45 m
Overall Cab Width
0.95 m
Transmission Type
Hydrostatic
Engine Cooling System
3 radiators water + intercooler + hydraulic oil
Max. Torque / Engine Rotation
410 Nm/m @1600 tr/min
I.C. Engine Power Rating / Power (kW)
101 Hp / 74.4 kW
Overall Length To Carriage (with Hitch)
5.22 m
Number Of Cylinders - Capacity Of Cylinders
4 - 3600 cm³
