ID # 15937560

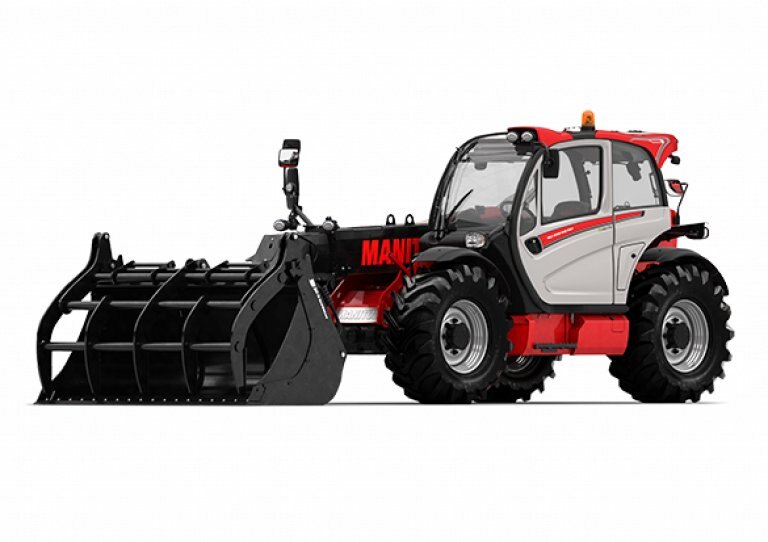

Manitou MLT 840-145 PS+

  • Manitou MLT 840 145 PS+
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

The MLT 840-145 PS is a telehandler dedicated to agricultural activities. Agricultural tyres, high ground clearance, excellent traction capacity and high hydraulic flow rate make this truck a real boon for all your day-to-day operational tasks. We know that you will be spending long periods of time in your telehandler, and for that reason we have created a soundproofed cabin (74 dB), with a JSM joystick mounted on a floating armrest, roomy cabin interior, and automatic alignment of the wheels, all designed to give you the comfort you deserve. The 141 hp engine meets Stage IV / Tier 4 Final standards. The M-Shift 5-speed gearbox gives you smooth gear changes and selects the optimal gear in automatic mode. The Lock-up function applies a direct lock to the torque converter and improves the efficiency of your machine, increasing its drawbar pull and reducing fuel consumption. The electronically regulated cooling system controls the fan speed according to engine temperature; the air flow inverter allows your telehandler to breathe under all conditions, enabling you to reduce your fuel consumption while ensuring that cooling is always optimal.
  Dimensional drawing
            MLT 630-105 ST4                             MLT 630-105 ST4
MLT 630-105 ST4
MT 1840 A

Load chart

       Rough terrain load chart (EN 1459 B) Metric

MLT 840-145 PS+



Specifications
Model
MLT 840-145 PS+
Category Name
Equipment
Year
2020
Sale Type
New
Manufacturer
Manitou
Fuel Tank
126 l
Wheelbase
2.88 m
Engine Norm
Stage IV / Tier 4 Final
Engine Brand
John Deere
Engine Model
PWL4045
Hydraulic Oil
156 l
Max. Capacity
4000 kg
Max. Outreach
4.45 m
Overall Width
2.39 m
Parking Brake
Automatic negative parking brake
Overall Height
2.39 m
Standard Tyres
Trelleborg - TH400 - 460/70 R24 159A8
Ground Clearance
0.43 m
Overall Cab Width
1 m
Transmission Type
Torque Converter
Engine Cooling System
4 radiators (water + intercooler + hydraulic oil + transmission oil)
Max. Torque / Engine Rotation
540 Nm/m @1600 tr/min
I.C. Engine Power Rating / Power (kW)
141 Hp / 104 kW
Overall Length To Carriage (with Hitch)
5.37 m
Number Of Cylinders - Capacity Of Cylinders
4 - 4500 cm³
