ID # 15937256

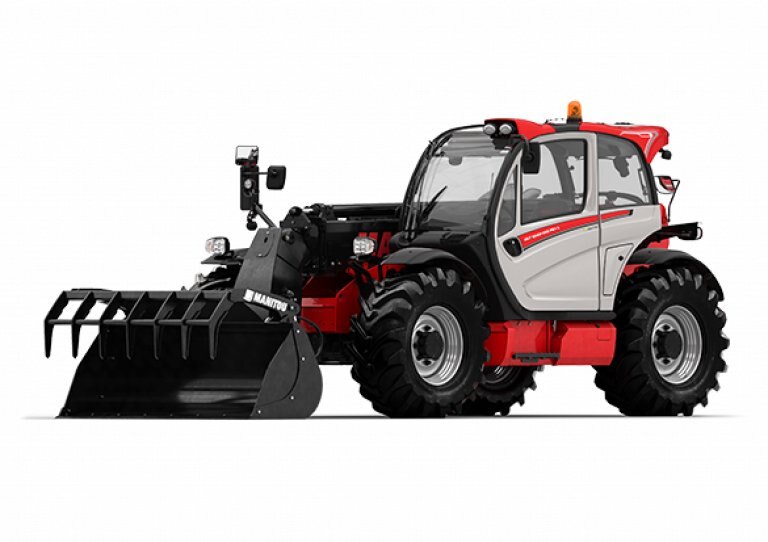

Manitou MLT 1040-145 PS+ L

  • Manitou MLT 1040 145 PS+ L
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

If you are looking for the perfect combination of power and productivity for your agricultural activities, the MLT 1040-145 PS L truck (with frame levelling) is the perfect machine for you. Fitted with the JSM (Joystick Switch & Move), automatic wheel alignment and exceptional cabin soundproofing (74 dB), it offers you comfort and reduces fatigue. The lifting height of 10 m means that you can optimise your floor space and store items high up inside your buildings. The numerous attachments available and the high ground clearance make this a versatile truck that is easy to manoeuvre on all types of terrain. The 141 hp engine, combined with the Powershift 5-speed gearbox allows you to change gear smoothly. To reduce fuel consumption, there is an electronically regulated cooling system which controls the fan speed and reverses the air flow according to the engine temperature.
  Dimensional drawing
            MLT 1040-145 PS+ L                           MLT 1040-145 PS+ L
MLT 1040-145 PS+ L
MT 1840 A

Load chart

       Rough terrain load chart (EN 1459 B) Metric

MLT 1040-145 PS+ L



Specifications
Model
MLT 1040-145 PS+ L
Category Name
Equipment
Year
2020
Sale Type
New
Manufacturer
Manitou
Gearbox
M-Shift
Fuel Tank
126 l
Wheelbase
2.88 m
Engine Norm
Stage IV / Tier 4 Final
Engine Brand
John Deere
Engine Model
PWL 4045
Hydraulic Oil
156 l
Max. Capacity
4000 kg
Max. Outreach
6.55 m
Overall Width
2.39 m
Service Brake
Oil-immersed multi-discs on front & rear axles
Overall Height
2.38 m
Standard Tyres
Trelleborg - TH400 - 460/70 R24 159A8
Ground Clearance
0.42 m
Overall Cab Width
1 m
Engine Cooling System
4 radiators (water + intercooler + hydraulic oil + transmission oil)
Max. Torque / Engine Rotation
540 Nm/m @1600 tr/min
I.C. Engine Power Rating / Power (kW)
141 Hp / 104 kW
Overall Length To Carriage (with Hitch)
5.17 m
Number Of Cylinders - Capacity Of Cylinders
4 - 4500 cm³
