ID # 15937087

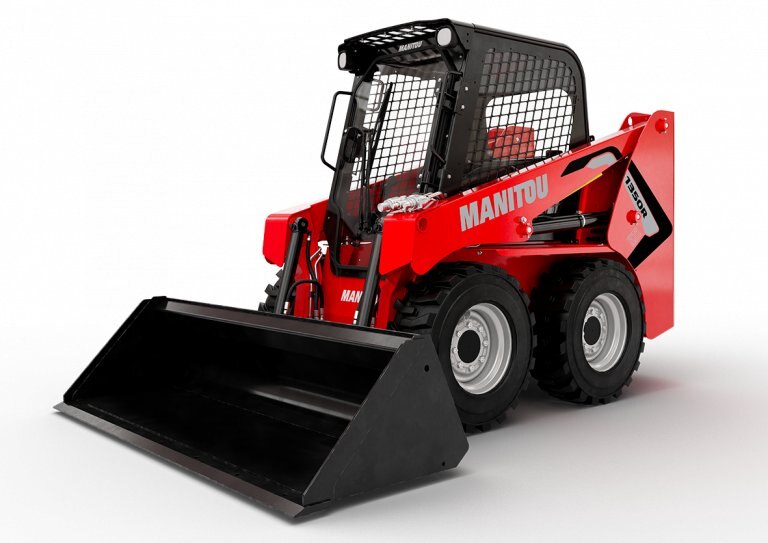

Manitou 1350 R NXT2

  • Manitou 1350 R NXT2
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview


  Dimensional drawing

                1350 R NXT2                       1350 R NXT2

          1350 R NXT2
MT 1840 A



Specifications
Model
1350 R NXT2
Category Name
Equipment
Year
2020
Sale Type
New
Manufacturer
Manitou
Battery
12 V
Fuel Tank
59.40 l
Bucket Width
1372 mm
Displacement
2.20 l
Engine Brand
Yanmar
Engine Model
4TNV88C-KMS
Unladen Weight
2384 kg
Coolant Capacity
7.90 l
Ground Clearance
203 m
Gross Power (kW)
34.3 kW
Auxiliary Hydraulics
63.6 l/min
Travel Speed (unladen)
12.9 km/h
Overall Length With Bucket
3076 mm
Auxiliary Hydraulic Pressure
207 Bar
Overall Length - Less Bucket
2360 mm
Reservoir Capacity Hydraulics
34.80 l
Max. Torque / Engine Rotation
146.2 Nm/m / 2800 tr/min
Rated Operating Capacity With Optional Counterweight
680 kg
