ID # 15937056

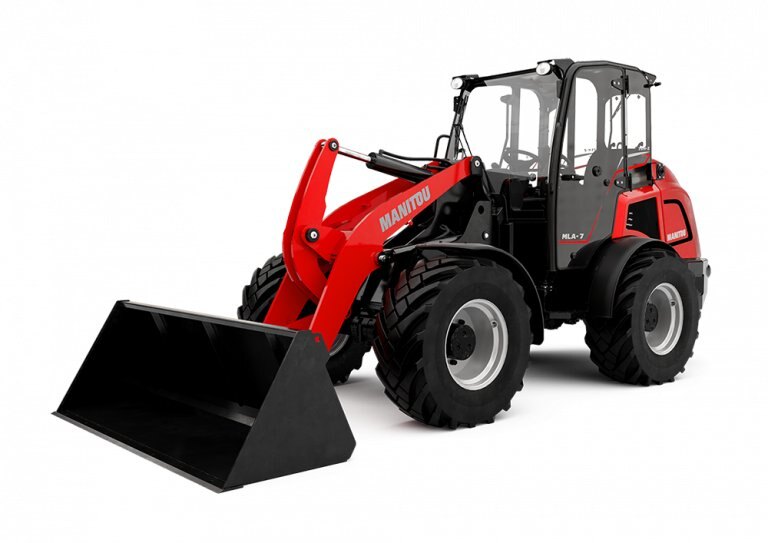

Manitou MLA 7-75 H-Z

  • Manitou MLA 7 75 H Z
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

<div>The Manitou MLA 7-75 is the biggest wheel loader in the range with a standard lift arm. Like all his smaller brothers, this machine did not make compromises in terms of comfort and performance ! The hydrostatic transmission is smooth at low speed and very powerful in demanding circumstances. With gearshift and 100 % diff lock controls on the joystick, the operator is always in total control. With optional 30 kph and lift arm suspension, the MLA 7-75 will bring you in full comfort from 1 jobsite to another. The Z-kinematic gives you the extra break-out force, return to dig and parallel guidance. Whether in agricultural or in construction environment, this wheel loader is at its best in tough conditions and never lets you down.</div>

  Dimensional drawing

            MLA 6-65 H-Z                             MLA 6-65 H-Z

MLA 6-65 H-Z
MT 1840 A



Specifications
Model
MLA 7-75 H-Z
Category Name
Equipment
Year
2020
Sale Type
New
Manufacturer
Manitou
Fuel Tank
102 l
Wheelbase
2.06 m
Engine Brand
Deutz
Engine Model
TD_3_6_L4
Hydraulic Oil
74 l
Parking Brake
Manual
Ground Clearance
0.31 m
Transmission Type
Hydrostatic
Environmental Norm
Stage 3B
Hydraulic Pump Type
Gear pump
Engine Cooling System
2 radiators water + hydraulic oil
Overall Height With Cab
2.48 m
Safety Cab Homologation
Cab ROPS - FOPS Level 1
Overall Width (over Tyres)
1.74 m
Max. Torque / Engine Rotation
330 Nm/m / 1600 tr/min
Drive Hydraulic System Pressure
380 Bar
Number Of Gears (forward / Reverse)
2 / 2
I.C. Engine Power Rating / Power (kW)
74.3 Hp / 55.4 kW
Overall Length To Carriage (without Hitch)
4.44 m
Number Of Cylinders / Capacity Of Cylinders
4 - 3600 cm³
