ID # 15933158

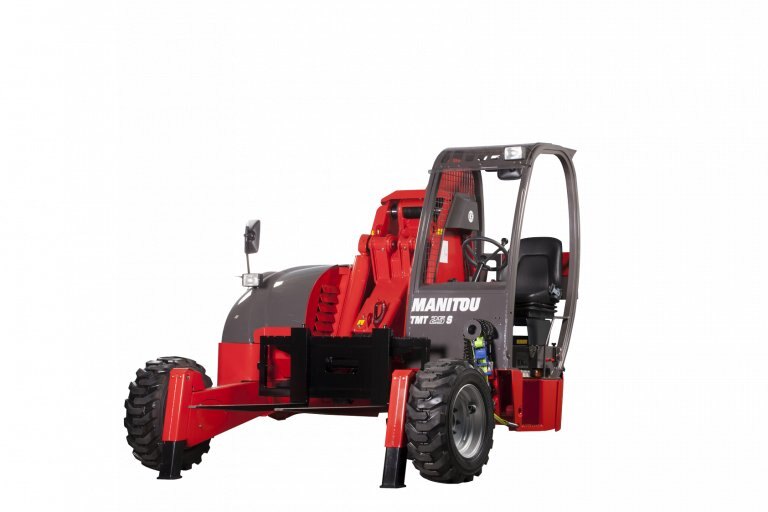

Manitou TMT 55 HT

  • Manitou TMT 55 HT
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

The TMT 55 HT is a truck-mounted forklift designed so logistics professionals can deliver shipments to customers who do not have paved road access on their sites or who do not have a unloading bay.The robustly designed telescopic boom, engine power, and intelligent load chart allow you to load and unload lorries from a single side. Incredibly compact and with minimum payload, it is greatly appreciated by users for its ease of use. It also features improved traction unmatched visibility to clear entrances as as 96.5 inches (2,45m) high while carrying a fuel load of materials.
  Dimensional drawing

     TMT 55 HT                                 TMT 55 HT

TMT 55 HT

Load chart

           Machine on stabilizers with forks Metric                                                   Machine on tyres with forks Metri

        TMT 55 HT                                         TMT 55 HT                          .
MT 1840 A



Specifications
Model
TMT 55 HT
Category Name
Equipment
Year
2020
Sale Type
New
Manufacturer
Manitou
Max. Reach
1310 mm
Rated Speed
2700 tr/min
Manufacturer
Manitou
Power Source
Diesel
Max. Capacity
2500 kg
Operator Type
Seated
Overall Width
2.57 m
Service Brake
Hydrostatic
Service Weight
2660 kg
Engine Brand / Norm
Kubota - Tier IV Final
Max. Lifting Height
3430 mm
Reach Out Equipment
Telescopic boom
Travel Speed (laden)
11 km/h
Capacity Of Cylinders
2434 cm³
Length To Face Of Forks
2.85 m
Dimensions Of Rear Wheels
31 x 15,5 - 15"
Dimensions Of Front Wheels
31 x 15,5 - 15"
Drive Wheels (front / Rear)
2 / 1
Engine Power According To ISO 1585
37 kW
Number Of Front Wheels / Rear Wheels
3 / 1
