Manitou

ID # 15927571

Manitou MSI 35 3B - FT4

Call for Price
Overview

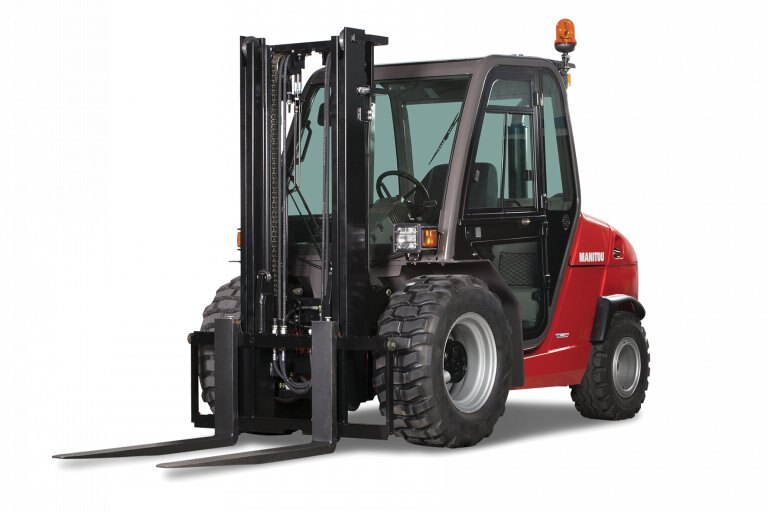

 MSI 35 3B - FT4

The MSI 35 is a one-of-a-kind forklift truck perfect for handling longer or heavier loads up to 3.5 tonnes. It comes equipped with two-wheel drive and can be fitted with a wide range of tyres and attachments for incredible versatility. The hydrostatic transmission enhances precision and positioning when approaching loads for improved performance.The suspended driver's cab absorbs vibrations during operations, for maximum comfort over the course of a shift. A spacious working area includes ergonomic commands, and access is made easy with a large footstep and handle grip.

  Dimensional drawing

     MSI 25 3B - FT4

MSI 25 3B - FT4
MT 1840 A



Specifications
Model
MSI 35 3B - FT4
Category Name
Equipment
Year
2020
Sale Type
New
Manufacturer
Manitou
Wheelbase
1800 mm
Model Name
MSI 35 3B - FT4
Tyres Type
Pneumatic
Rated Speed
2700 tr/min
Manufacturer
Manitou
Power Source
Diesel
Max. Capacity
3500 kg
Operator Type
Seated
Overall Width
1323 mm
Service Brake
Hydraulic
Overall Length
4130 mm
Service Weight
4845 kg
Engine Brand / Model
Kubota / V2403 CR TE4
Load Centre Of Gravity
500 mm
Number Of Drive Wheels
2
Dimensions Of Rear Wheels
7.00x12 14PR
Dimensions Of Front Wheels
275/70 R22,5
Number Of Front Wheels / Rear Wheels
2 / 2
Load Distance, Centre Of Drive Axle To Fork
630 mm
Number Of Cylinders / Capacity Of Cylinders
4 - 2434 cm³
