Manitou

ID # 15927558

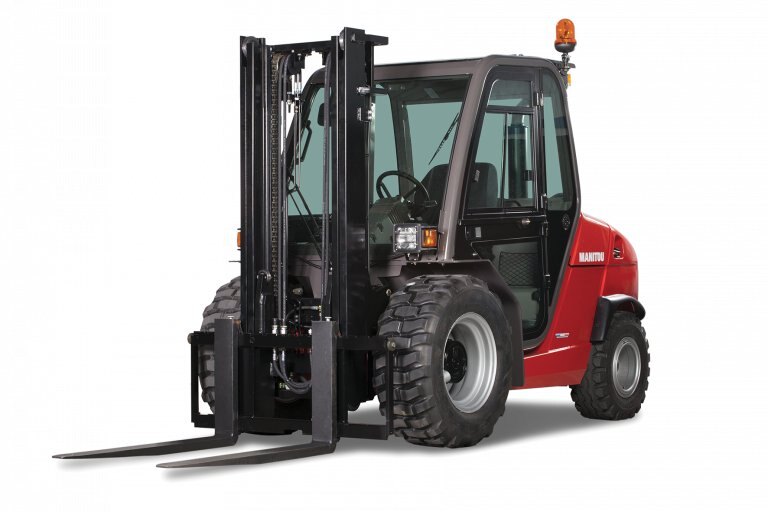

Manitou MSI 25 3B - FT4

Call for Price
Overview

 MSI 25 3B - FT4

The MSI 25 is a versatile masted forklift truck, unique amongst its kind. It is designed specifically for the timber, paper and recycling sectors and can even find uses within the logistics sector. The hydrostatic transmission combined with the powerful engine and two driven, large-diameter wheels all ensure precise, smooth operation.The MSI 25 comes equipped with a steering axle with an integrated cylinder for a sharper turning radius, allowing for more efficient manoeuvring, to answer the ages old question of how to improve work site productivity on a daily basis. With the large number of attachments available this versatile machine becomes even more so, capable of handling loading, unloading and storing onger loads. Standard maximum capacity is 2.5 tonnes, and can be equipped with masts to reach up to 7 m in lift height.

  Dimensional drawing

     MSI 25 3B - FT4

MSI 25 3B - FT4
MT 1840 A



Specifications
Model
MSI 25 3B - FT4
Category Name
Equipment
Year
2020
Sale Type
New
Manufacturer
Manitou
Wheelbase
180 mm
Model Name
MSI 25 3B / FT4
Tyres Type
Pneumatic
Rated Speed
2700 tr/min
Manufacturer
Manitou
Power Source
Diesel
Max. Capacity
2500 kg
Operator Type
Seated
Overall Width
1323 mm
Service Brake
Hydraulic
Overall Length
4045 mm
Service Weight
4070 kg
Load Centre Of Gravity
500 mm
Number Of Drive Wheels
2
Dimensions Of Rear Wheels
7.00x12 14PR
Dimensions Of Front Wheels
275/70 R22,5
Engine Brand / Model / Norm
Kubota / V2403 CR TE4 / Stage 3B / Tier IV Final
Height Of Overhead Guard (cabin)
2430 mm
Number Of Front Wheels / Rear Wheels
2 / 2
Load Distance, Centre Of Drive Axle To Fork
625 mm
Documents
