Manitou

ID # 15927547

Manitou MI 70 D

Call for Price
Overview

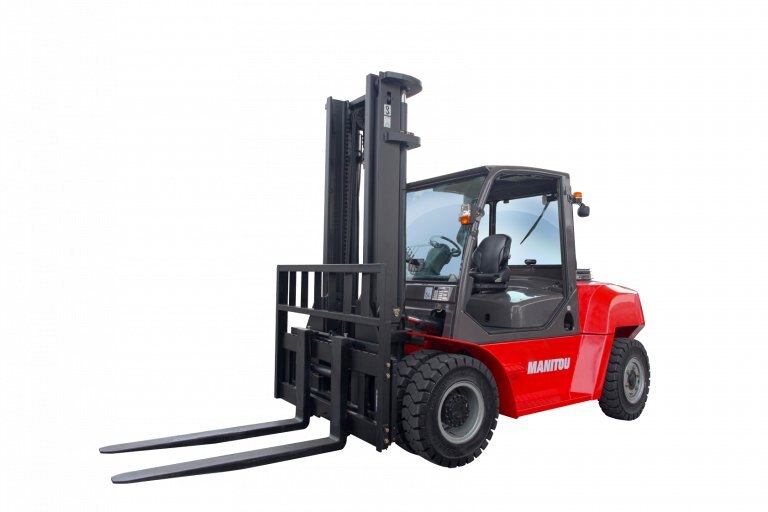

 MI 70 D

With a maximum capacity of 7 tonnes and a lift height of 7 m, the MI 70 D is a heat engine-powered forklift capable of providing solutions to a wide range of applications faced by handling professionals. Suited to handling loads on solid travelling surfaces and with the suspended driver's seat, power steering and an ergonomic work space capable of adapting to all of your operators' needs, it'll quickly become one of your most popular machines.Mechanics can save time with easy access to the key maintenance points. With its simplified design and robust components, the MI 70 D is one industrial forklift that's built to last.

  Dimensional drawing

     MI 25 G

MI 25 G
MT 1840 A



Specifications
Model
MI 70 D
Category Name
Equipment
Year
2020
Sale Type
New
Manufacturer
Manitou
Wheelbase
2300 mm
Model Name
MI 70 D
Tyres Type
Pneumatic
Rated Speed
2200 tr/min
Manufacturer
Manitou
Power Source
Diesel
Max. Capacity
7000 kg
Operator Type
Seated
Overall Width
1990 mm
Service Brake
Hydraulic
Overall Length
4804 m
Service Weight
10110 kg
Engine Brand / Model
Deutz / TCD 3.6L 4
Load Centre Of Gravity
600 mm
Number Of Drive Wheels
4
Dimensions Of Rear Wheels
8.25-15-14PR
Dimensions Of Front Wheels
8.25-15-14PR
Height Of Overhead Guard (cabin)
2430 mm
Number Of Front Wheels / Rear Wheels
4 / 2
Load Distance, Centre Of Drive Axle To Fork
603 mm
