Manitou

ID # 15927477

Manitou MH 25 3B - FT4

Call for Price
Overview

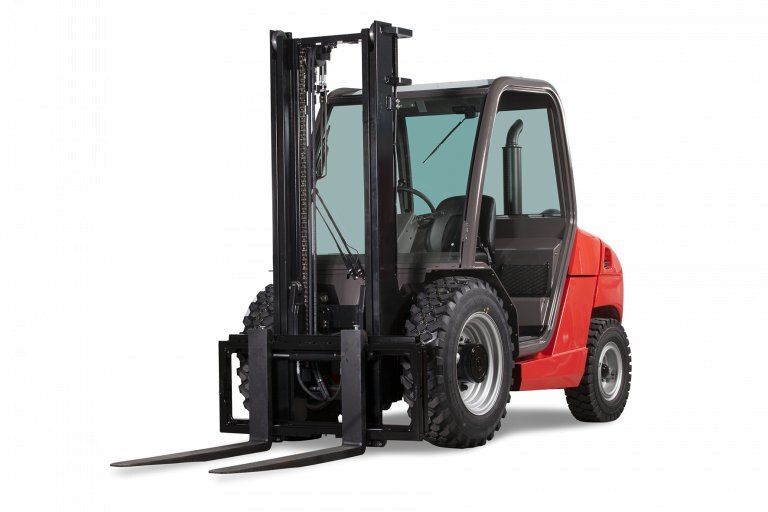

 MH 25 3B - FT4

The MH 25 is a versatile forklift truck with unrivalled efficiency, regardless of the ground conditions. It comes equipped with 4-wheel drive and a generous ground clearance, so uneven terrain won't be a problem. Both compact and powerful, you can store and handle loads of up to 2.5 tonnes even in cluttered environments.The spacious suspended driver's cab keeps you comfortable to reduce the effects of fatigue over shifts. Access is made easier with both sides opening up and a larger handle grip whilst the relatively low bottom step makes climbing into the driver's seat a breeze.

  Dimensional drawing

        MH 25

MH 25
MT 1840 A



Specifications
Model
MH 25 3B - FT4
Category Name
Equipment
Year
2020
Sale Type
New
Manufacturer
Manitou
Battery
0 V
Wheelbase
1800 mm
Model Name
MH 25 3B - FT4
Tyres Type
Inflatable
Manufacturer
Manitou
Power Source
Diesel
Max. Capacity
2500 kg
Operator Type
Seated
Overall Width
1450 mm
Service Brake
Hydraulic
Overall Length
4045 mm
Service Weight
4260 kg
Engine Brand / Model
Kubota / V2403 CR TE4
Load Centre Of Gravity
500 mm
Number Of Drive Wheels
4
Dimensions Of Rear Wheels
27,10 - 12 IC 30 14PR
Dimensions Of Front Wheels
280/80 R20 XMCL27,10 - 12 IC 30 14PR
Height Of Overhead Guard (cabin)
2105 mm
Number Of Front Wheels / Rear Wheels
2 / 2
Load Distance, Centre Of Drive Axle To Fork
625 mm
