Manitou

ID # 15927397

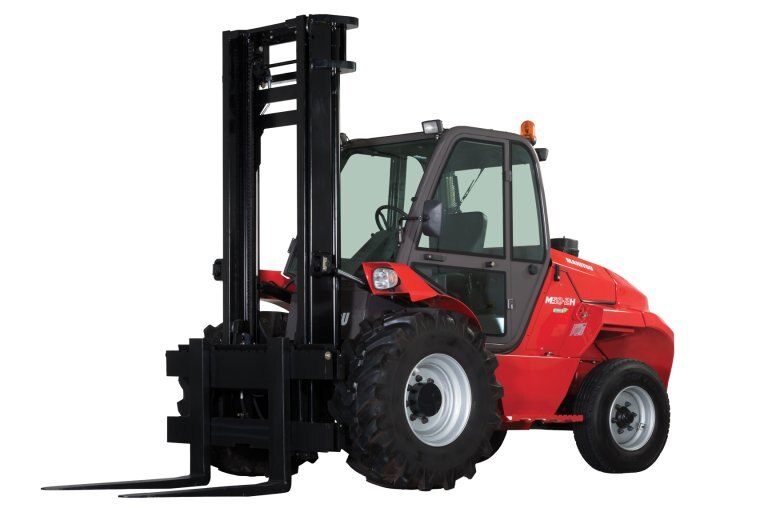

Manitou M 50-4

Call for Price
Overview

 M 50- 4

The M 50-4 forklift truck is designed for activities which need to be performed on rough terrain or where obstacles are present. With 4-wheel drive, 36 cm ground clearance and a turning radius of 3.4 m, this machine offers excellent manoeuvrability regardless of the circumstances. And for even better adaptation to the various types terrain faced, a wide range of tyres is available for optimal performance.The driver's cab is accessible from both sides and offers a spacious working area with ergonomic controls. And with full 360° surround view, ground team safety is enhanced as well.

  Dimensional drawing

             M 30-2

M 30-2
MT 1840 A



Specifications
Model
M 50-4
Category Name
Equipment
Year
2020
Sale Type
New
Manufacturer
Manitou
Wheelbase
2120 mm
Model Name
M 50-4
Tyres Type
Pneumatic
Rated Speed
2200 tr/min
Manufacturer
Manitou
Power Source
Diesel
Max. Capacity
5000 kg
Operator Type
Seated
Overall Width
2080 mm
Service Brake
Hydraulic
Overall Length
4948 mm
Service Weight
8325 kg
Number Of Cylinders
4
Engine Brand / Model
Perkins / 854F-E34T WF
Load Centre Of Gravity
600 mm
Number Of Drive Wheels
4
Engine Power According To ISO 1585
55 kW
Number Of Front Wheels / Rear Wheels
2 / 2
Overall Height Of Standard Overhead Guard
2500 mm
Load Distance, Centre Of Drive Axle To Fork
773 mm
