Manitou

ID # 15927186

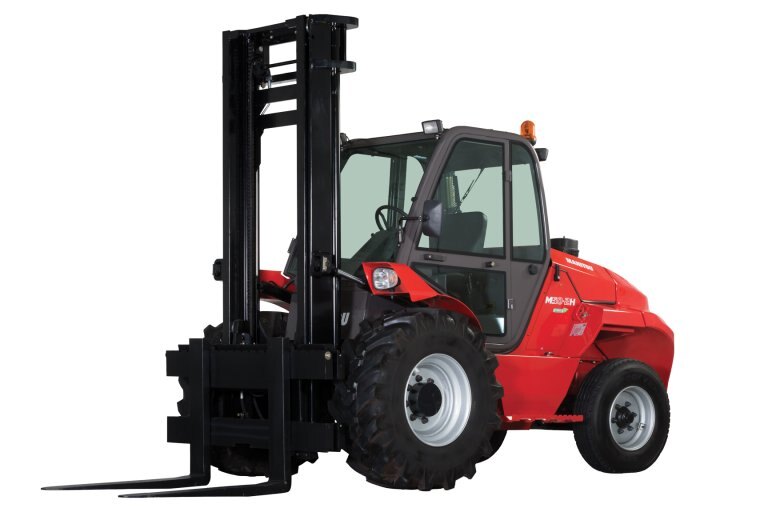

Manitou M 40-2

Call for Price
Overview

 M 40 -2

The M 40-2 forklift truck can handle even the roughest terrain. It was designed with the construction, timber and mining sectors in mind, where adaptability to challenging ground conditions is crucial. With a 36 cm ground clearance and a 75 hp engine, stability and manoeuvrability is ensured at all times, with a maximum load capacity of 4 tonnes.The wide range of tyres available for this machine allows you to increase performance based on the specific needs of the site. Maintenance for this robust little machine is made easy for operators, with all key parts being kept under the bonnet for quick access for a longer service life.

  Dimensional drawing

             M 30-2

M 30-2
MT 1840 A



Specifications
Model
M 40-2
Category Name
Equipment
Year
2020
Sale Type
New
Manufacturer
Manitou
Wheelbase
2060 mm
Model Name
M 40-2
Tyres Type
Pneumatic
Rated Speed
2200 tr/min
Manufacturer
Manitou
Power Source
Diesel
Max. Capacity
4000 kg
Operator Type
Seated
Overall Width
2057 mm
Service Brake
Hydraulic
Overall Length
4858 mm
Service Weight
6915 kg
Load Centre Of Gravity
500 mm
Number Of Drive Wheels
2
Engine Brand / Model / Norm
Perkins / 854F-E34T WF / Stage 3B
Engine Power According To ISO 1585
55 kW
Number Of Front Wheels / Rear Wheels
2 / 2
Overall Height Of Standard Overhead Guard
2460 mm
Load Distance, Centre Of Drive Axle To Fork
763 mm
Number Of Cylinders / Capacity Of Cylinders
4 - 3400 cm³
