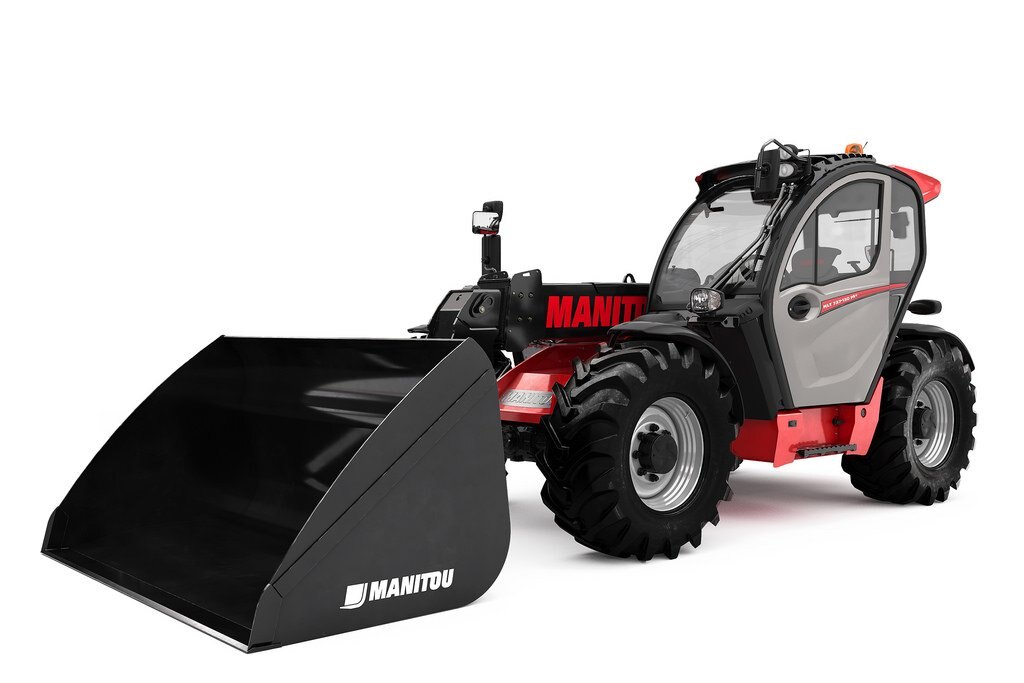

Manitou MLT 737-130 PS+

  • Manitou MLT 737 130 PS+
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Are you looking for a machine that offers you efficiency, performance and comfort? The MLT 737-130 PS+ was made with you in mind! Dedicated to agricultural material handling, it has a lifting height of 6.88 m and a lifting capacity of 3.7 t.
Designed for Comfort: this machine offers a completely new cab, with the benefit of easy access, optimal visibility, a JSM® (Joystick Switch and Move) mounted on a floating armrest, Double Switch Buttons (DSB) and soundproofing ideal for long periods of use.
Designed for Performance: this machine gives you exceptional results thanks to its 129 hp Deutz engine and Powershift Plus transmission. Its limited slip differential, ground clearance of 41 cm and automatic dust removal system for the radiators are perfectly adapted to intensive agricultural use. A wide choice of tyres is also offered in order to optimize your productivity in every work environment. The brand new hydraulic functions and the variable piston pump of 150l/min are guaranteeing unmatched productivity and performance levels.
Designed for Cost-Efficiency: the MLT 737-130 PS+ has been specifically designed to reduce the Total Cost of Ownership (TCO) of the machine, by decreasing fuel consumption by 5 % and by optimizing machine maintenance (longer service intervals, central greasing points…). Manitou also offers you the connected solution Easy Manager, allowing you to manage, optimize and secure your machine’s use and maintenance. All these features thus help you maximize the residual value of your telehandler.
  Standard equipments
  • Front and rear work lights (x4: 2 front + 2 rear)
  • Self cleaning air prefilter
  • Hydraulic trailer brake
  • Tuner car radio (50 W)
  • "Harmony" display
  • Easy Connect System (ECS)
  • Lateral wiper
  • Mechanical cloth seat (GRAMMER)
  • Manual rotating towing hitch on counterweight
  • Auto reversing fan
  Technical data sheet

Performances
Load chart (EN1459-B) :

Manitou%2F2533883d 50de 42de B661 85cd8b46c15f Ab01m Mlt737 Pfb45n B 0217

Lifting height 6.9 m 22'8"
Lifting capacity 3700 kg 8157 lb
Max reach 3.9 m 12'11"
Lifting time (unladen) 7.6 s
Lowering time (unladen) 5.4 s
Boom extension time (unladen) 7.8 s
Boom retraction time (unladen) 5.9 s
Crowd 3.8 s
Dump 3 s

Dimensions

Length (up to the back of the fork) 4.97 m 16'4"
Wheelbase length 2.81 m 9'2"
Width 2.39 m 7'1"
Height 2.38 m 7'11"
Weight (unladen) 7700 kg 16976 lb
Turning radius 3.92 m 12'1"
Ground clearance 0.41 m 0'2"
  Manitou%2F9381f4ef 0c82 4299 9377 A85387092a84 Vuepg Mlt Newag A 0217   Manitou%2F592a5770 2c3f 4518 8c40 49de0da82c15 Vueds Mlt Newag A 0217
Manitou%2F43b592c1 6fcb 4973 Bdbe 39cee51a6714 Vueav Mlt Newag A 0217

Engine / Battery



Energy Diesel
Engine brand Deutz
Engine type Stage IV / Tier 4 Final
Power 129 ch 129 hp
Power 95 KW
Max. Torque @ Rotation 500 Nm @ 1600 tr/min
Number of cylinders 4
Total capacity 3621 cm3 220 in3
Transmission type Torque converter

Hydraulic



Pressure 270 bars
Hydraulic oil tank volume 135 l 36 gal

Other specifications



Number of wheels (front/rear) 2/2
Number of drive wheels (front/rear) 2/2
Tractor European Conformity Yes
Driving position noise levels 73 dB
Environmental noise levels 105 dB
Vibrations affecting hands/arms <2.5 m/s



Specifications
Model
MLT 737-130 PS+
Category Name
Tractors
Year
2018
Sale Type
New
Manufacturer
Manitou
