ID # 13737418

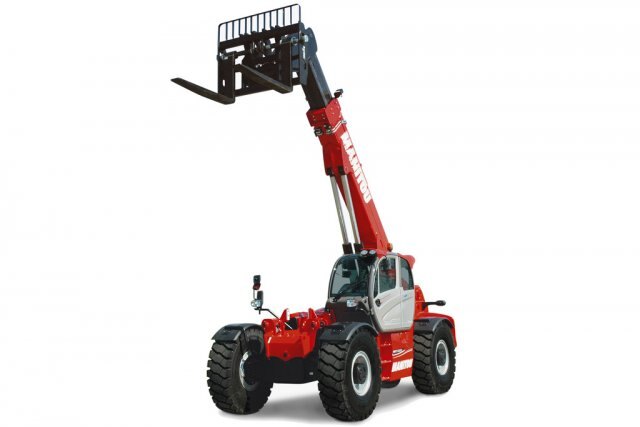

Manitou MHT 10230

  • Manitou MHT 10230
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
The MHT 10230 all-terrain high capacity telehandler is capable of flexibly and safely transporting heavy, larger loads with complete precision. The large number of compatible attachments available make it a truly versatile multi-tool carrier, whilst the ergonomic driver's cab features intuitive controls which can be grasped immediately by the operator.

Comfort and the panoramic view provide optimum working conditions and help contribute to safety during delicate handling operations. You could, for example, transport large pieces of rock or marble at a quarry or handle long components such as steel bars, rails or metallic structures. It's also useful when maintaining mining equipment, changing wheels, replacing cylinders or shifting conveyors.



Specifications
Model
MHT 10230
Category Name
Tractors
Year
2020
Sale Type
New
Manufacturer
Manitou
Fuel Tank
315 l
Engine Oil
211
Engine Norm
Stage IV / Tier 4 Final
Engine Brand
Mercedes
Engine Model
OM 934 LA. E4-3
Wheel Base
3.9 mm
Max. Capacity
23000 kg
Parking Brake
Automatic Negative Hand-brake
Service Brake
Hydraulic
Ground Clearance
0.49 m
Transmission Type
Hydrostatic
Hydraulic Pump Type
Variable pump
Number Of Batteries
2
Engine Cooling System
Water
Load Centre Of Gravity
900 mm
Hydraulic Flow - Pressure
205 l/min - 350 Bar
Battery / Batteries Capacity
12 V / 120 Ah
Forks Length / Width / Section
200 mm x 110 mm x 1800 mm
Number Of Gears (forward / Reverse)
2 / 2
Number Of Cylinders / Capacity Of Cylinders
4 - 5100 cm³
