Manitou

ID # 13737406

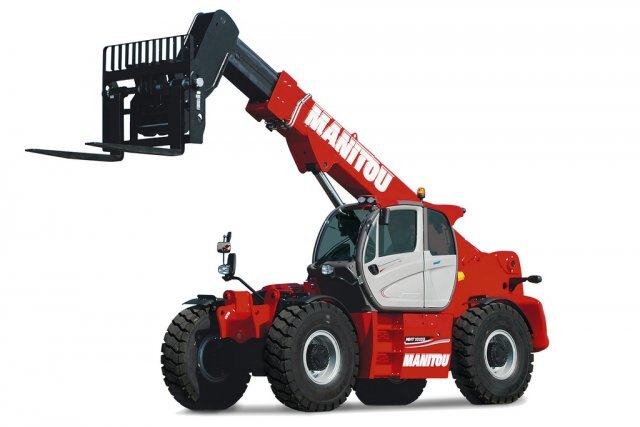

Manitou MHT 10180

Call for Price
Overview

MHT 10180

The MHT 10180 is designed for heavy duty activity, and with a maximum capacity of 18 tonnes it is perfectly capable of handling bulkier, heavier loads. And for improved precision when approaching loads and manoeuvring, this handler comes equipped with a hydrostatic transmission for increased flexibility.Easily manoeuvrable thanks to 4-wheel drive, 3 steering modes a very generous ground clearance, there's no situation this machine can't get out of. It's also compatible with a wide range of attachments for amazing versatility and power regardless of what the workday throws at you.

Dimensional drawing
MHT 10180                 MHT 10180
MHT 10180
Load chart

Machine on tyres with forks LC 600 mm Metric                                                               Machine on tyres with forks LC 1200 mm Metric

MHT 10180                                              MHT 10180

Machine on tyres with jib Metric

MHT 10180

MHT 10180




Specifications
Model
MHT 10180
Category Name
Tractors
Year
2020
Sale Type
New
Manufacturer
Manitou
Engine Oil
21 l
Fuel Tank
315 l
Max. Reach
5.56 m
Engine Norm
Stage IV / Tier 4 Final
Wheel Base
3.75 mm
Engine Brand
Mercedes
Engine Model
OM 934 LA. E4-3
Hydraulic Oil
290 l
Max. Capacity
18000 kg
Parking Brake
Automatic Negative Hand-brake
Service Brake
Hydraulic
Ground Clearance
0.44 m
Transmission Type
Hydrostatic
Number Of Batteries
2
Engine Cooling System
Water
Number Of Rear Wheels
2
Load Centre Of Gravity
600 mm
Battery / Batteries Capacity
12 V / 120 Ah
Forks Length / Width / Section
1200 mm x 200 mm x 80 mm
Number Of Gears (forward / Reverse)
2 / 2
Number Of Cylinders / Capacity Of Cylinders
4 - 5100 cm³
