ID # 13737367

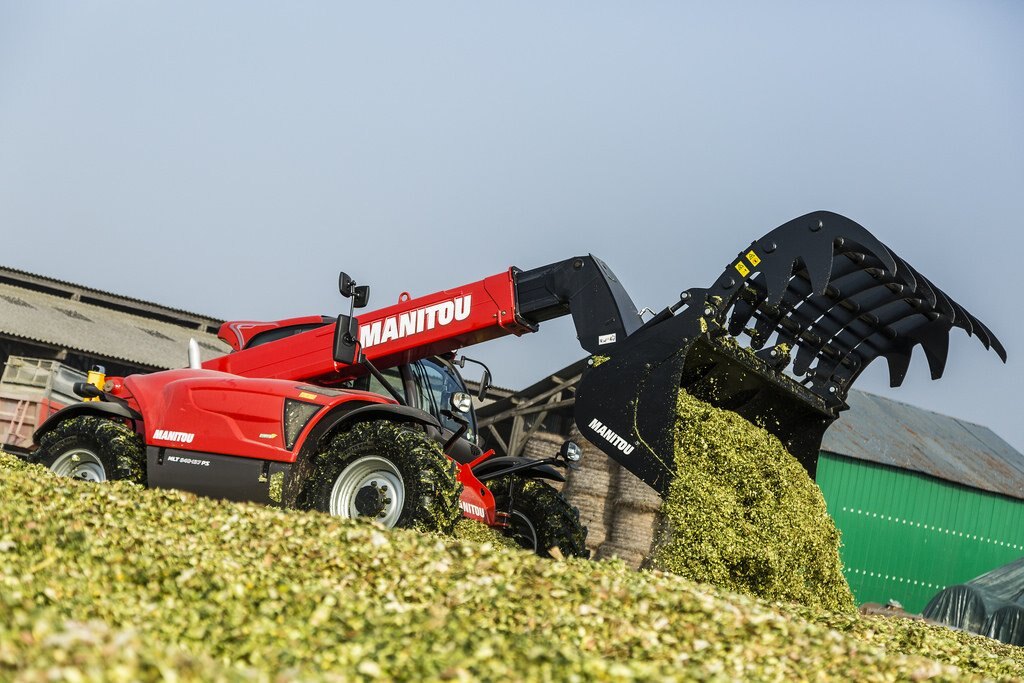

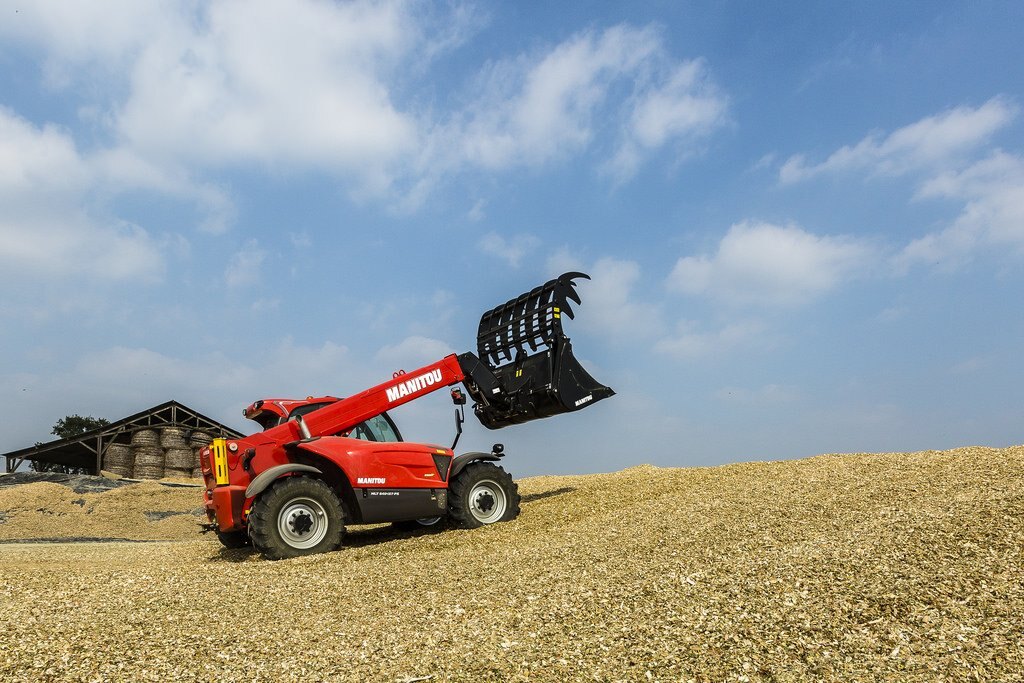

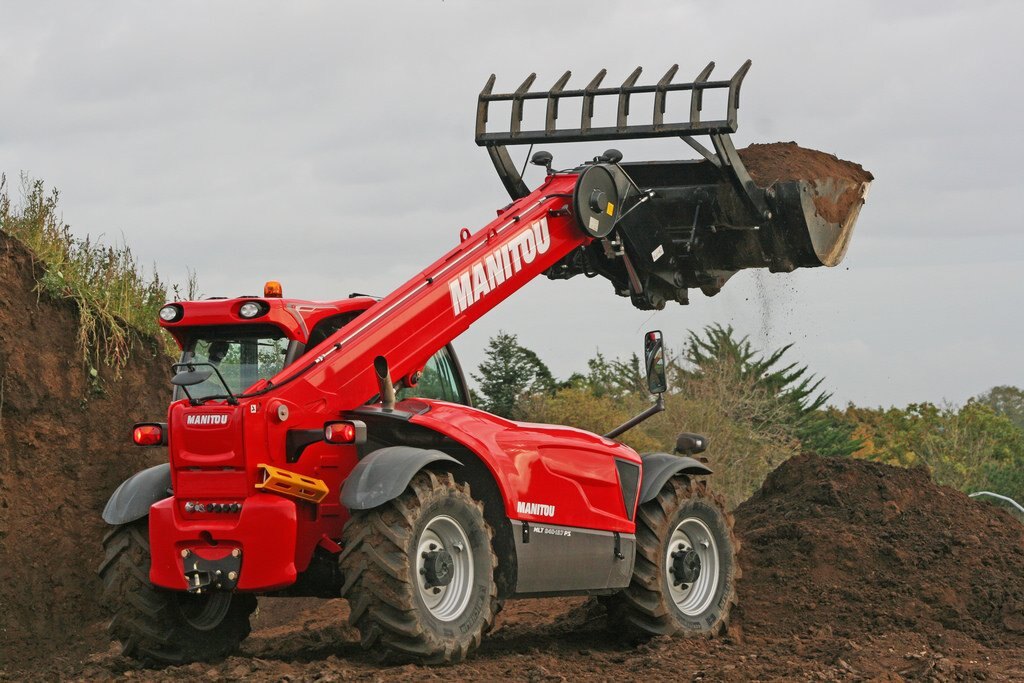

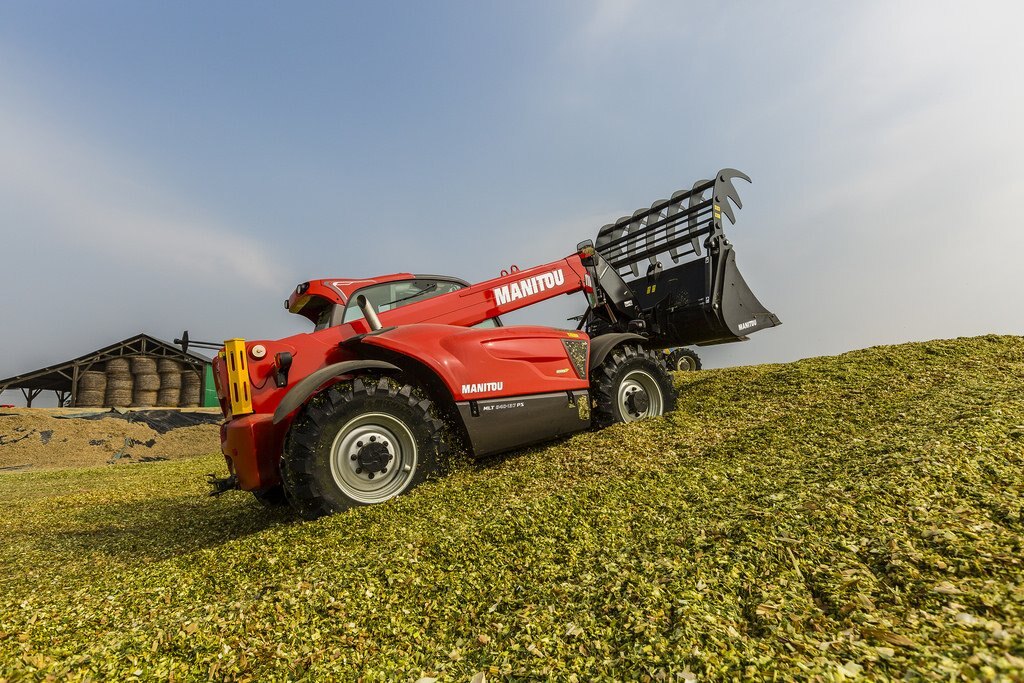

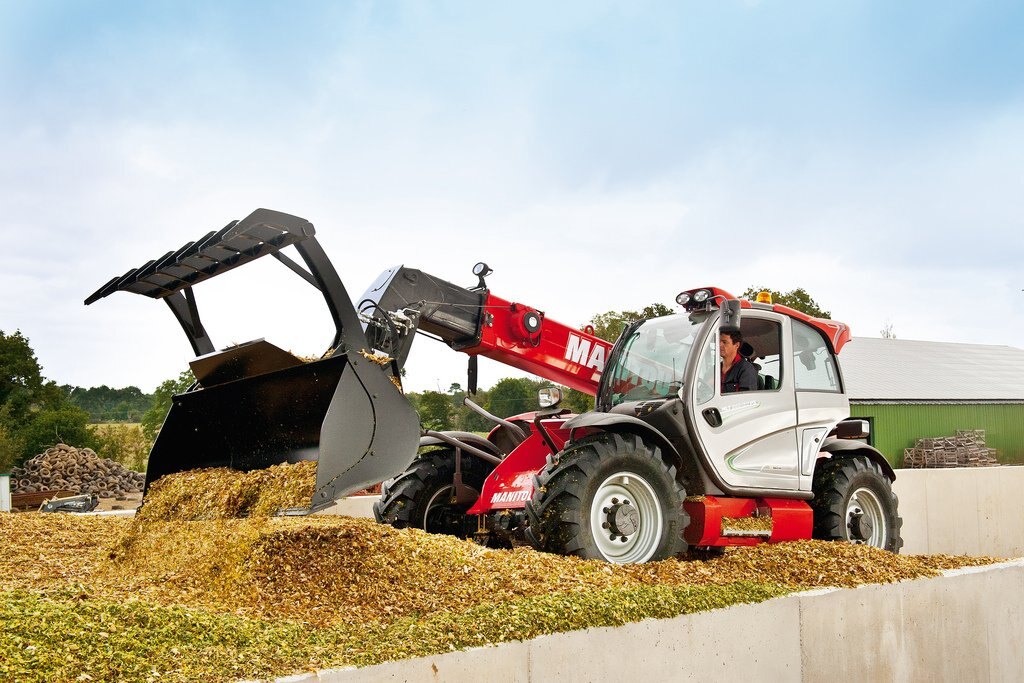

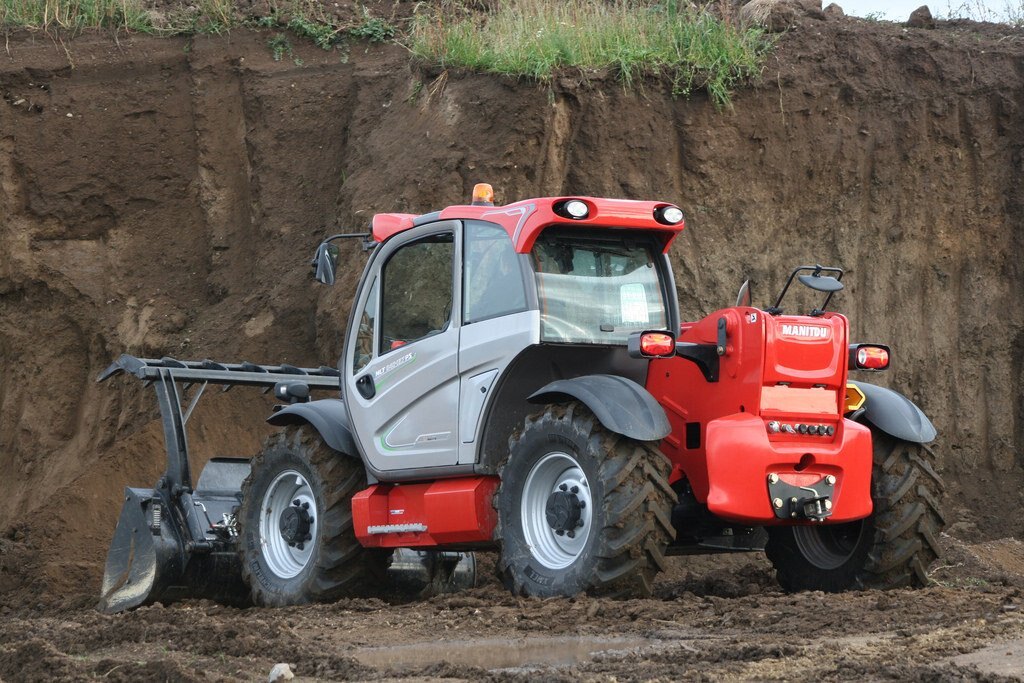

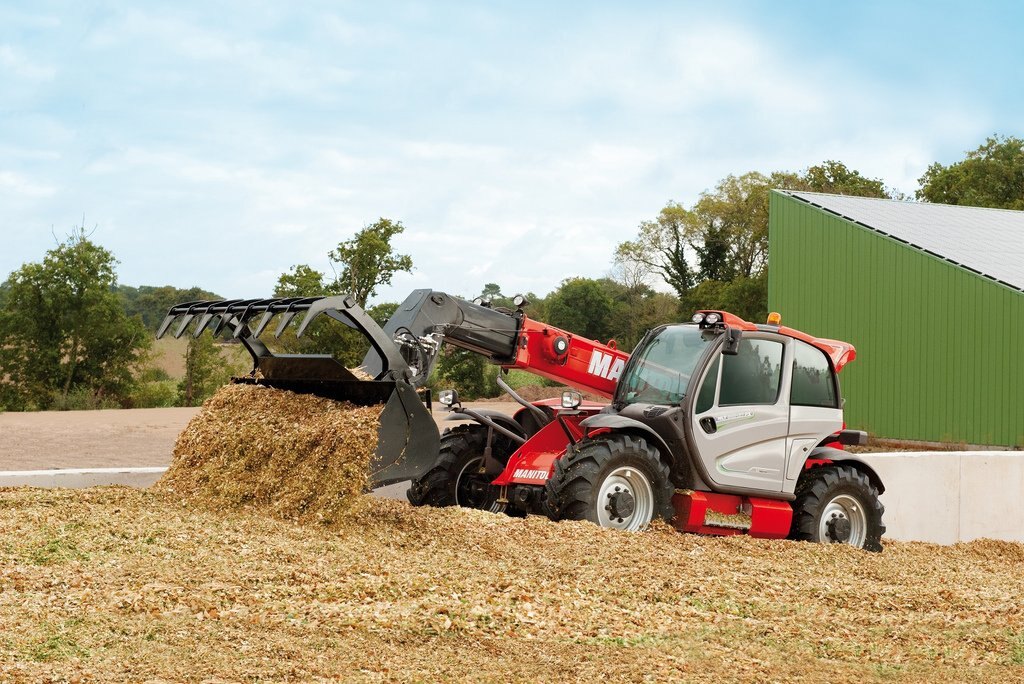

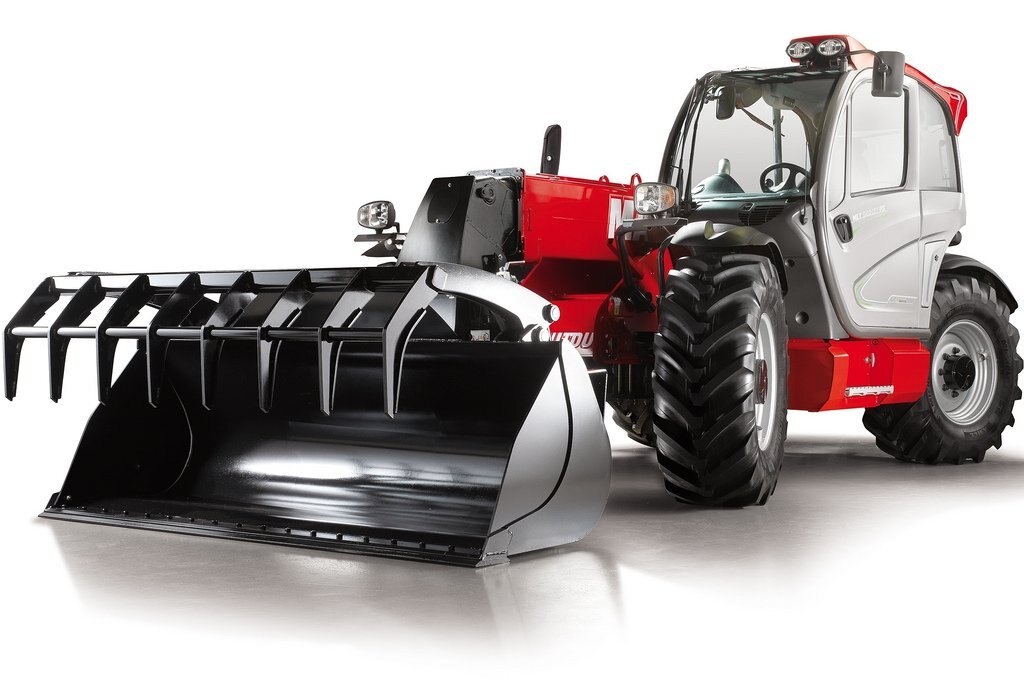

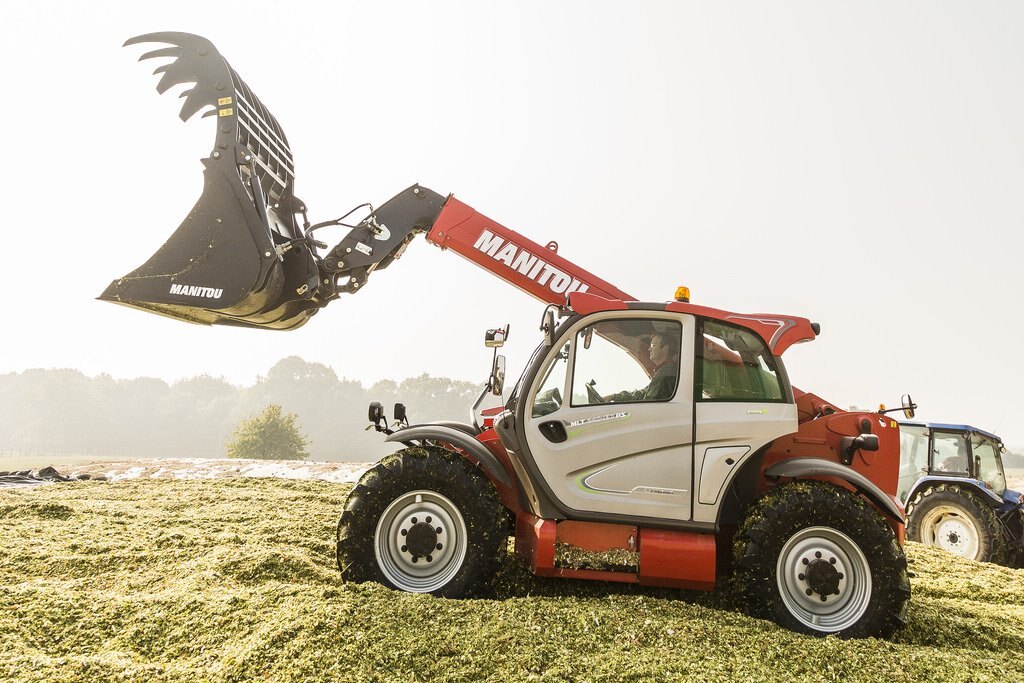

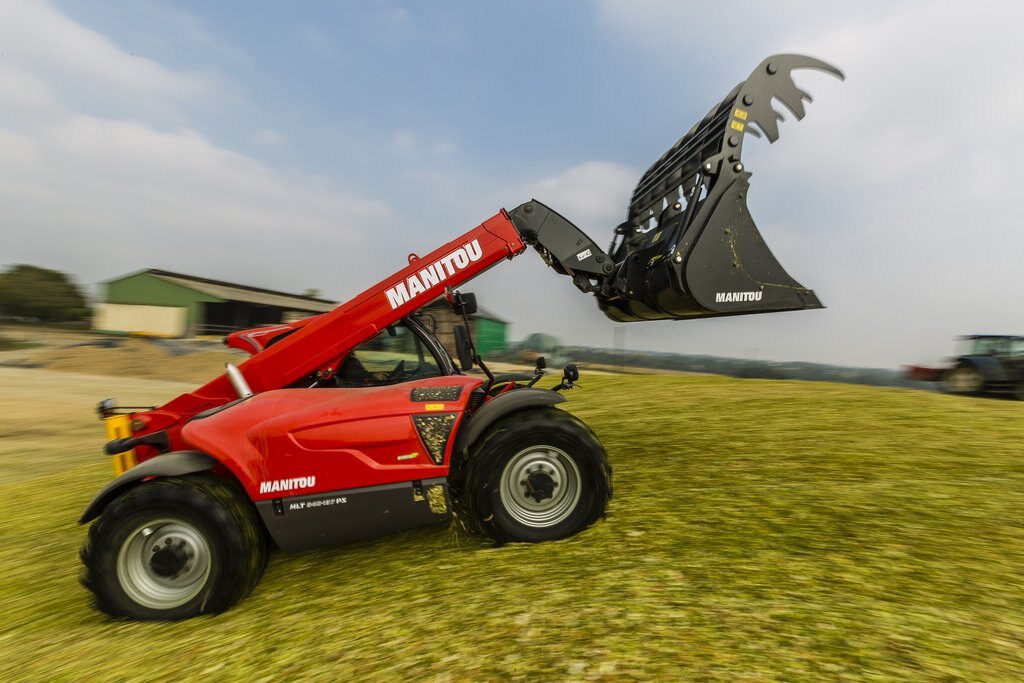

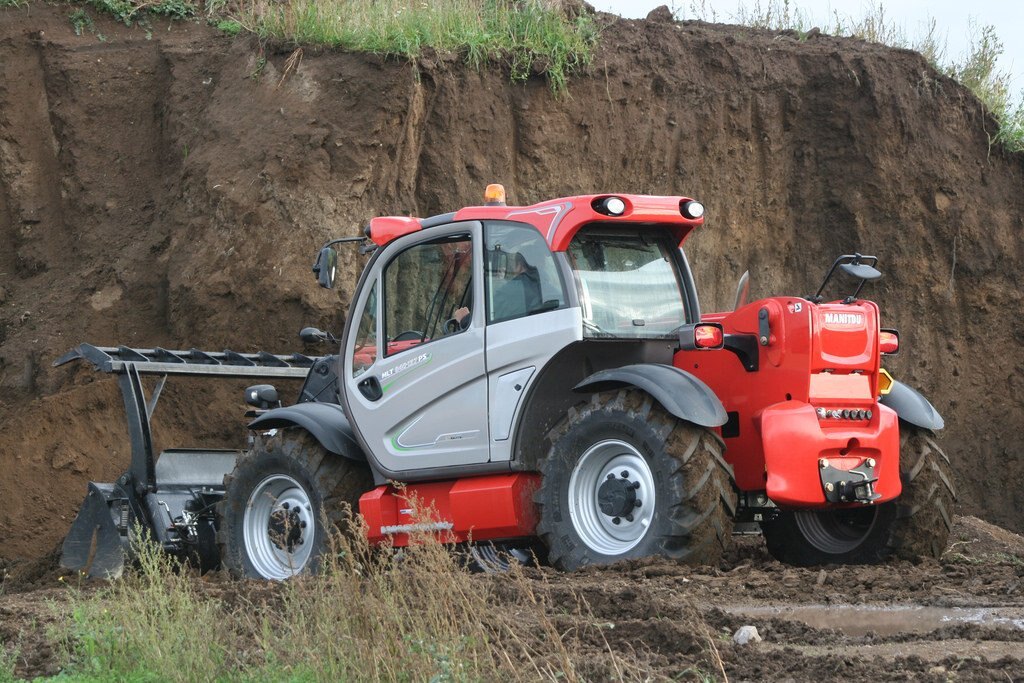

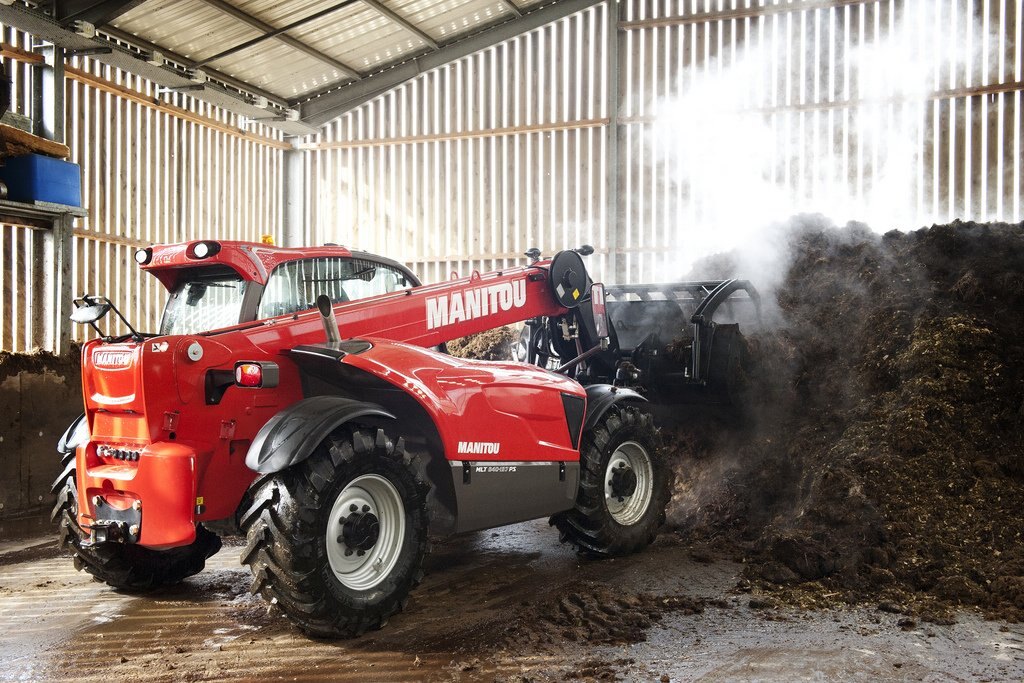

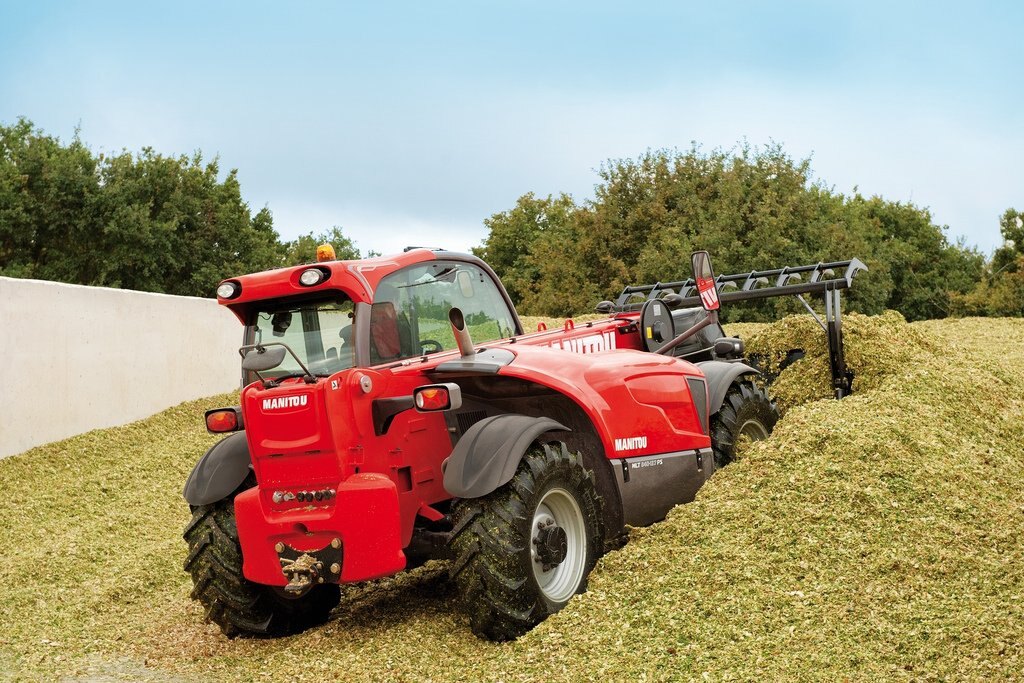

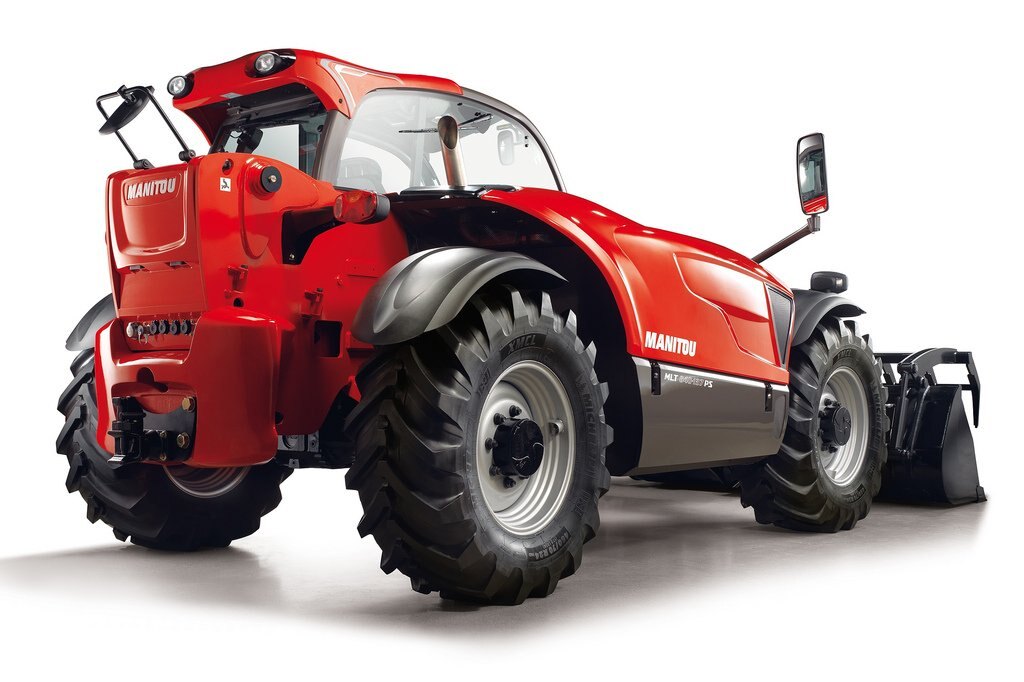

Manitou MLT 840-115 PS

  • Manitou MLT 840 115 PS
  • Manitou MLT 840 115 PS
  • Manitou MLT 840 115 PS
  • Manitou MLT 840 115 PS
  • Manitou MLT 840 115 PS
  • Manitou MLT 840 115 PS
  • Manitou MLT 840 115 PS
  • Manitou MLT 840 115 PS
  • Manitou MLT 840 115 PS
  • Manitou MLT 840 115 PS
  • Manitou MLT 840 115 PS
  • Manitou MLT 840 115 PS
  • Manitou MLT 840 115 PS
  • Manitou MLT 840 115 PS
  • Manitou MLT 840 115 PS
  • Manitou MLT 840 115 PS
  • Manitou MLT 840 115 PS
  • Manitou MLT 840 115 PS
  • Manitou MLT 840 115 PS
  • Manitou MLT 840 115 PS
  • Manitou MLT 840 115 PS
  • Manitou MLT 840 115 PS
  • Manitou MLT 840 115 PS
  • Manitou MLT 840 115 PS
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

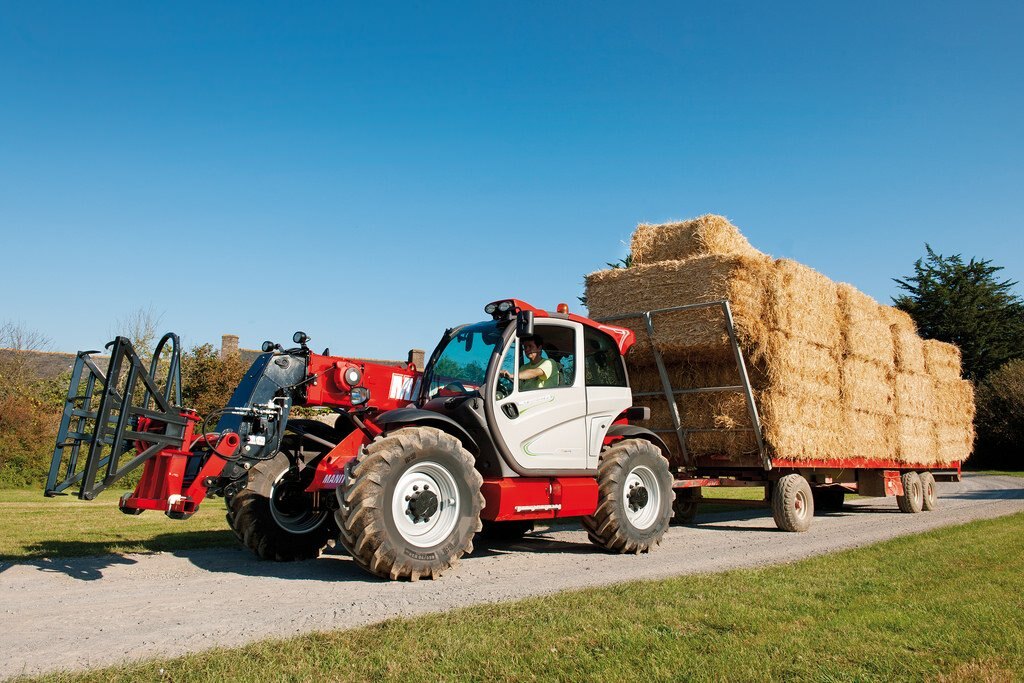

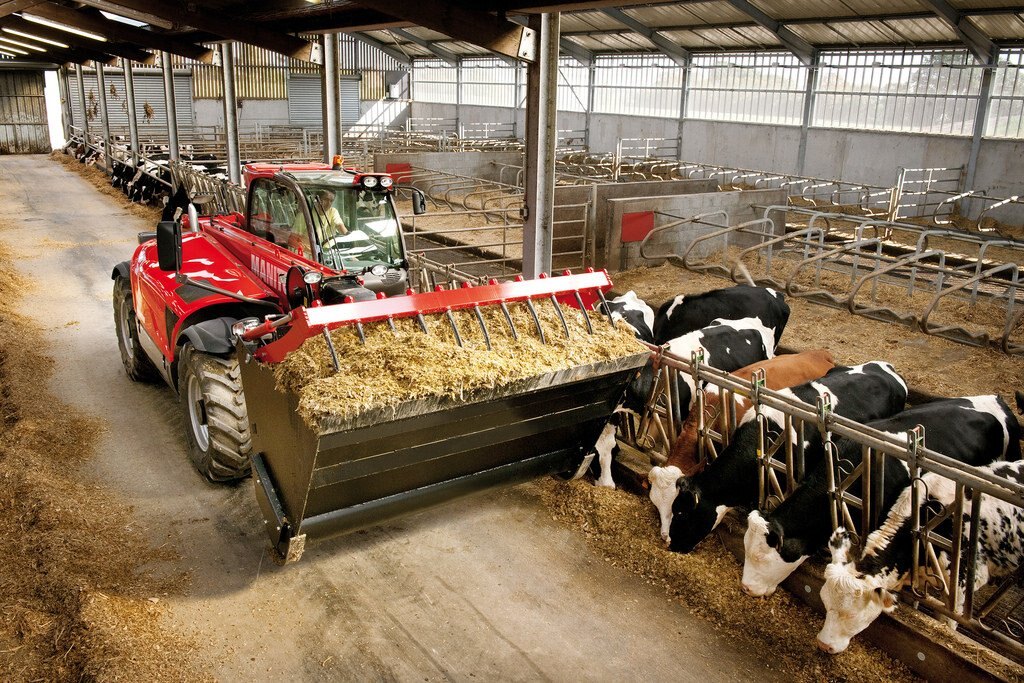

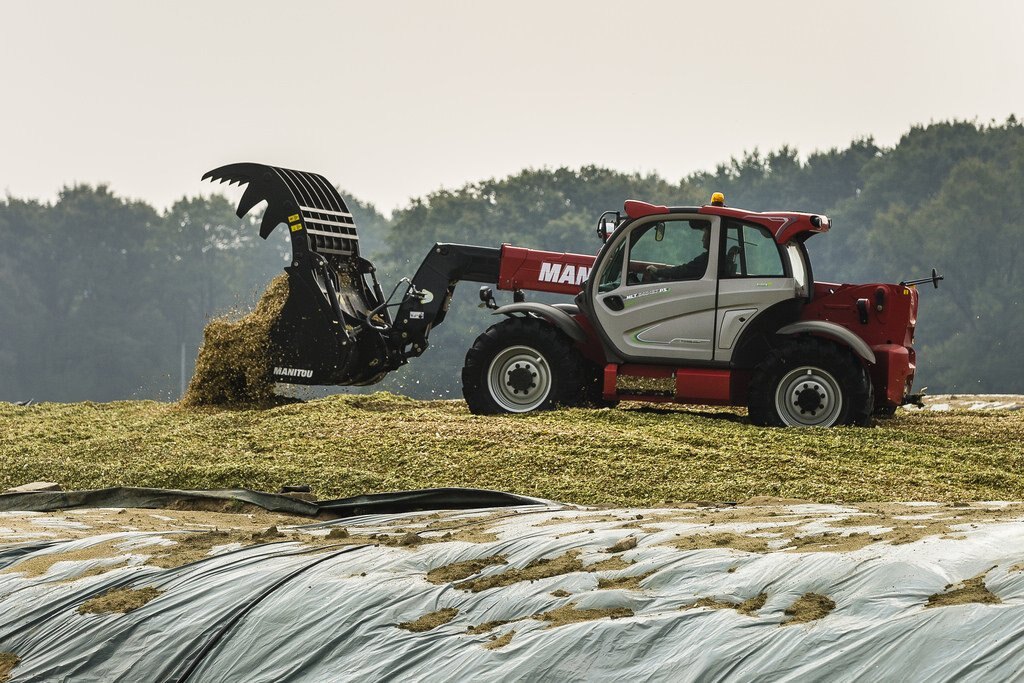

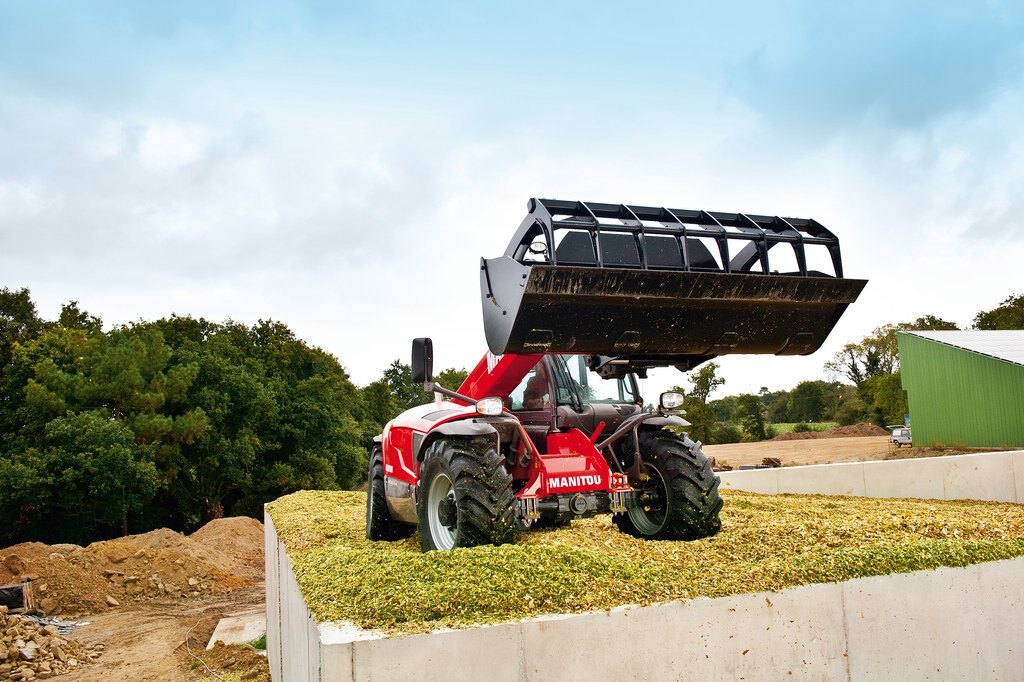

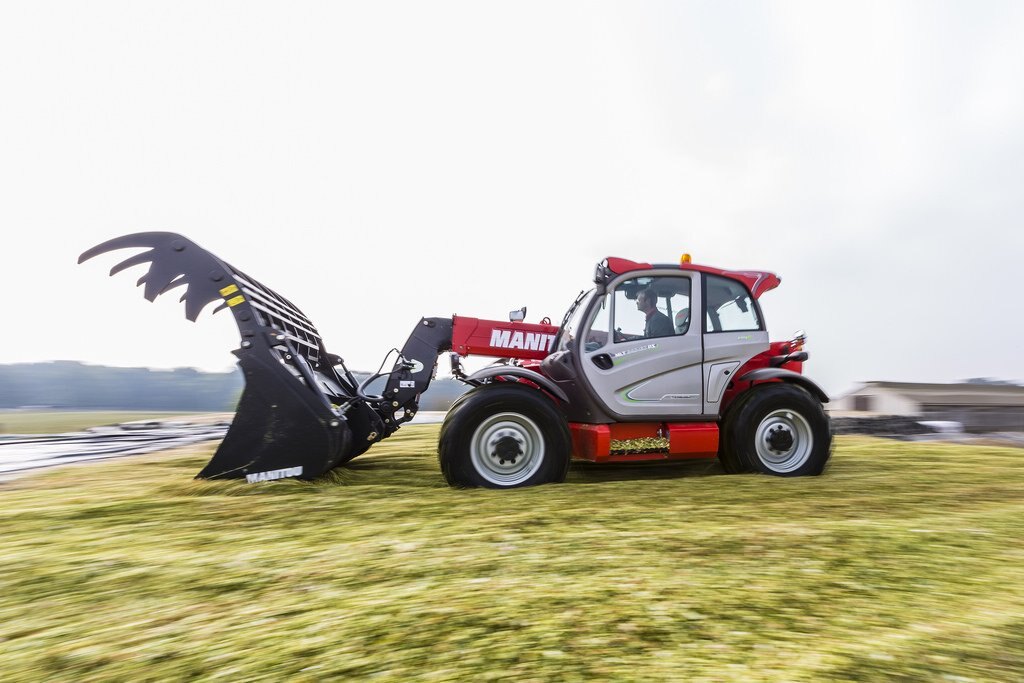

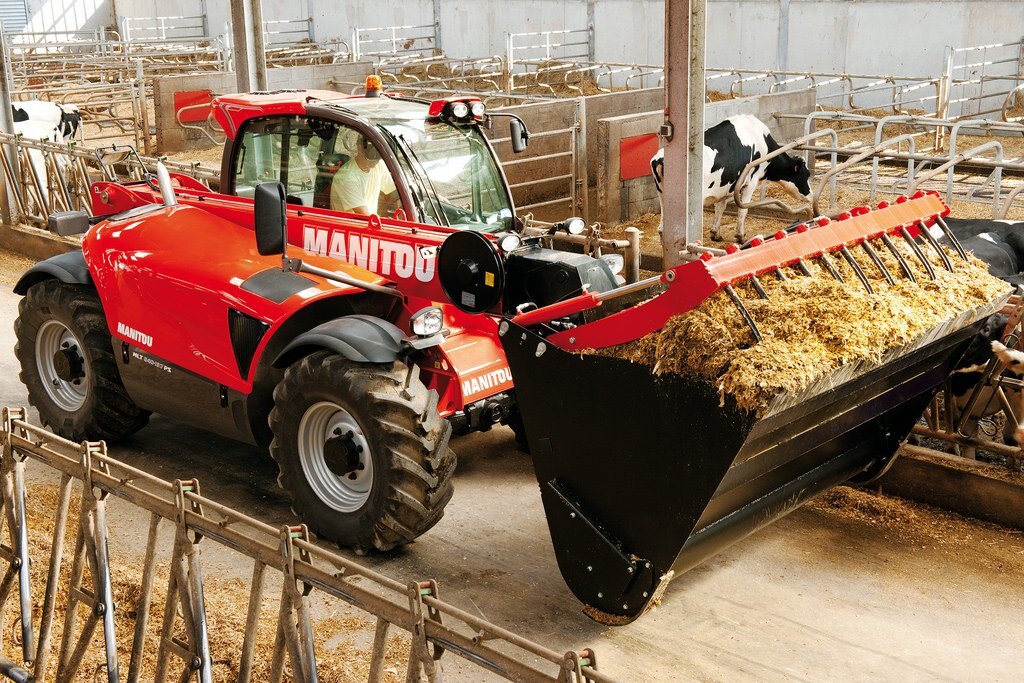

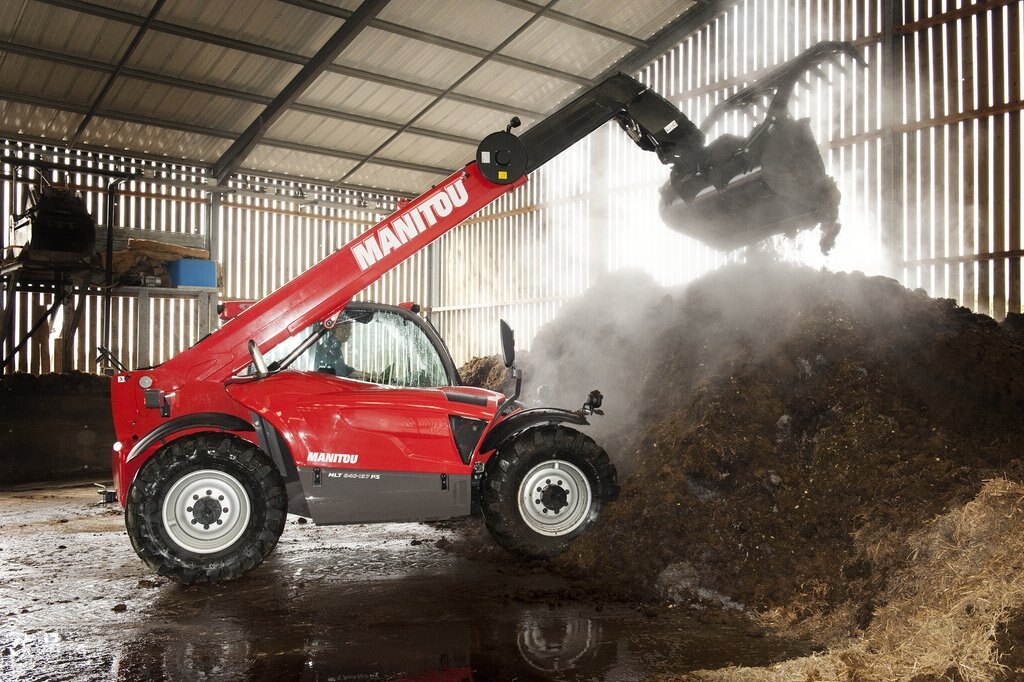

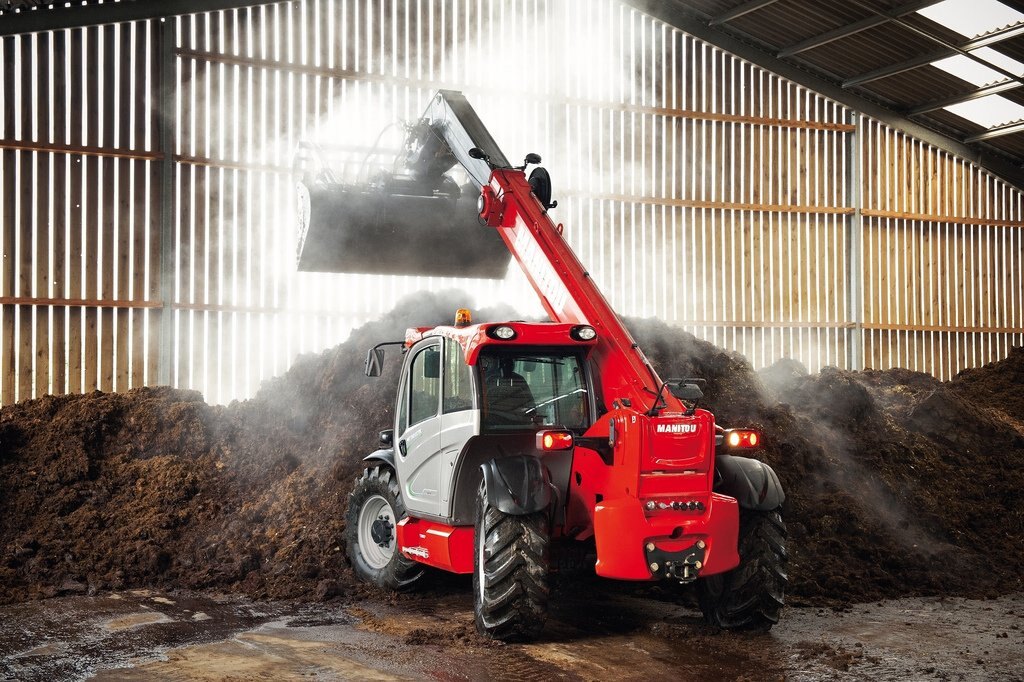

The MLT 840-115 PS is a telehandler dedicated to agricultural activities. Agricultural profile tyres, high ground clearance, excellent traction capacity and high hydraulic flow rate make this truck a real boon for all your day-to-day operational tasks. We know that you will be spending long periods of time in your telehandler, and for that reason we have created a soundproofed cabin (74 dB), with a JSM joystick mounted on a floating armrest, roomy cabin interior, and automatic alignment of the wheels, all designed to give you the comfort you deserve.
The 115 hp engine meets Stage IV / Tier 4 Final standards. The M-Shift 5-speed gearbox gives you smooth gear changes and selects the optimal gear in automatic mode. The Lock-up function applies a direct lock to the torque converter and improves the efficiency of your machine, increasing its drawbar pull and reducing fuel consumption. The electronically regulated cooling system controls the fan speed according to engine temperature; the air flow inverter allows your telehandler to breathe under all conditions, enabling you to reduce your fuel consumption while ensuring that cooling is always optimal.
  Standard equipments
  • Front and rear work lights (x4: 2 front + 2 rear)
  • Front and rear LED work lights (x4 : 2 front + 2 rear)
  • Bluetooth car radio with extra microphone (100 W)
  • Continuous flow hydraulics
  • Air suspension cloth seat (GRAMMER)
  • Automatic wheel alignment
  • Regenerative Hydraulics
  • Hand throttle with engine memo
  • Intelligent Hydraulics
  • Hydraulic trailer brake
  • Tuner car radio (50 W)
  • Roof wiper
  • Easy Connect System (ECS)
  • Rear windscreen defrost
  • Boom suspension "Active CRC"
  • Lateral wiper
  • Manual air conditioning
  • Mechanical cloth seat (GRAMMER)
  • Low frequency air suspension cloth seat (GRAMMER)
  • Electric mirror with de-icing
  Technical data sheet

Performances
Load chart (EN1459-B) :

Manitou%2F6af755a3 2da7 4d4a A19e 15960f0ded8e Abaque+840



Lifting height 7.55 m 24'11"
Lifting capacity 4000 kg 9000 lb
Max reach 4.45 m 14'8"
Drawbar pull 8890 dan
Lifting time (unladen) 6.6 s
Lowering time (unladen) 4.8 s
Boom extension time (unladen) 6.3 s
Boom retraction time (unladen) 5.2 s
Crowd 3 s
Dump 2.4 s

Dimensions

Length (up to the back of the fork) 5.37 m 17'8"
Wheelbase length 2.88 m 9'6"
Width 2.39 m 7'1"
Height 2.39 m 7'1"
Weight (unladen) 8410 kg 18521 lb
Turning radius 3.74 m 12'4"
Ground clearance 0.43 m 0'2"
Manitou%2F7a99b595 9b16 4e91 9c53 Ff7095e00175 Vuepg Mlt960 B 0217  Manitou%2F28263555 C2f5 4ddf Ac56 80b7e77a7780 Vueds Mlt90 B 0217
Manitou%2Fdfe57b4d Ee15 498e Aa9e Ef5246972ba2 Vueav Mlt960 B 0217

Engine / Battery

Engine brand John Deere
Engine type Stage IV / Tier 4 Final
Power 115 ch 115 hp
Power 86 KW
Max. Torque @ Rotation 480 Nm @ 1500 tr/min
Number of cylinders 4
Total capacity 4500 cm3 275 in3
Transmission type Torque converter

Hydraulic

Pressure 270 bars
Hydraulic oil tank volume 156 l 41 gal

Other specifications

Number of wheels (front/rear) 2/2
Number of drive wheels (front/rear) 2/2
Tractor European Conformity Yes
Parking brake Automatic negative handbrake
Driving position noise levels 74 dB
Environmental noise levels 105 dB
Vibrations affecting hands/arms <2.5 m/s



Specifications
Model
MLT 840-115 PS
Category Name
Tractors
Year
2018
Sale Type
New
Manufacturer
Manitou
Documents
