ID # 13737366

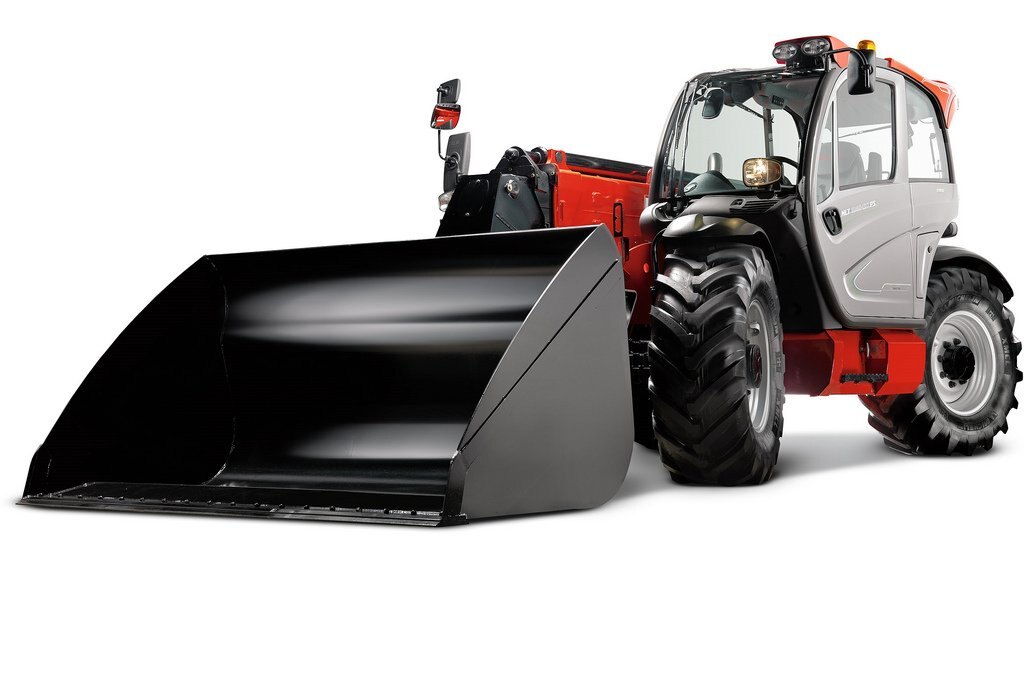

Manitou MLT 1040-145 PS L

  • Manitou MLT 1040 145 PS L
  • Manitou MLT 1040 145 PS L
  • Manitou MLT 1040 145 PS L
  • Manitou MLT 1040 145 PS L
  • Manitou MLT 1040 145 PS L
  • Manitou MLT 1040 145 PS L
  • Manitou MLT 1040 145 PS L
  • Manitou MLT 1040 145 PS L
  • Manitou MLT 1040 145 PS L
  • Manitou MLT 1040 145 PS L
  • Manitou MLT 1040 145 PS L
  • Manitou MLT 1040 145 PS L
  • Manitou MLT 1040 145 PS L
  • Manitou MLT 1040 145 PS L
  • Manitou MLT 1040 145 PS L
  • Manitou MLT 1040 145 PS L
  • Manitou MLT 1040 145 PS L
  • Manitou MLT 1040 145 PS L
  • Manitou MLT 1040 145 PS L
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

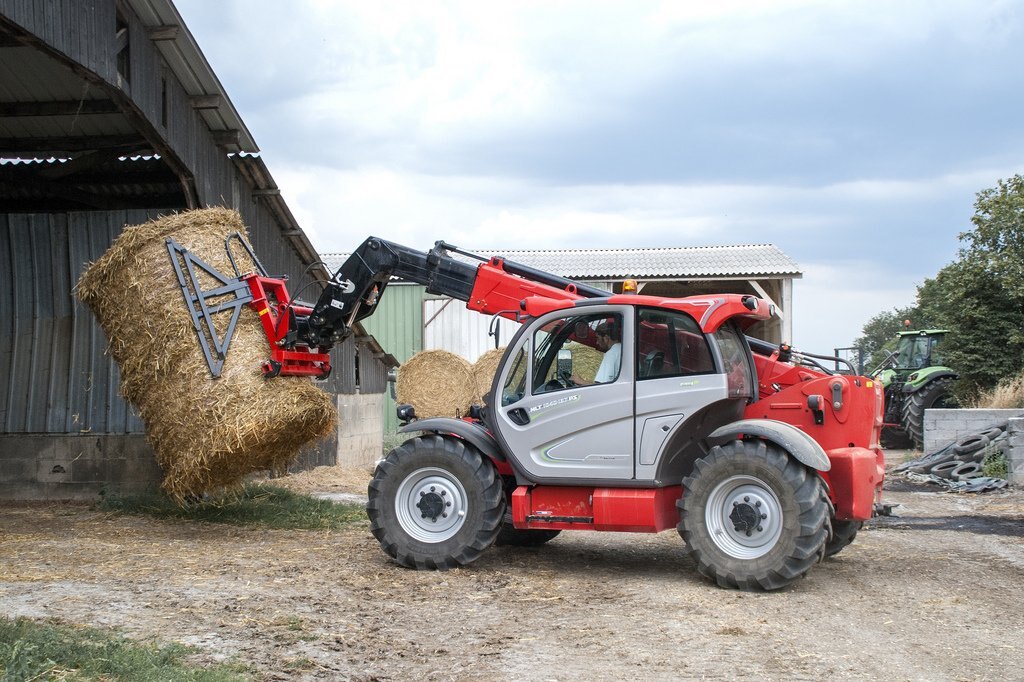

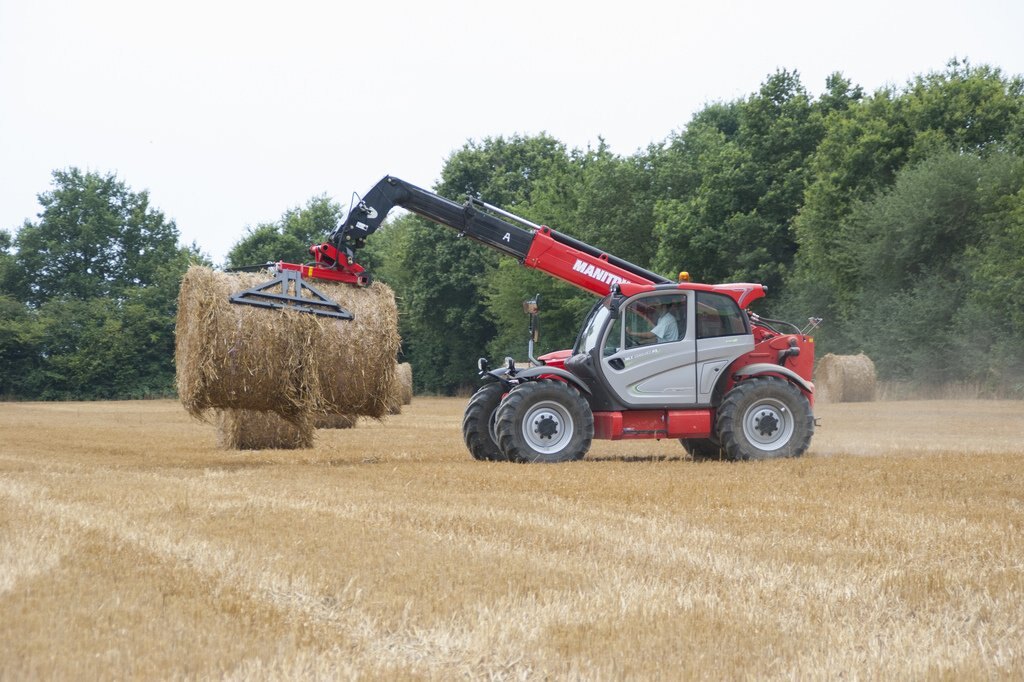

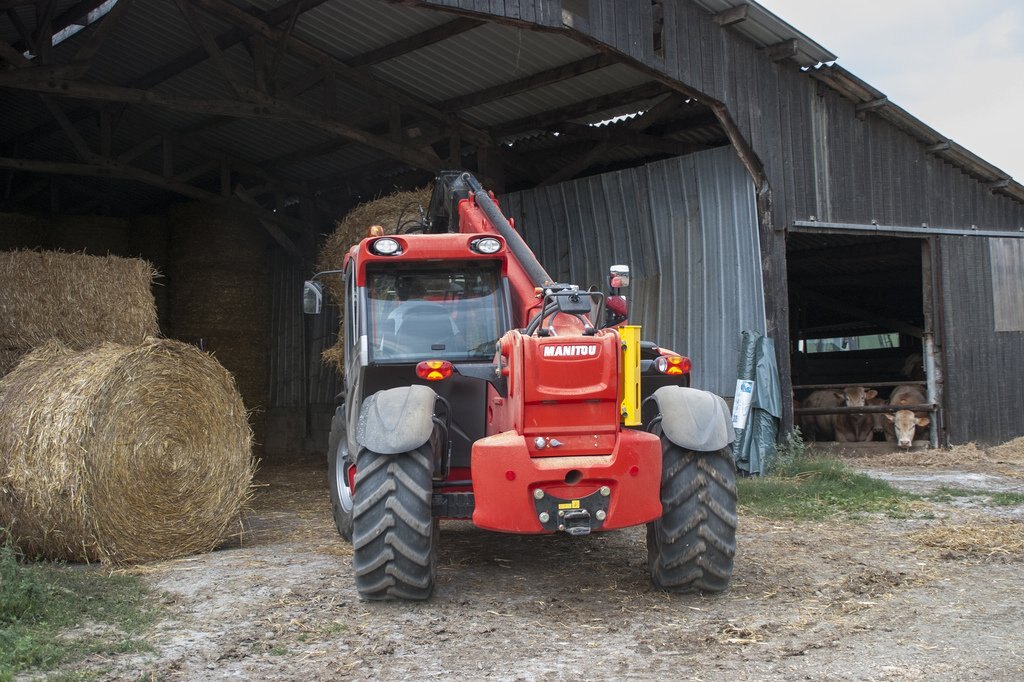

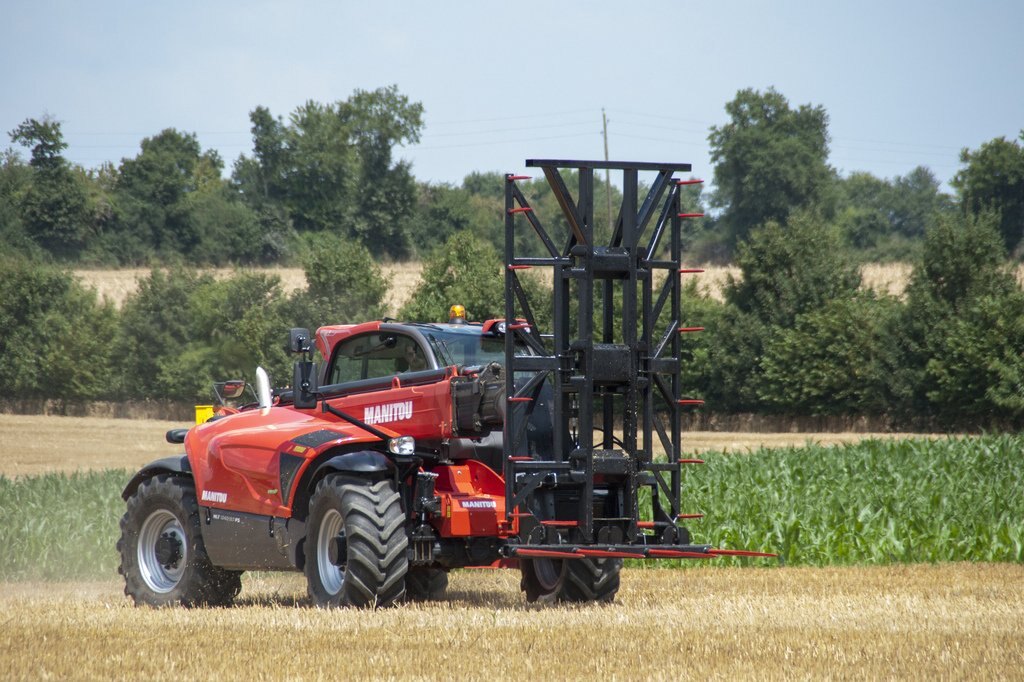

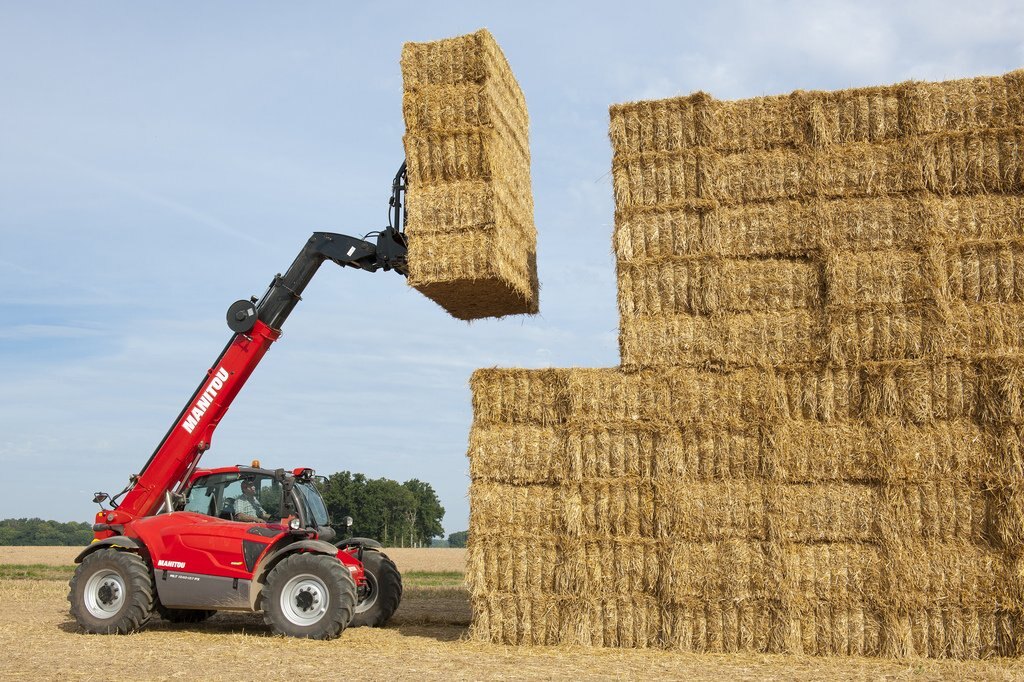

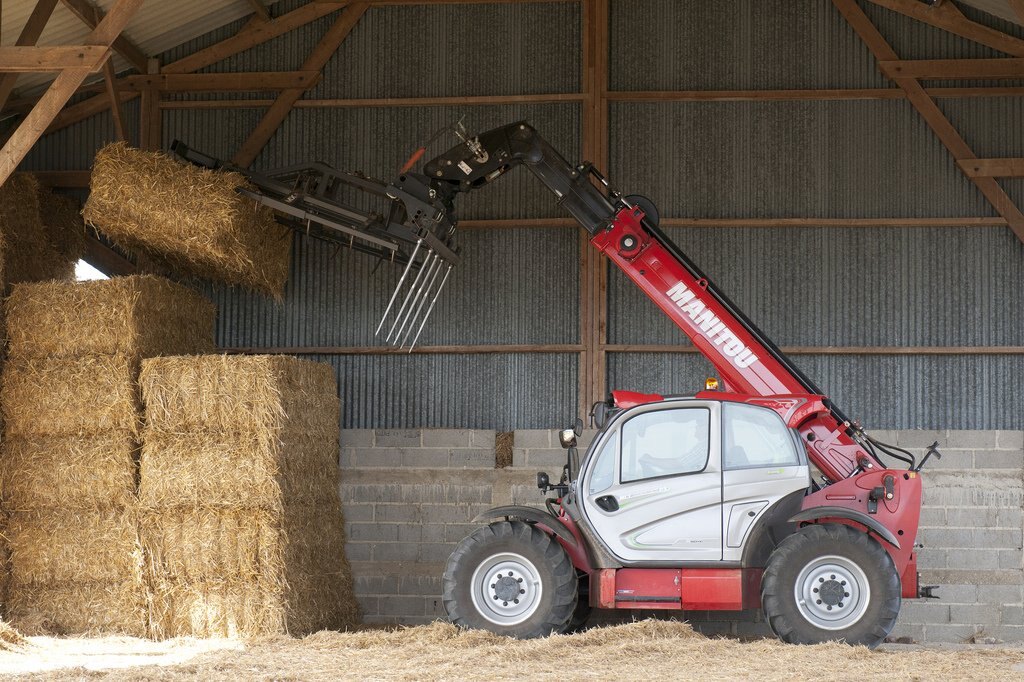

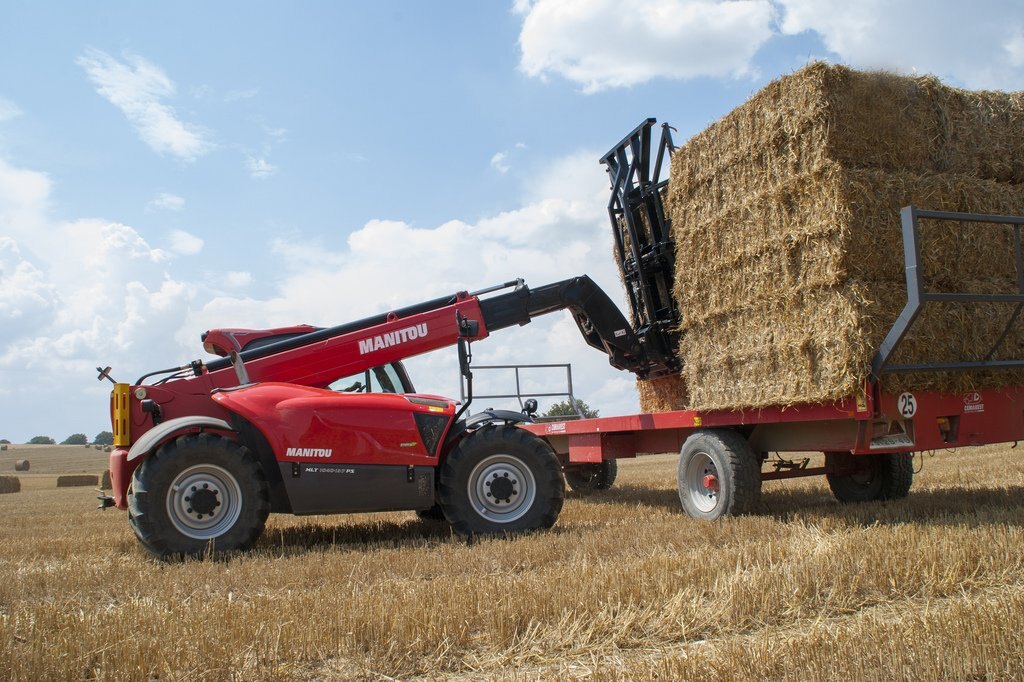

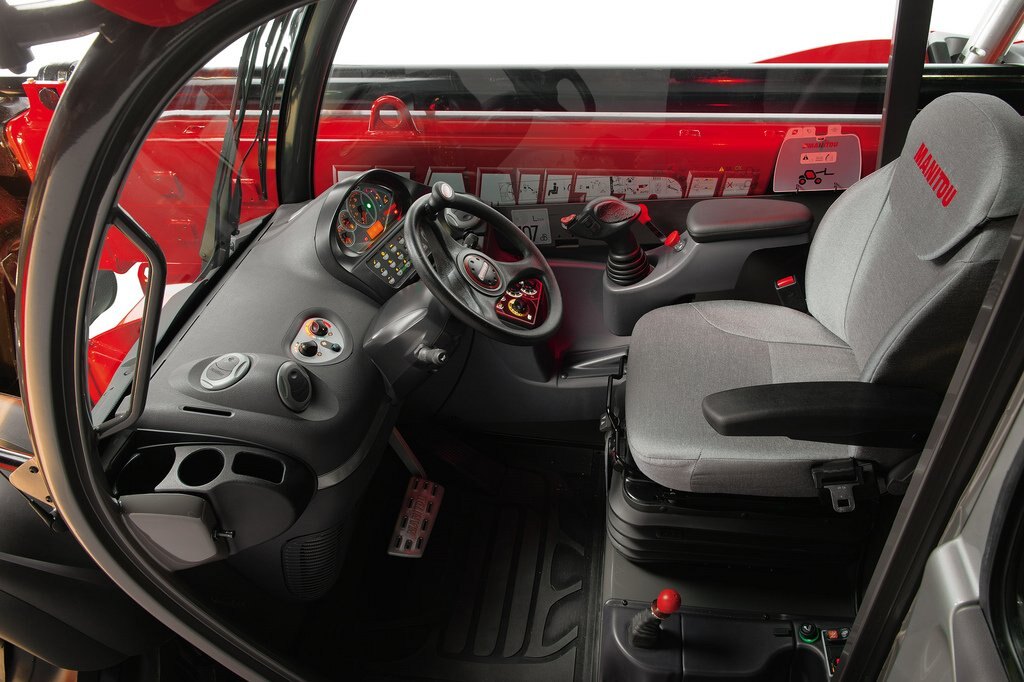

If you are looking for the perfect combination of power and productivity for your agricultural activities, the MLT 1040-145 PS L truck (with frame levelling) is the perfect machine for you. Fitted with the JSM (Joystick Switch & Move), automatic wheel alignment and exceptional cabin soundproofing (74 dB), it offers you comfort and reduces fatigue. The lifting height of 10 m means that you can optimise your floor space and store items high up inside your buildings. The numerous attachments available and the high ground clearance make this a versatile truck that is easy to manoeuvre on all types of terrain.
The 141 hp engine, combined with the Powershift 5-speed gearbox allows you to change gear smoothly. To reduce fuel consumption, there is an electronically regulated cooling system which controls the fan speed and reverses the air flow according to the engine temperature.
  Standard equipments

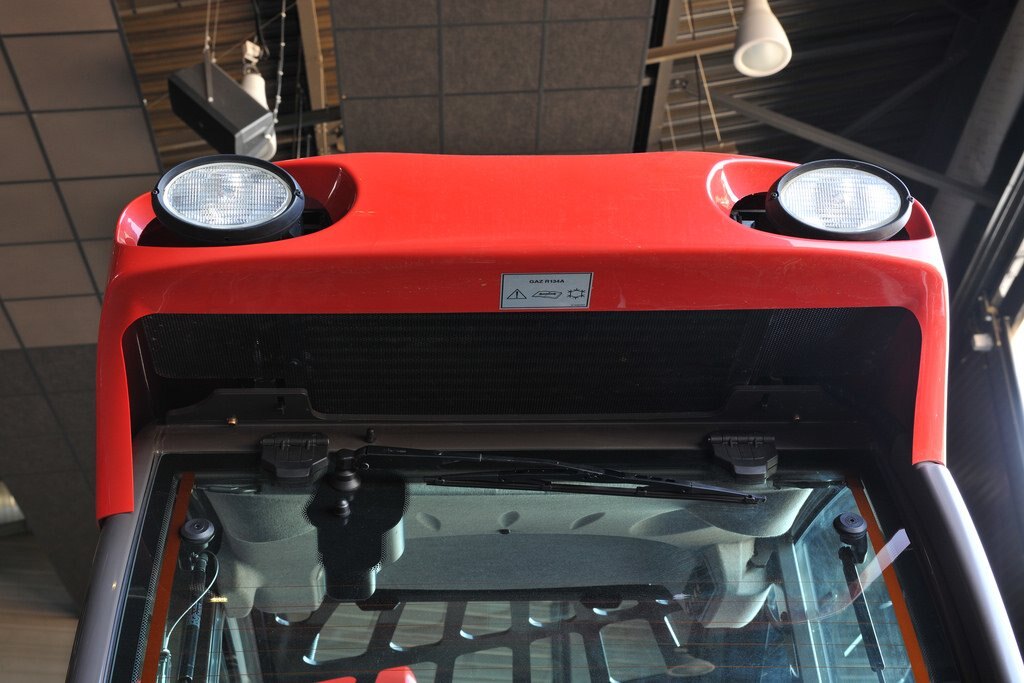

  • Front and rear work lights (x4: 2 front + 2 rear)
  • Hydraulic trailer brake
  • Tuner car radio (50 W)
  • Roof wiper
  • Rear windscreen defrost
  • Lateral wiper
  • Mechanical cloth seat (GRAMMER)
  • Manual rotating towing hitch on counterweight
  • Auto reversing fan

  Technical data sheet
Performances
Load chart (EN1459-B) :
Manitou%2Ffb0e5026 F3d9 4839 B51f B14209a4aa8f 1040 145psl

Dimensions

Length (up to the back of the fork) 5.17 m 16'11"
Wheelbase length 2.88 m 9'6"
Width 2.39 m 7'1"
Height 2.38 m 7'10"
Weight (unladen) 9175 kg 20227 lb
Turning radius 3.74 m 12'4"
Ground clearance 0.42 m 0'2"
Lifting height 9.6 m 31'7"
Lifting capacity 4000 kg 9000 lb
Max reach 6.55 m 21'7"
Drawbar pull 9300 dan
Lifting time (unladen) 8.34 s
Lowering time (unladen) 5.36 s
Boom extension time (unladen) 11.3 s
Boom retraction time (unladen) 9 s
Crowd 3.8 s
Dump 2.6 s
Manitou%2F1f20b40a 35ee 497e Bfe3 1e9b2e9a31cf Vuepg Mlt960 B 0217  Manitou%2F6486cd2a 6d45 487b Ac2d 764b04f2a119 Vueds Mlt90 B 0217
Manitou%2F37be56f7 Fb34 4bc8 897f A01326333335 Vueav Mlt960 B 0217


Engine / Battery

Engine brand John Deere
Engine type Stage IV / Tier 4 Final
Power 141 ch 141 hp
Power 104 KW
Max. Torque @ Rotation 540 Nm @ 1600 tr/min
Number of cylinders 4
Total capacity 4500 cm3 275 in3
Transmission type Torque converter

Hydraulic

Pressure 270 bars
Hydraulic oil tank volume 156 l 41 gal

Other specifications

Number of wheels (front/rear) 2/2
Number of drive wheels (front/rear) 2/2
Tractor European Conformity Yes
Parking brake Automatic negative handbrake
Driving position noise levels 74 dB
Environmental noise levels 105 dB
Vibrations affecting hands/arms <2.5 m/s



Specifications
Model
MLT 1040-145 PS L
Category Name
Tractors
Year
2018
Sale Type
New
Manufacturer
Manitou
