ID # 13737358

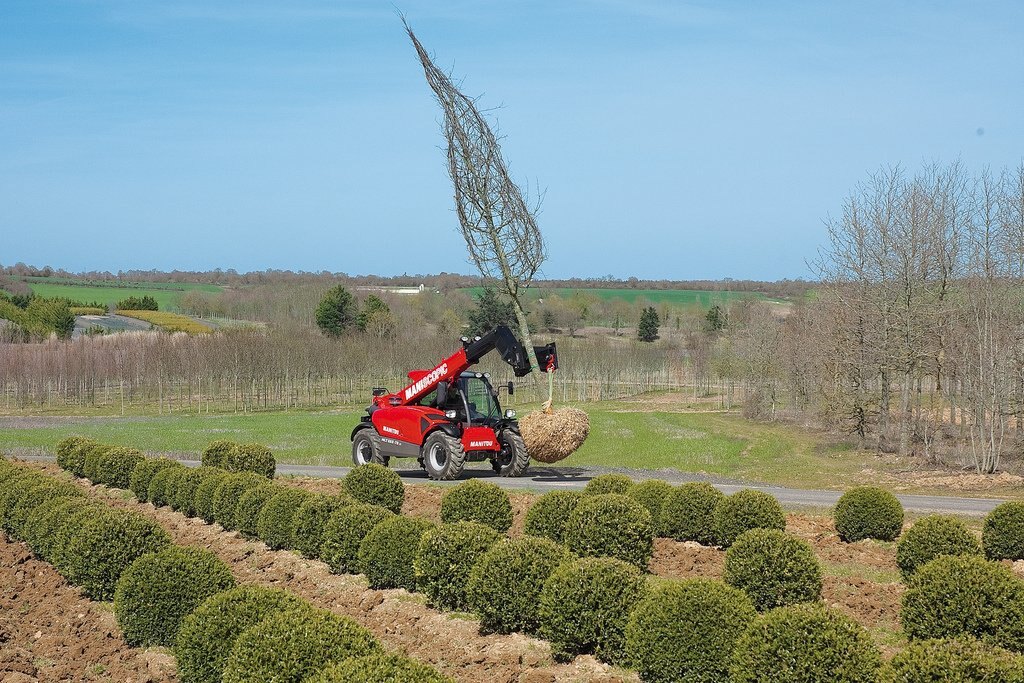

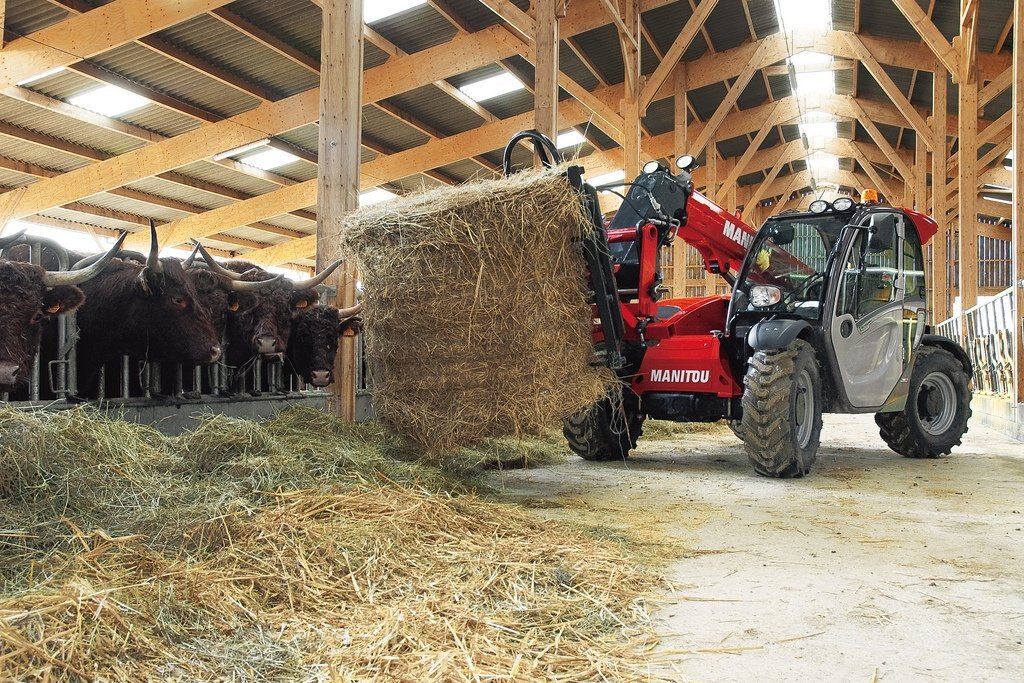

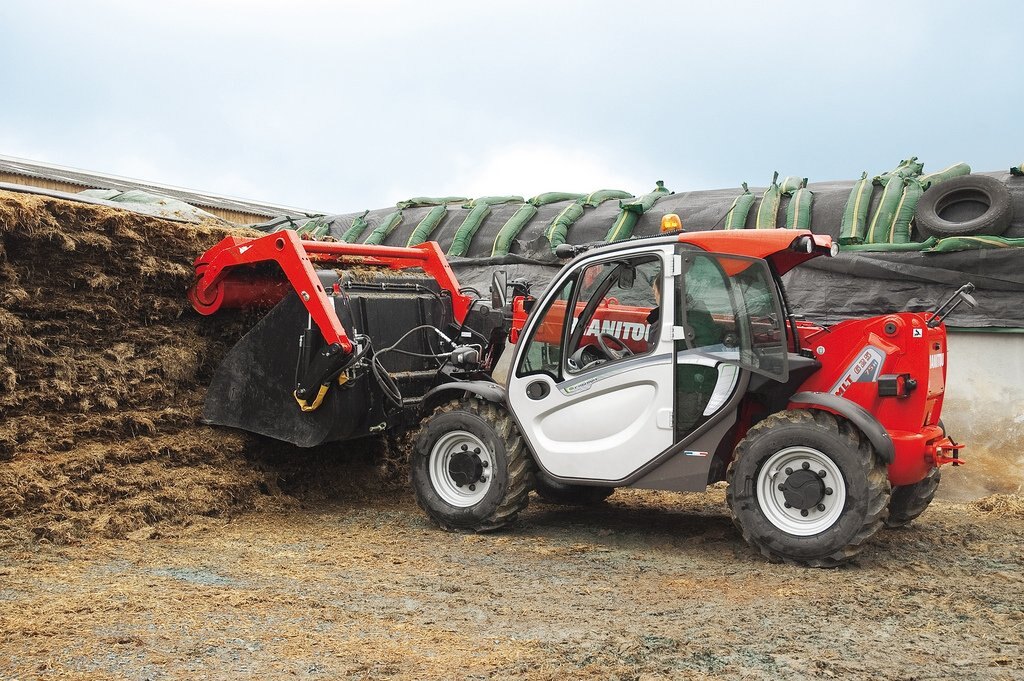

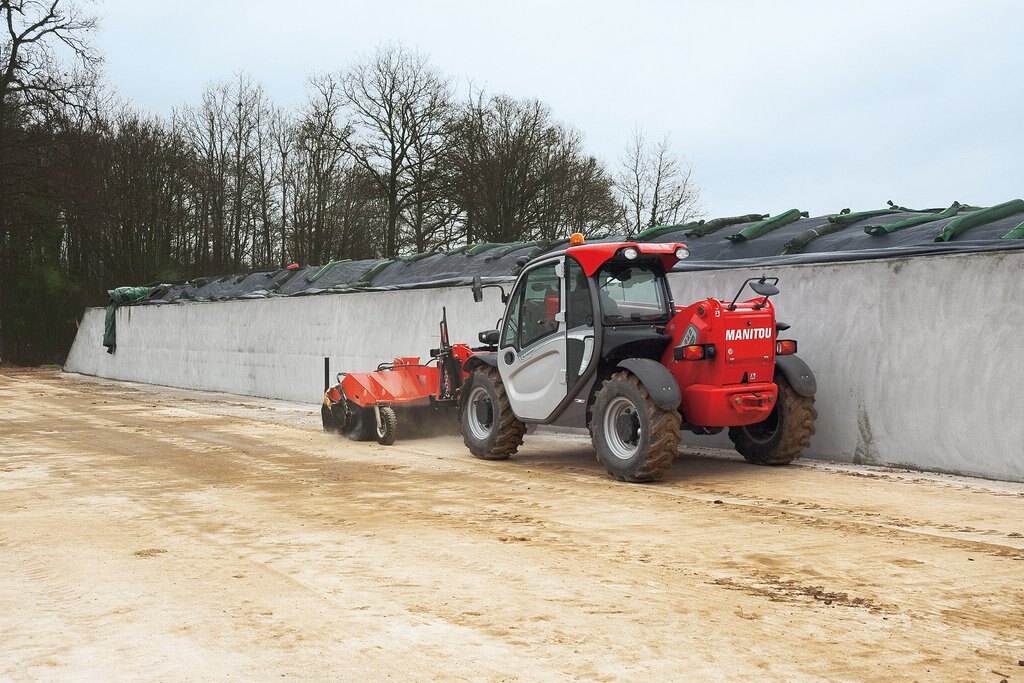

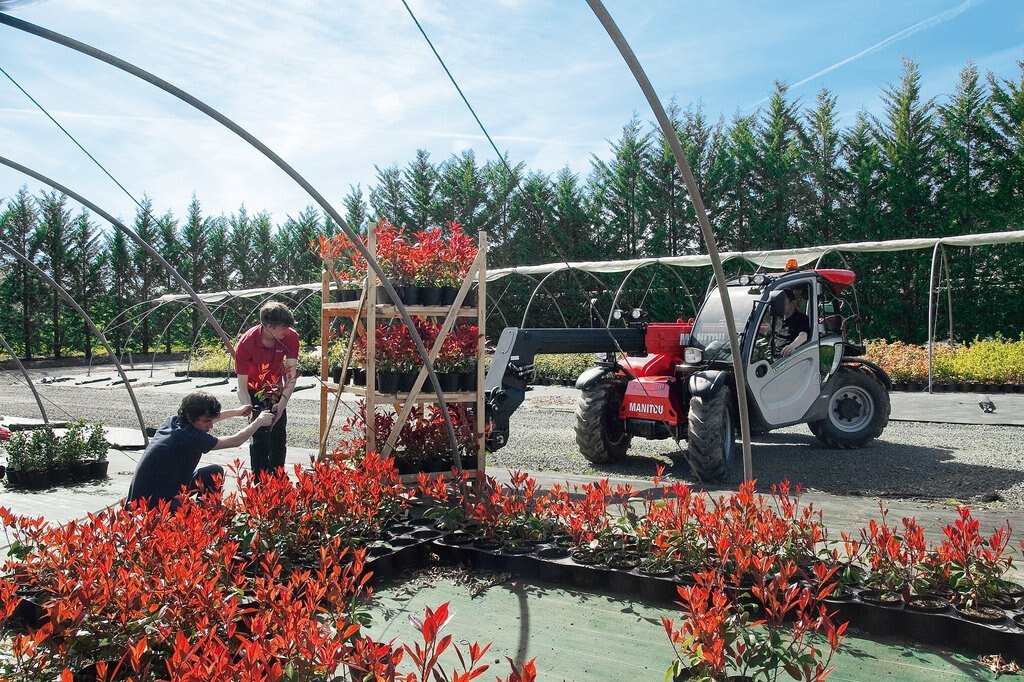

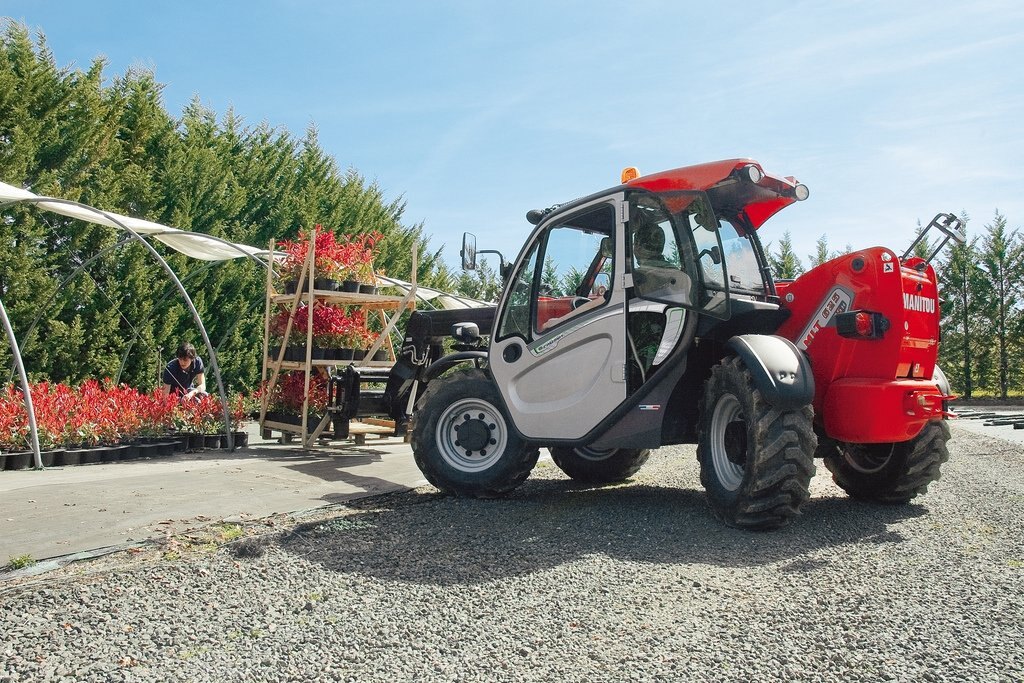

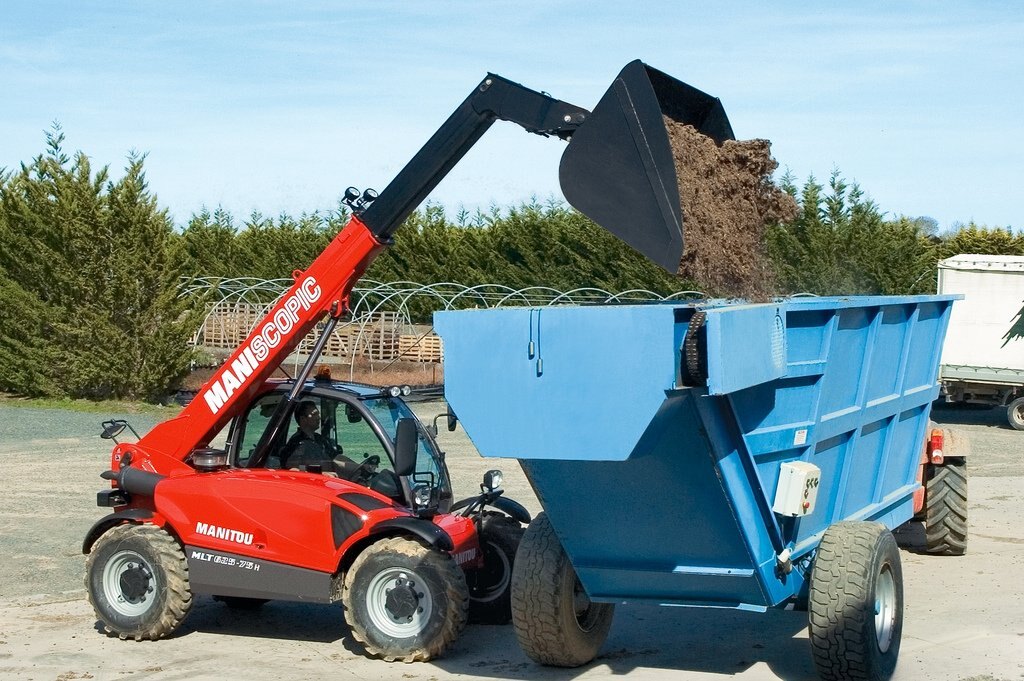

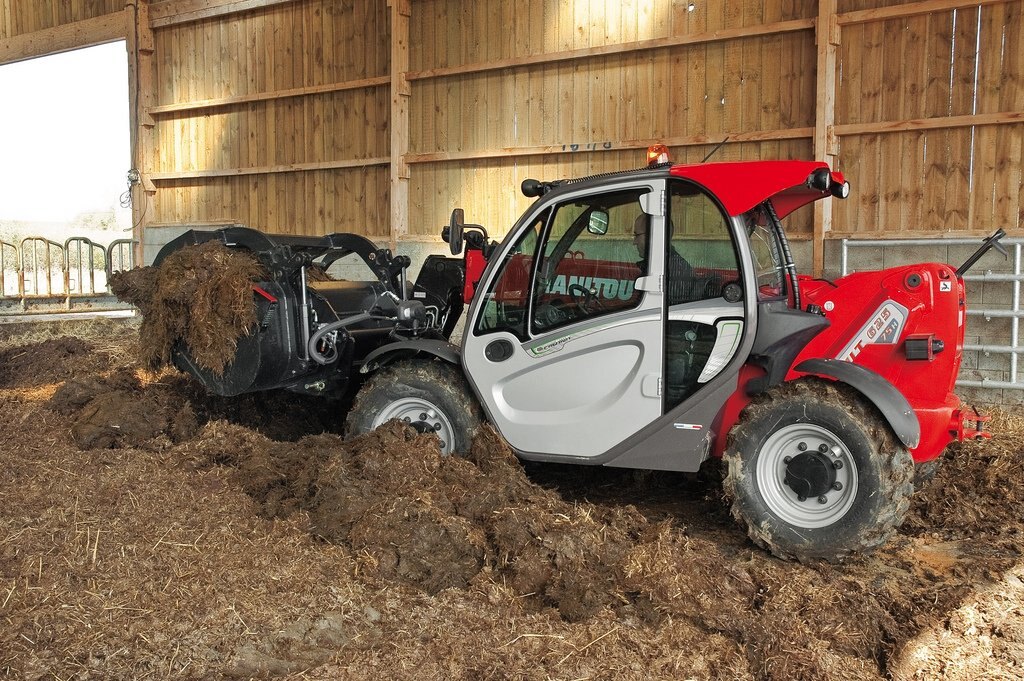

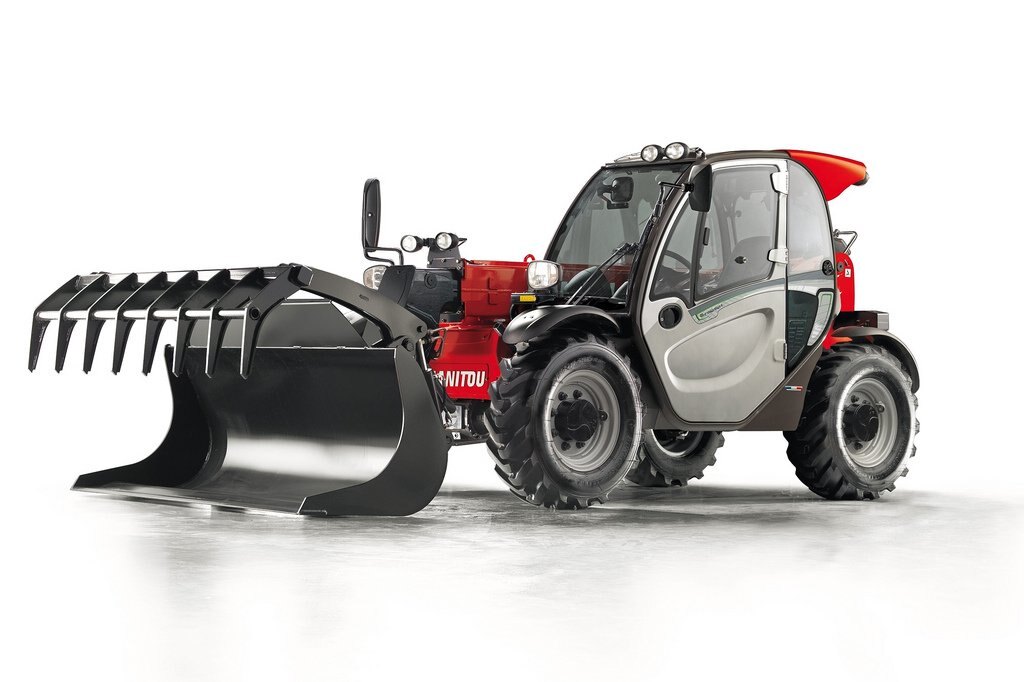

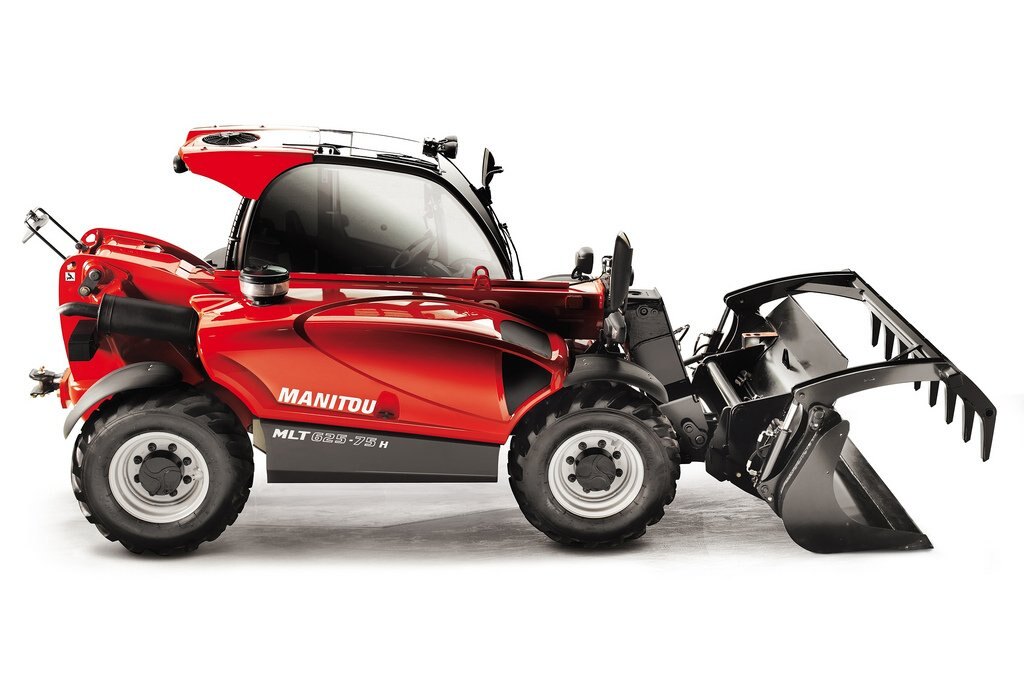

Manitou MLT 625 75 H

  • Manitou MLT 625 75 H
  • Manitou MLT 625 75 H
  • Manitou MLT 625 75 H
  • Manitou MLT 625 75 H
  • Manitou MLT 625 75 H
  • Manitou MLT 625 75 H
  • Manitou MLT 625 75 H
  • Manitou MLT 625 75 H
  • Manitou MLT 625 75 H
  • Manitou MLT 625 75 H
  • Manitou MLT 625 75 H
  • Manitou MLT 625 75 H
  • Manitou MLT 625 75 H
  • Manitou MLT 625 75 H
  • Manitou MLT 625 75 H
  • Manitou MLT 625 75 H
  • Manitou MLT 625 75 H
  • Manitou MLT 625 75 H
  • Manitou MLT 625 75 H
  • Manitou MLT 625 75 H
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

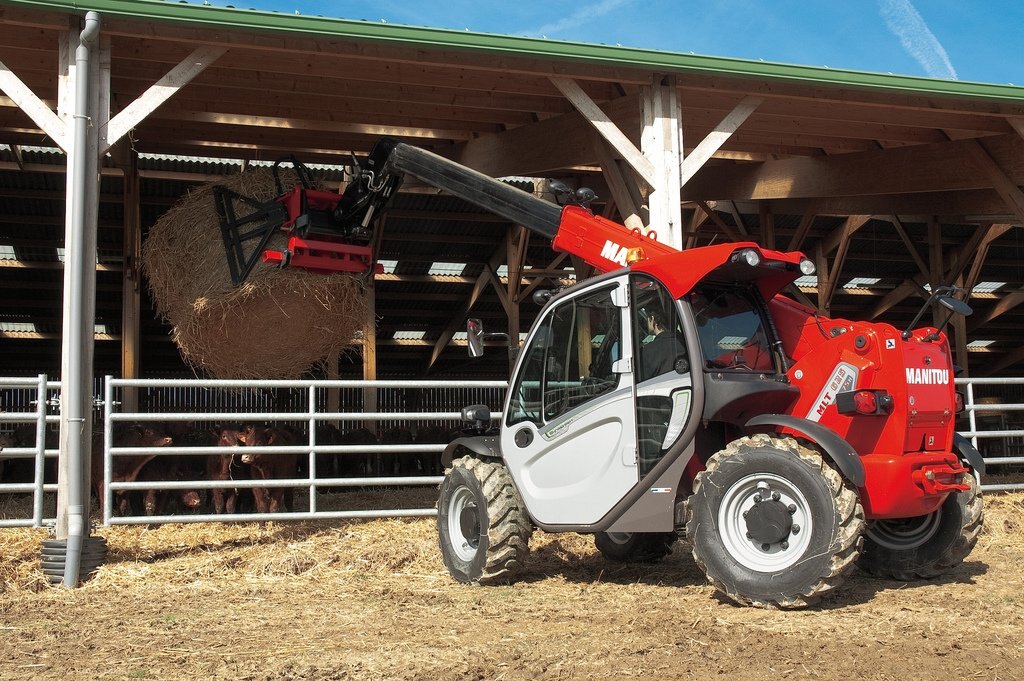

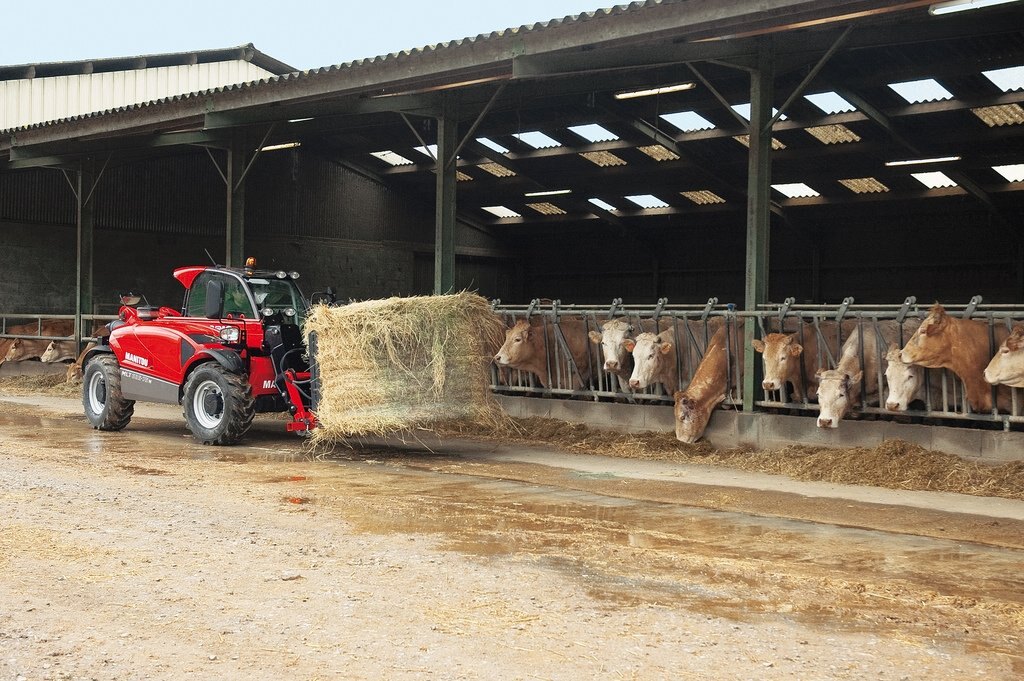

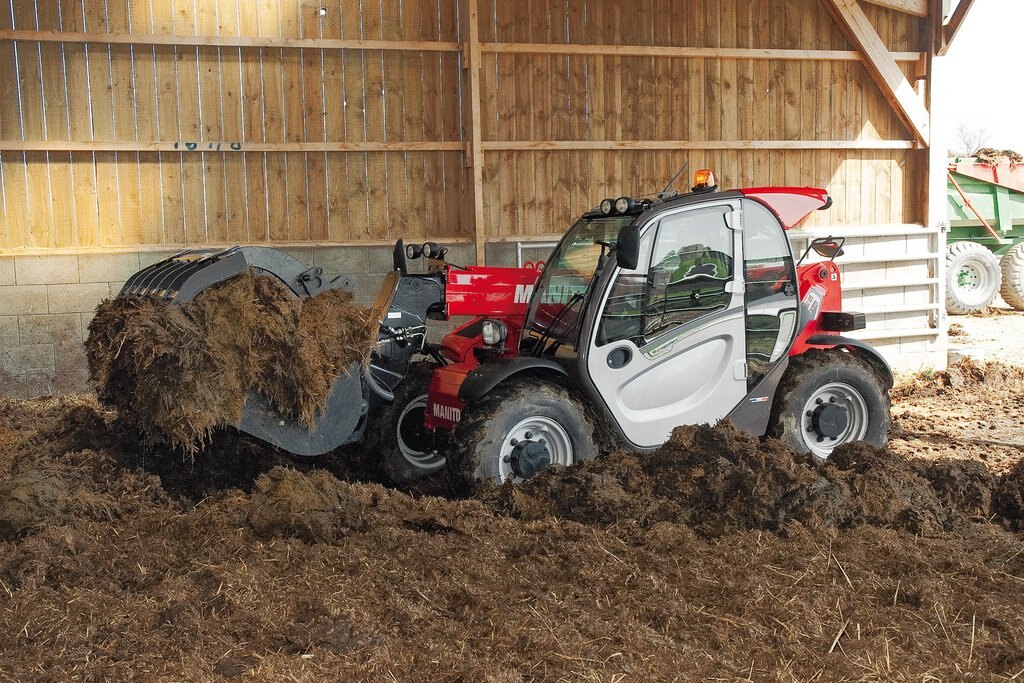

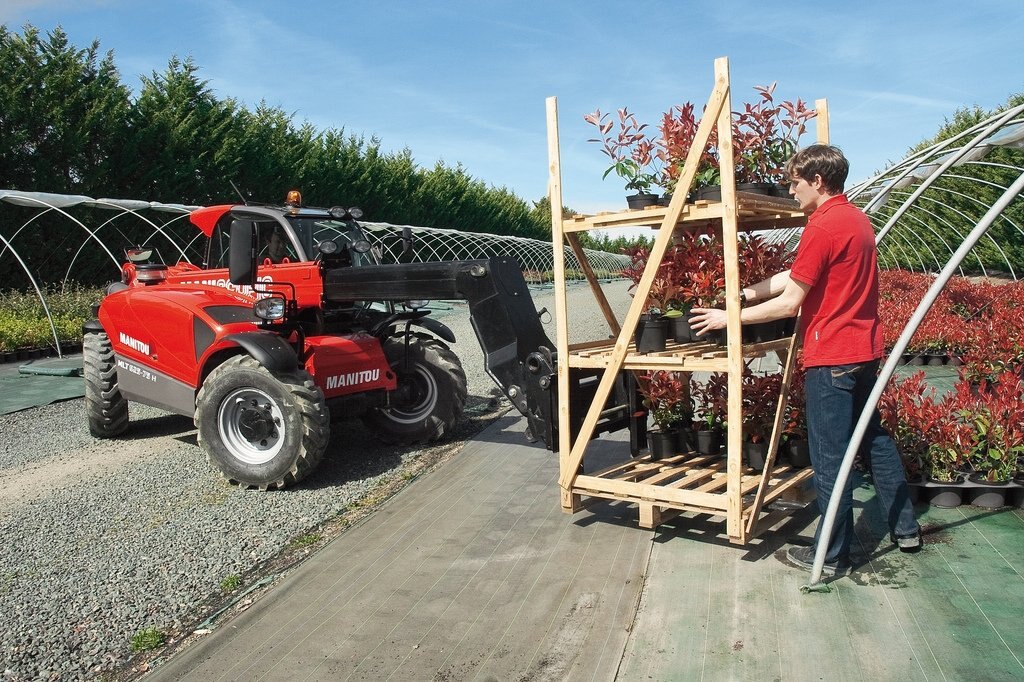

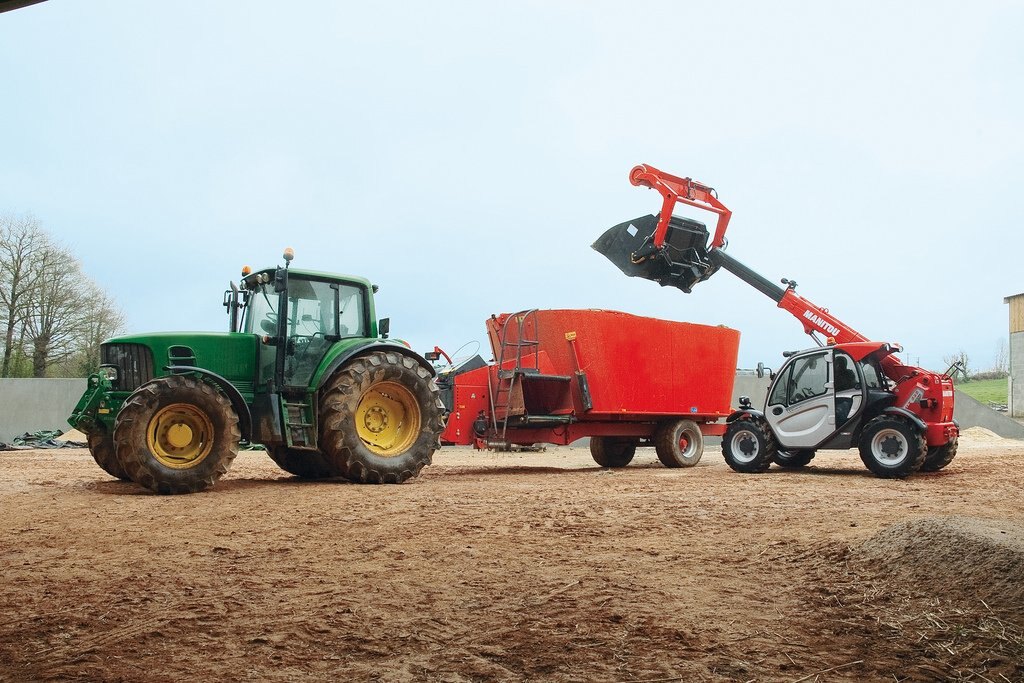

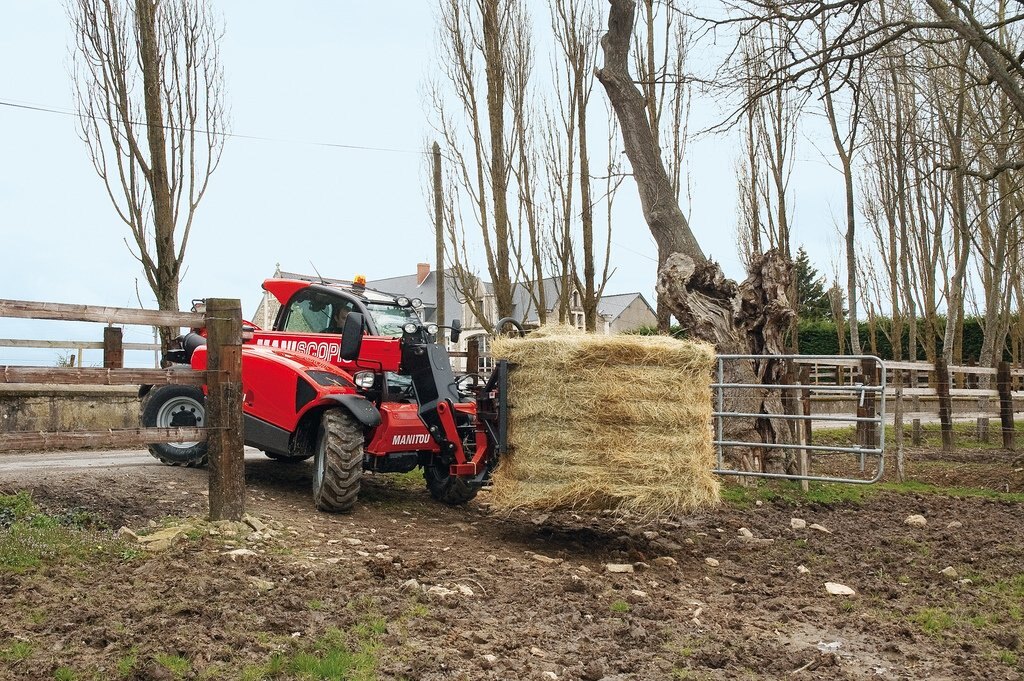

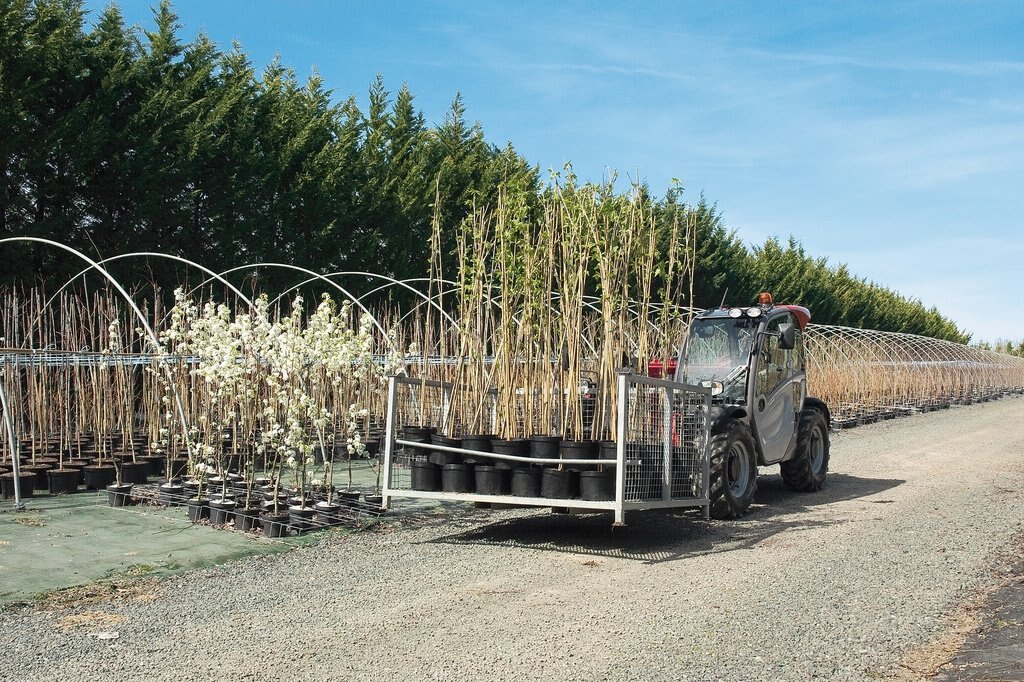

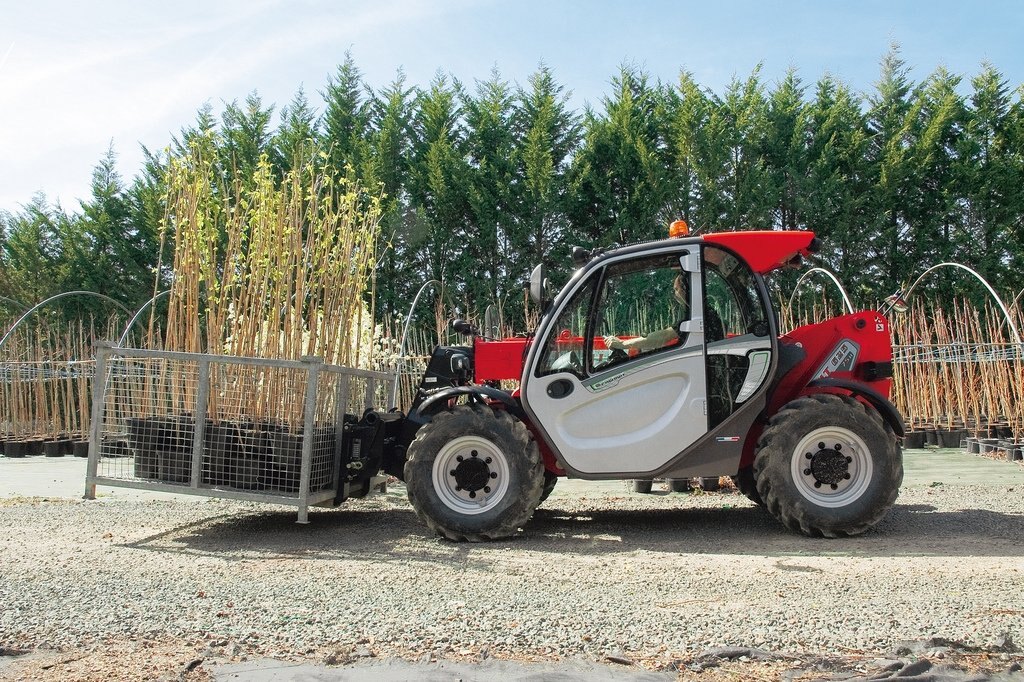

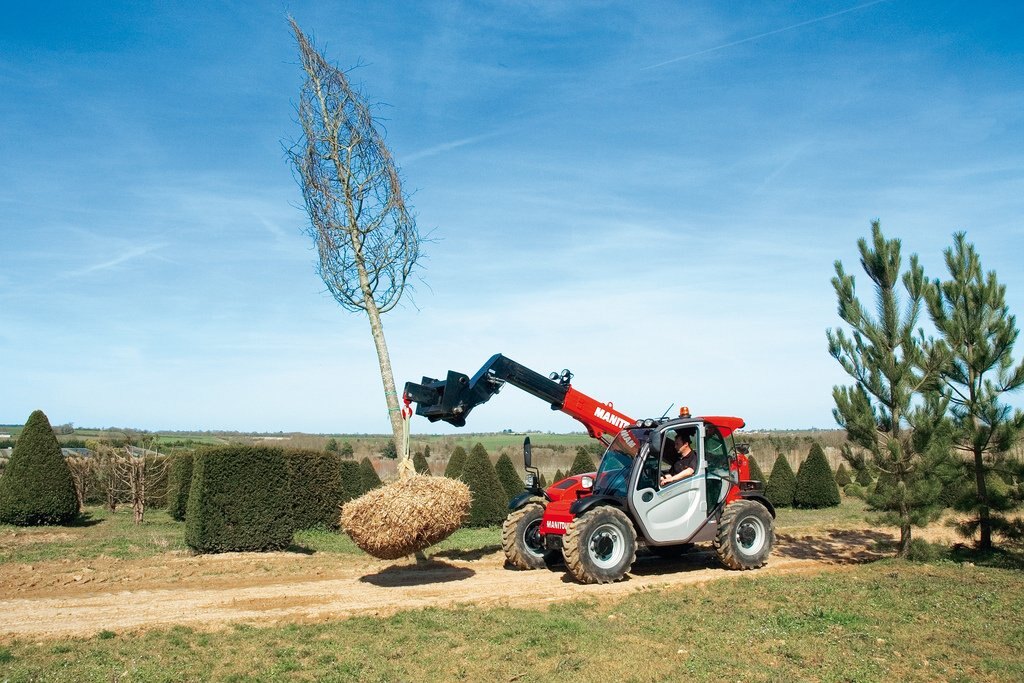

The MLT 625-75 H is an incredibly compact machine. Specially designed for agricultural activities, it will prove to be an asset when tackling the daily tasks that need to be done on your farm. Its compact dimensions ensure unparalleled manoeuvrability for access to smaller buildings and tight spaces. The comfort of the driver's cab, sound insulation (up to 76 dB), full 360° visibility and JSM (Joystick Switch & Move) controls are just some of the features that make working days safer and less exhausting.

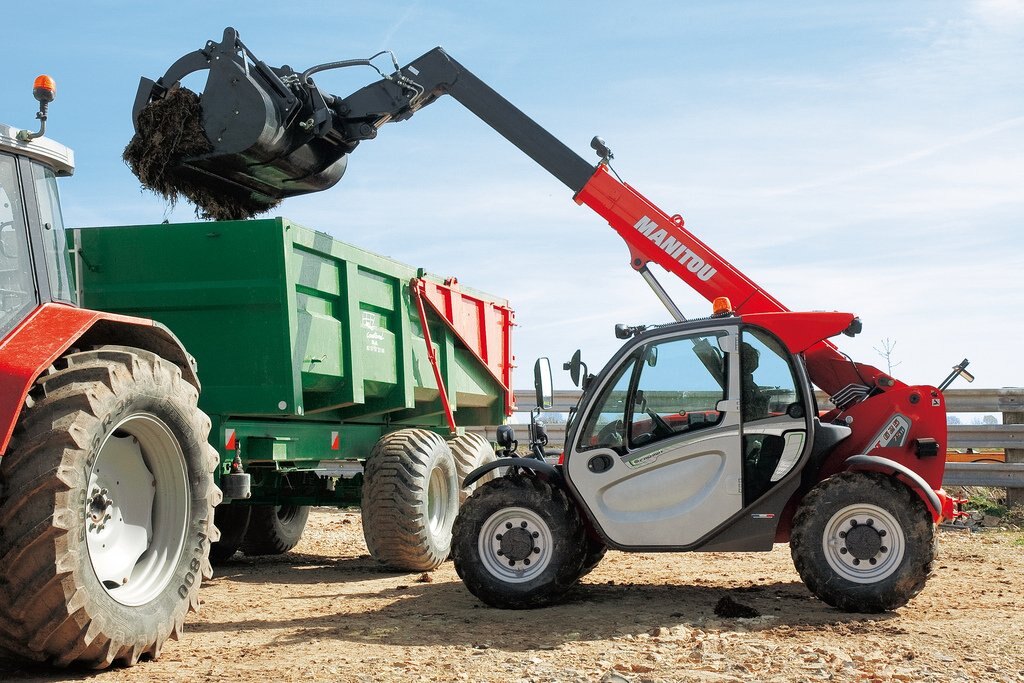

The Easy Connect System (ECS) makes swapping boom tip attachments easy and the sheer number available provides you with the versatility your farm requires. Hydraulic movements are precise and smooth and 4 driven and steered wheels combined with 3 steering modes optimise unit flexibility, regardless of the situation.
  Standard equipments
  • Mechanical cloth seat
  • Tuner car radio (50 W)
  • Auto reversing fan
 Technical data sheet


Performances
Load chart (EN1459-B) :

Manitou%2F28c0d34d D1f2 44a9 91e7 B17eb55cdf56 Ab01m Mlt625 75h B 0217

Dimensions

Length (up to the back of the fork) 3.9 m 12'11"
Wheelbase length 2.3 m 7'7"
Width 1.81 m 5'1"
Height 2 m 6'7"
Weight (unladen) 4922 kg 10851 lb
Turning radius 3.31 m 10'1"
Ground clearance 0.38 m 0'2"
Lifting height 5.9 m 19'5"
Lifting capacity 2500 kg 5512 lb
Max reach 3.3 m 10'11"
Breakout force 4205 dan 9453 lbf
Lifting time (unladen) 7.3 s
Lowering time (unladen) 4.95 s
Boom extension time (unladen) 5.2 s
Boom retraction time (unladen) 3.7 s
Crowd 3.2 s
Dump 3.2 s
Manitou%2F531e6f9f 26da 4576 B515 D47940d8c67e Vuepg Mlt625 B 0217   Manitou%2F85b2298a F8e4 4281 Ae4c 4f9ac344352d Vueds Mlt625 B 0217
Manitou%2F9abe99aa 9944 4463 B514 D713d2b74623 Vueav Mlt625 B 0217

Engine / Battery

Energy Diesel
Engine brand Kubota
Engine type 3B / Tier IV Final
Engine manufacturer type V3307-DI-T-E4B
Power 75 ch 75 hp
Power 55.4 KW
Max. Torque @ Rotation 265 Nm @ 1400 tr/min
Number of cylinders 4
Total capacity 3331 cm3 204 in3
Transmission type Hydrostatic

Hydraulic

Pressure 235 bars
Hydraulic oil tank volume 115 l 30 gal

Other specifications

Number of wheels (front/rear) 2/2
Number of drive wheels (front/rear) 2/2
Parking brake Automatic negative handbrake
Driving position noise levels 76 dB
Environmental noise levels 104 dB
Vibrations affecting hands/arms <2.5 m/s




Specifications
Model
MLT 625 75 H
Category Name
Tractors
Year
2018
Sale Type
New
Manufacturer
Manitou
