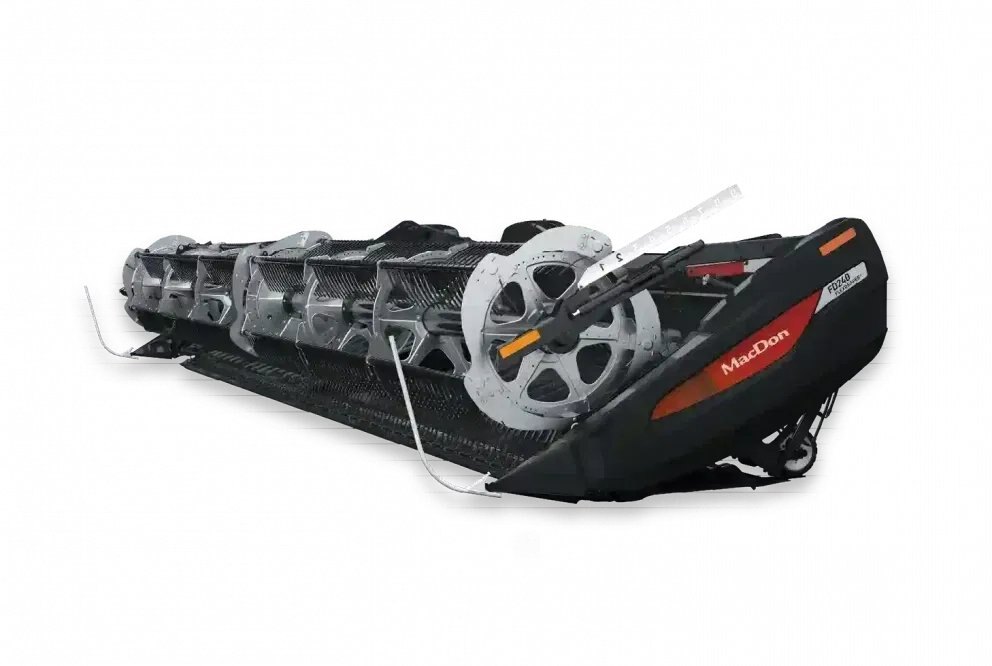

MacDon FD2 Series FlexDraper®

  • MacDon FD2 Series FlexDraper®
  • MacDon FD2 Series FlexDraper®
  • MacDon FD2 Series FlexDraper®
  • MacDon FD2 Series FlexDraper®
  • MacDon FD2 Series FlexDraper®
  • MacDon FD2 Series FlexDraper®
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Bigger. Faster. Flexier.

More Capacity. More Speed. More Flex. The all-new FD2 gives you more of everything you need for harvesting performance from the company that brought you the Original FlexDraper®.

YOU'RE GONNA
NEED A BIGGER SHED!

FD261 FlexDraper®: The Biggest FlexDraper Ever!
At 61 feet wide with 50-inch deep drapers, this is the highest capacity FlexDraper MacDon has ever produced. Compared to our 50-foot FD250, the FD261 gives you an additional 22% of overall capacity.

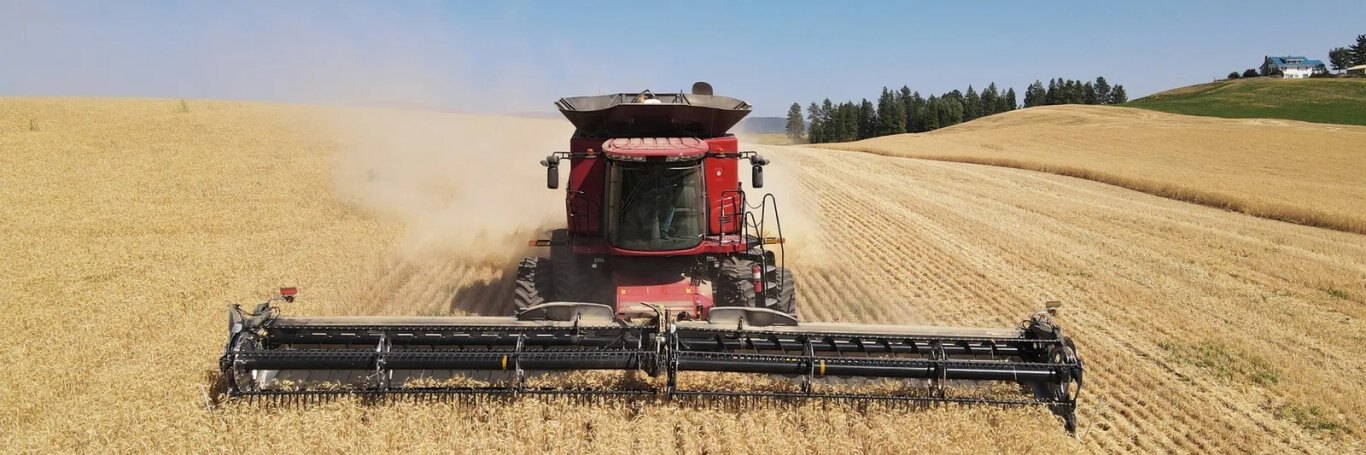

The FD261 FlexDraper® is a fully flexing 61-foot draper header. The FD261 provides you with 61 feet of true ground following flex, and our close reel-to-cutterbar relationship ensures efficient heads-first crop flow over the entire 61-foot span of the header.

A controlled traffic solution, the 61-foot gathering width is ideal for controlled traffic farming. For everyone else, it's a MacDon FlexDraper with a 61-foot gathering width!
Specifications
Model
FD2 Series FlexDraper®
Category Name
Agriculture
Year
2026
Sale Type
New
Manufacturer
MacDon
More Flex
70%
More Speed
30%
More Capacity
20%
features

A Ground Following Dream.

MacDon's legendary ground-following ability continues with the FD2. MacDon's Active Float System gets coupled with up to 70%* more flex for a harvesting experience like never before. Flex-Float Technology® gets turned up with MacDon's optional ContourMax™ Contour Wheels. These wheels allow the header to follow the field's contours, leaving a consistent stubble height while cutting from 1 to 18 inches+ off the ground.

+2.5 cm (1”) / 45.7 cm (18”)

*Compared to previous model.

Cut Cleaner. Cut Faster. Cut More.

MacDon's ClearCut™ High-Speed Cutting System delivers just that; clean cutting at up to 30% faster speeds*. Helping you get there is MacDon's improved knife drive with more power and new knife section geometry with 25% more cutting surface. A smooth close shave comes from two unique ClearCut Knife Guards; choose between Pointed Knife Guards or PlugFree™ Knife Guards that resist plugging even in the nastiest conditions.

High Volume Heads-First Feeding.

The FD2's all-new frame features an ultra-deep deck with 50 inch deep drapers and is now available in 25 to 61 foot configurations. The FD2 delivers up to 20%* more capacity of smooth heads-first feeding in the tallest bushiest crops it can get its reel fingers on. No matter what type of combine you mount it to, the FeedMax™ Crop Feeding System optimizes performance. Along with active crop flow, patented reel movement, and new ShatterGuard reel positioning, the FD2 is ready for action+.

+127 cm (50”), 7.6 m (25’) to 18.5 m (61’)

*Compared to previous model.

Purposefully Designed to Make Harvest Easy.

We all know harvest time is go time, and with the FD2, you won't waste time messing around. The FD2 lets you get the job done without the struggle: easy set-up, easy operation, easy upgrades. From the quick set-up of the EasyMove™ Transport to seamless combine integration, the FD2 is always ready for action!

Get Ready for More.

The FD2 FlexDraper® is the evolution of the ground following innovation MacDon first brought to market almost 20 years ago. Like we did then, we listen to and work with you, the farmer, in the most challenging real-world conditions. What does that mean for you? More. More sizes, more durability, more harvesting innovations. So, in case you're not convinced yet, here are a few more reasons why the FD2 is the right investment for your operation!

Performance Options

WHAT IT IS/DOES

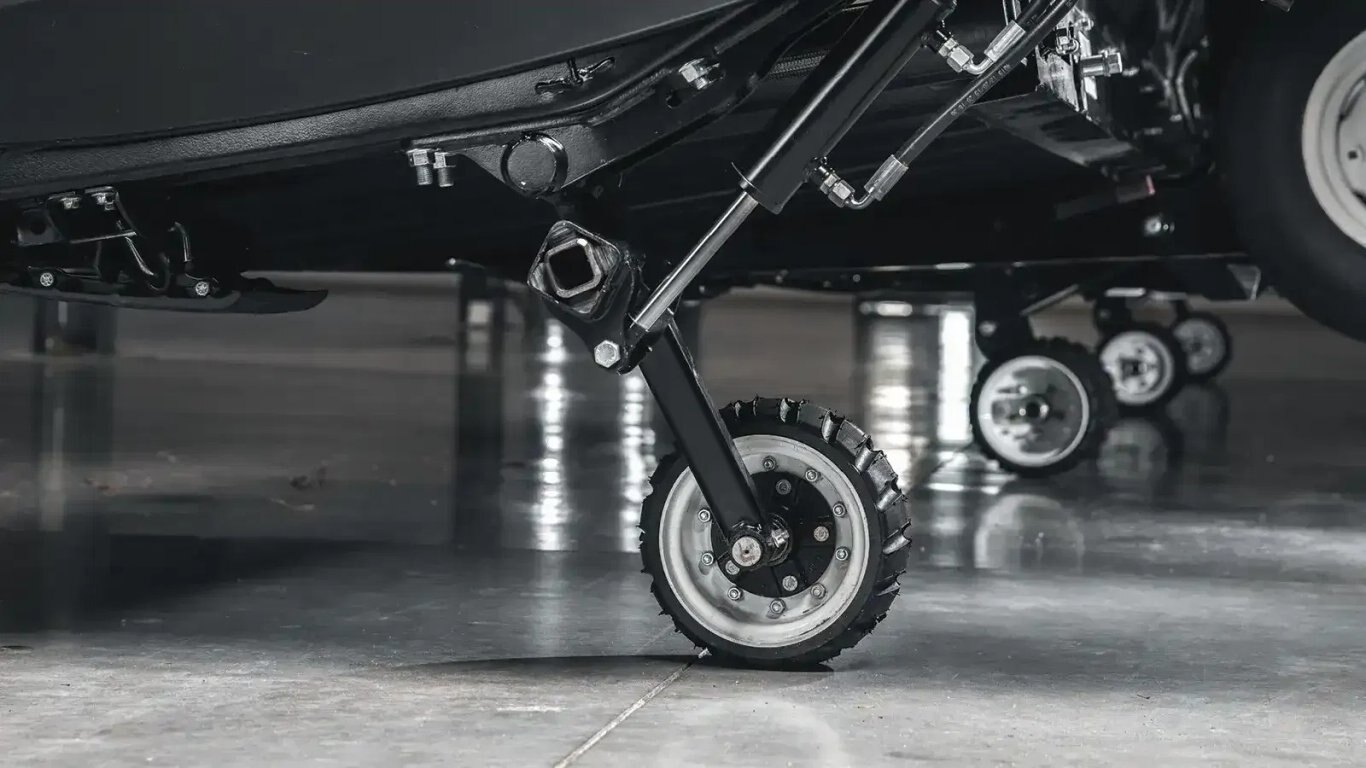

Take FlexDraper® Performance Over the Top! The ContourMax™ Performance Option is a simple hydraulic system that uses strategically placed wheels under the FlexDraper. This design takes full advantage of the FlexDraper’s Flex/Float system mirroring the contours of the field while cutting up to 457 mm (18") from the ground surface. Using ContourMax sets you up for next year’s seeding with a consistent even stubble height

FEATURES/BENEFITS

  • Takes full advantage of the FlexDraper’s Flex/Float system mirroring the contours of the field while cutting up to 457mm (18") from the ground surface.
  • Stubble heights between 25.4mm (1") and 457 mm (18") from the ground surface*
  • Adjustable in-cab and on-the-go

* True range varies slightly depending on combine brand. Hydraulic line kits needed for headers WITHOUT factory installed plumbing
fd2 flexdraper® specifications
Size* 7.6 m (25’) 9.1 m (30’) 10.6 m (35’) 12.2 m (40’) 12.5 m (41’) 13.7 m (45’) 15.2 m (50’) 18.5 m (61’)

Weight** Single Knife Drive without FM200

2,288 kg (5,043 lbs)

2,751 kg (6,063 lbs)

2,928 kg (6,453 lbs)

3,065 kg (6,755 lbs)

 - - - -

Weight** Double Knife Drive without FM200

 - -

3,025 kg (6,667 lbs)

3,152 kg (6,947 lbs)

3,381 kg (7,453 lbs)

 - - -

Weight** Double Knife Drive with Triple Reel without FM200

 - - -

3,307 kg (7,289 lbs)

 -

3,543 kg (7,808 lbs)

3,764 kg (8,296 lbs)

4,955 kg (10,922 lbs)

Knife: Type / Drive / Speed

Single or Double knife / Hydraulic, MacDon design enclosed oil bath knife drive box(es). Adjustable speed. Up to 1500 spm depending on header size.

Guard Types Available

ClearCut™ Pointed Guards - Forged and Double Heat Treated (DHT) with Forged, Single Bolt Adjustment Hold-Down; ClearCut™ PlugFree™ Short Guards - Forged and Double Heat Treated (DHT) with Forged, Dual Bolt Adjustment Hold-Down

Reel: Type / Drive / Speed / Fingers

Pick-up reel, five bats, one-piece (single),two-piece (double) or three-piece (triple), flip-over design, cam-leading finger control / Hydraulic / 0 to 67 rpm (varies depending on combine model) / 290 mm (11.4”) length, wear-resistant HD plastic, 102 mm (4”) spacing

Conveyor: Type / Drive / Speed

1270 mm (50”) deep, reversible, rubber skim-coated drapers, double V-guide with tracking, integral seal on leading edge / 0 to 209 m/min (0 to 687 ft/min)

Standard Features

Fits most current model combines, hydraulic fore-aft reel positioner, hydraulic header tilt, in-cab side draper speed control, cutterbar poly wear plates, auto-header height with header angle and ground pressure indicators

Field-Installed Options***

EasyMove™ Transport System, ContourMax™ Contour Wheels, Upper Cross Auger, VertiBlade™ Vertical Knife, stabilizer wheels, lateral tilt automatic header height control, sunflower attachment

*Note: Product size availability varies by market.

**Note: Listed weights are for basic header configuration. Weights may vary with additional performance options. See your MacDon dealer for details.

***Note: EasyMove™ Transport System is not available for the FD261
fm200 float module specifications
  Center Draper Feed Auger

Weight

1083 – 1171 kg (2387 – 2581 lb), varies by combine configuration

Size

2000 mm (78.7”) width

1630 mm (64.1”) width

Type

Hydraulic drive (reversible), self tracking rubber coated polyester fabric feed draper with rubber slats

Mechanical drive (reversible), removable retracting fingers with bolt on flighting

Speed

107-122 m/min (350-400 ft/min), varies with combine brand

191 - 195 rpm, varies with combine brand

Header Floatation: Type/Vertical Range/Lateral Range (Tilt)

2 pairs of coil springs, independent adjustment, transport lock-out / 178 mm (7”) / 4.8 degrees
fd2 flex range
Standard (Factory) Range Increased Range*

FD225 Single Reel

102 mm (4") up & 64 mm (2.5") down

102 mm (4") up & 102 mm (4") down

FD230 Double Reel

165 mm (6.5") up & 130 mm (5") down

165 mm (6.5") up & 165 mm (6.5") down

FD235 Double Reel

205 mm (8") up & 130 mm (5") down

205 mm (8") up & 205 mm (8") down

FD240 Double Reel

205 mm (8") up & 130 mm (5") down

205 mm (8") up & 205 mm (8") down

FD241 Double Reel

205 mm (8") up & 130 mm (5") down

205 mm (8") up & 205 mm (8") down

FD240 Triple Reel

205 mm (8") up & 205 mm (8") down

FD245 Triple Reel

216 mm (8.5") up & 216 mm (8.5") down

FD250 Triple Reel

216 mm (8.5") up & 216 mm (8.5") down

FD261 Triple Reel

216 mm (8.5") up & 216 mm (8.5") down

*Note: The flex range can be increased by removing the flex limiter, however a greater reel to cutterbar clearance is required. This is a customer configuration; instructions in Operators Manual
fd2 total flex range (includes lateral float)*
Total Flex Range

FD225 Single Reel

508.25 mm (20.01")

FD230 Double Reel

696.98 mm (27.44")

FD235 Double Reel

833.88 mm (32.83")

FD240 Double Reel

894.84 mm (35.23")

FD240 Triple Reel

894.84 mm (35.23")

FD241 Double Reel

907.54 mm (35.73")

FD245 Triple Reel

981.20 mm (38.63")

FD250 Triple Reel

1042.16 mm (41.03")

FD261 Triple Reel

1178.81 mm (46.41")

*Note: Independent of combine
advantages
  • • 50-Inch (127 cm) Deep Drapers
  • • Active Float System Supports up to 97% of the Header's Weight
  • • Up to 41-Inches (104 cm) Total Wing Range Independent of the Combine
  • • Close Reel-to-Cutterbar Relationship for Smooth Heads-First Feeding
  • • Seamless Combine Integration
  • • Multi-Crop Header
