Overview

Straight Up Harvesting Performance

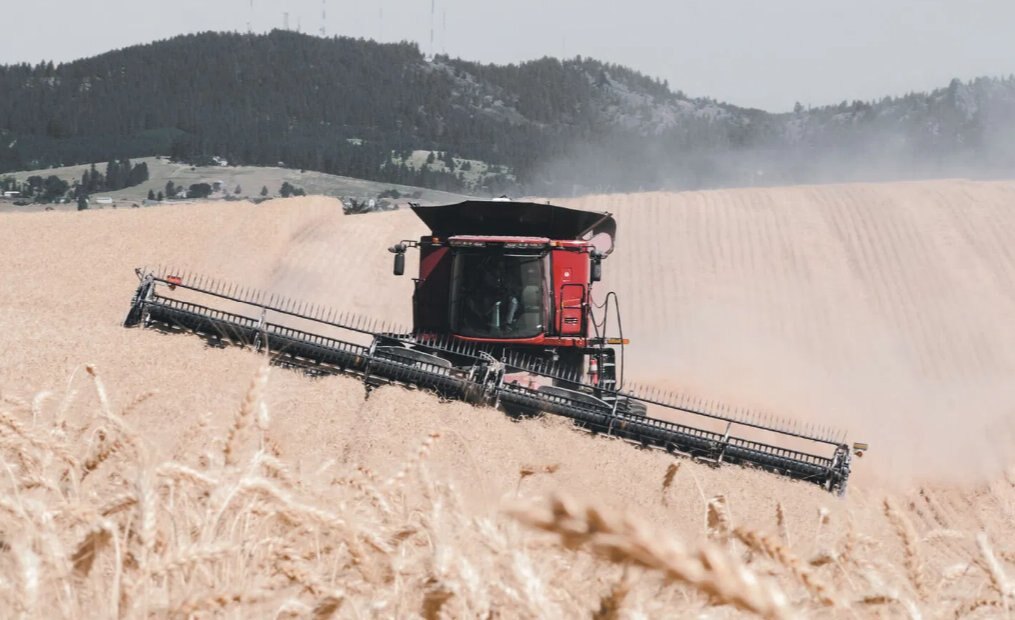

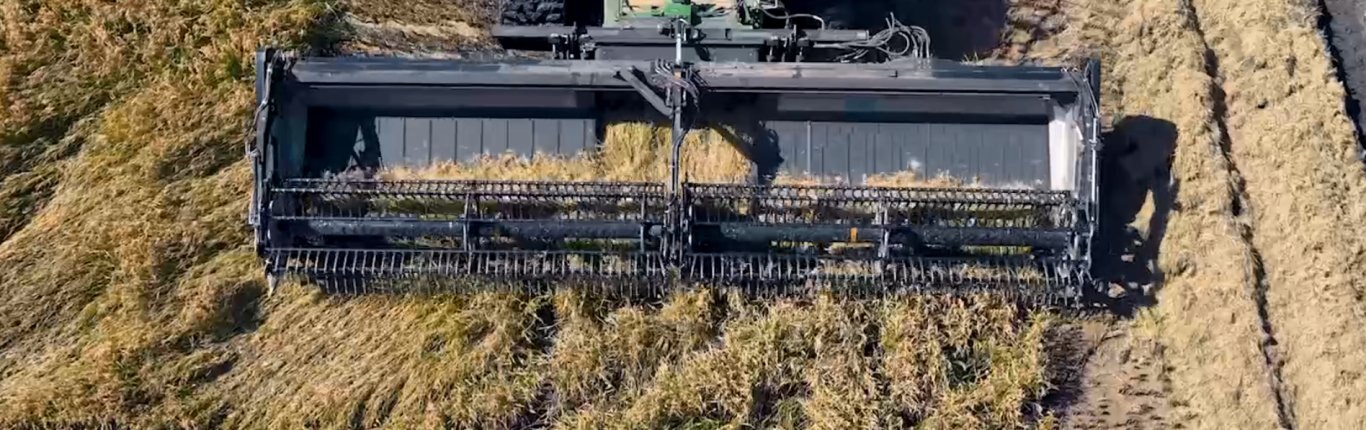

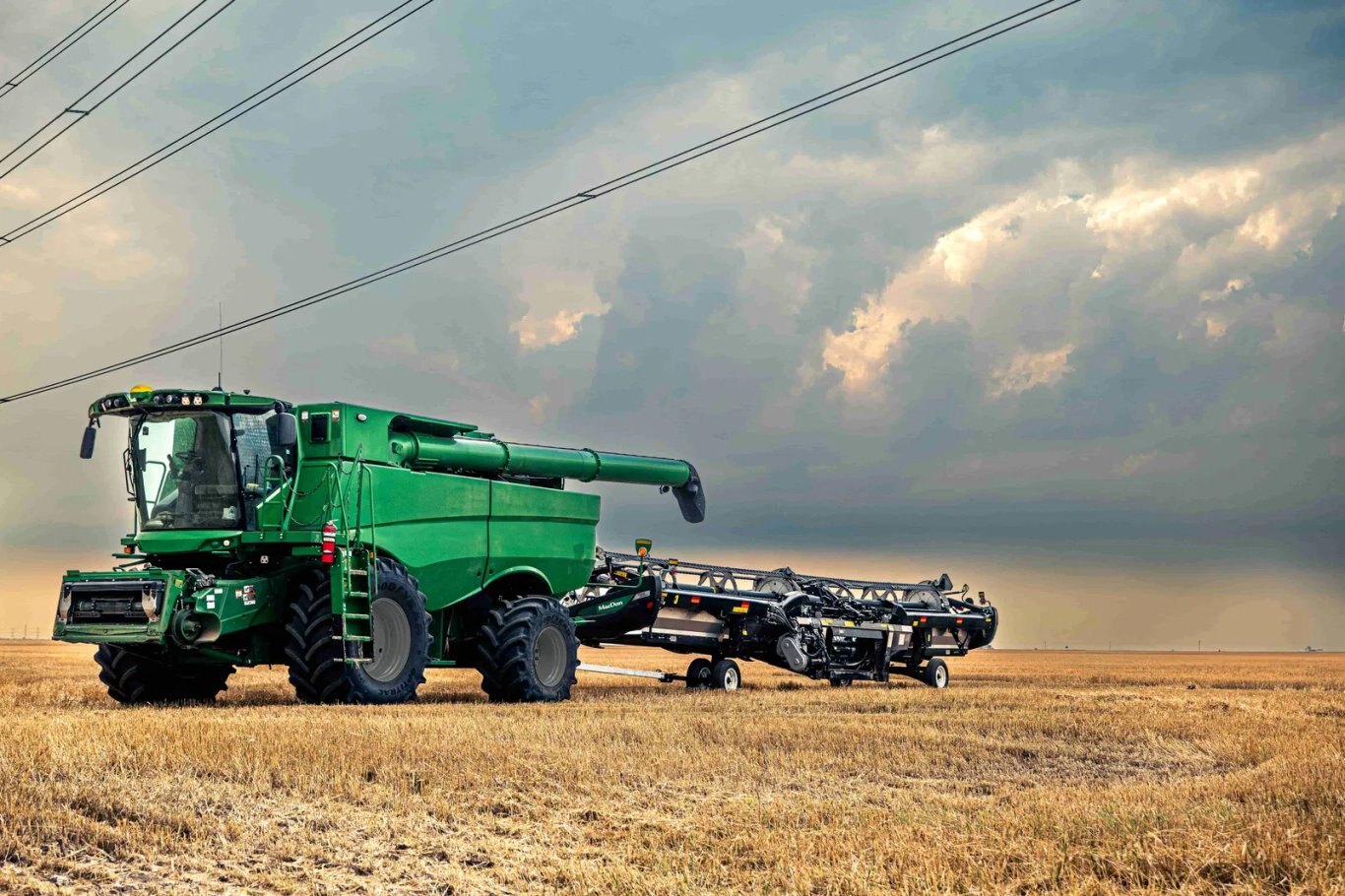

MacDon D2 Series Combine Headers deliver all the best performance and innovation of the FD2 FlexDraper®, in a rigid platform. The D2 boasts an all-new frame that features a super structured five-sided back tube. This solid backbone is ready to handle up to 20% increased capacity* from an ultra-deep 50-inch+ draper deck. And that draper gets filled up a lot quicker thanks to MacDon's ClearCut™ High-Speed Cutting System. Wrap it all up with MacDon's rock-solid reliability, and the D2 gets you more from every acre.

+ 127 cm (50")
Specifications
Model
D2 SERIES
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
MacDon
advantages
  • 50-Inch (127cm) Deep Drapers
  • Active Float System - Supports up to 97% of Header Weight
  • Seamless Combine Integration
  • Multi-Crop Header
d2 draper header specifications
Size* 7.6 m (25’) 9.1 m (30’) 10.6 m (35’) 12.5 m (41’) 13.7 m (45’)

Weight** Single Knife Drive without FM200

2,276 kg (5,017 lbs)

2,712 kg (5,977 lbs)

2,936 kg (6,471 lbs)

 - -

Weight** Double Knife Drive without FM200

 - - -

3,197 kg (7,046 lbs)

3,387 kg (7,464 lbs)

Knife: Type / Drive / Speed

Single or Double knife / Hydraulic, MacDon design enclosed oil bath knife drive box(es) / 1200-1400/1500 spm, varies depending on header size

Guard Types Available

ClearCut™ Pointed Guards - Forged and Double Heat Treated (DHT) with Forged, Single Bolt Adjustment Hold-Down; ClearCut™ PlugFree™ Short Guards - Forged and Double Heat Treated (DHT) with Forged, Dual Bolt Adjustment Hold-Down

Reel: Type / Drive / Speed / Fingers

Pick-up Reel, six bats, one-piece (single) or two-piece (double), flip-over design, cam-leading finger control / Hydraulic / 0 to 67 rpm (varies depending on combine model) / 290 mm (11.4”) length, wear-resistant HD plastic, 102 mm (4”) spacing

Conveyor: Type / Drive / Speed / Delivery

1270 mm [50”] / Hydraulic / FM200 (Combine Float Module) - 0 - 209 m/min [687 ft/min] / 15’ (on SP Windrower) -1395 - 1525 mm [54.9” - 60.0”]

Field-Installed Options

EasyMove™ Transport System, Upper Cross Auger, VertiBlade™ Vertical Knife, stabilizer wheels, lateral tilt automatic header height control, Sunflower attachment

NOTE: *Product size availability varies by market
fm200 float module specifications
Center Draper Feed Auger

Weight

1083 – 1171 kg (2387 – 2581 lb), varies by combine configuration

Size

2000 mm (78.7”) width

1630 mm (64.1”) width

Type

Hydraulic drive (reversible), self tracking rubber coated polyester fabric feed draper with rubber slats

Mechanical drive (reversible), removable retracting fingers with bolt on flighting

Speed

107-122 m/min (350-400 ft/min), varies with combine brand

191 - 195 rpm, varies with combine brand

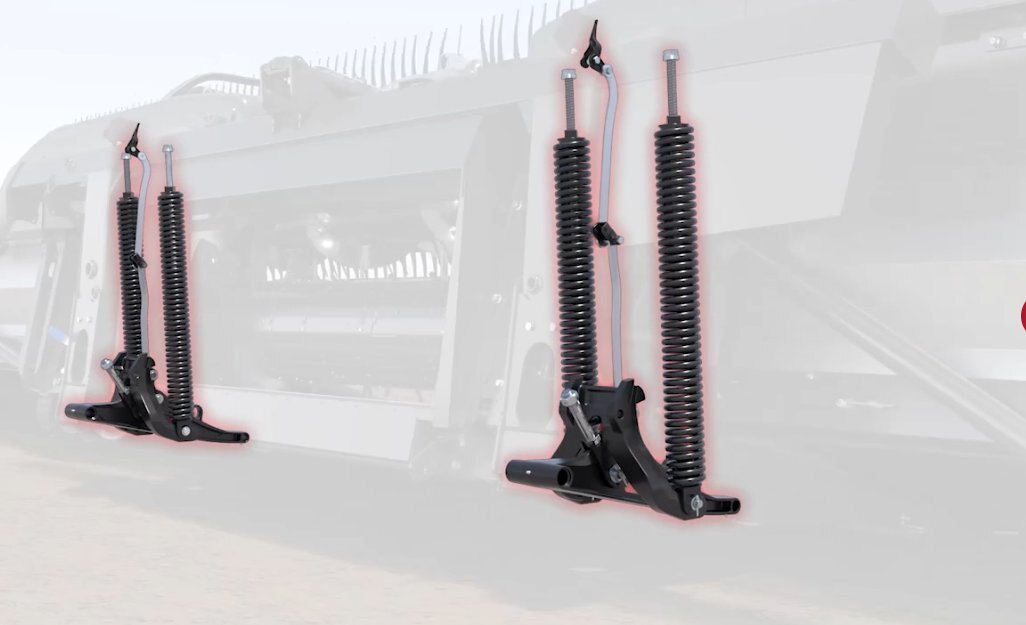

Header Floatation: Type/Vertical Range/Lateral Range (Tilt)

2 pairs of coil springs, independent adjustment, transport lock-out / 178 mm (7”) / 4.8 degrees
literature
Name Link
D2 Series with FM200 Unloading and Assembly Instructions (North America) (Model Year 2025) 262749 Revision A Download
