ID # 13623035

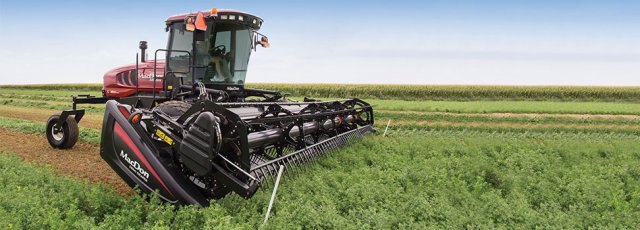

MacDon M105

  • MacDon M105
  • MacDon M105
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Windrowing technology takes another leap forward

How do you improve a machine that has set industry benchmarks for speed and productivity? The answer is you focus on pushing the boundaries even further; things like giving every model a horsepower boost, improving operator comfort with an all-new suspension system and boosting infield performance with an upgraded header drive. What you won’t find changed are the things operators loved, such as intuitive controls, easier maintenance and the exclusive Dual Direction® technology that permits faster travel to and from the field at road speeds up to 23 MPH (37 km/h).
  Features

http://macdon.com/uploads/images/_sized/1ccb96ad78dafbcab84a81a4bf82d6596a105a90.jpg UP-POWERED WITH CUMMINS ENGINES

All M Series Windrowers have received a significant horsepower boost thanks to the addition of Cummins engines across the board. At the top of the scale is the M205, which takes on all challenges thanks to its high powered Cummins turbo diesel engine (220 HP/164 kW at a rated 2,200 RPMs) that can automatically power boost to 230 HP (170 kW) when in extreme conditions. Powerful enough to run draper headers up to 40' (12.2 m), this tier 3 engine is fuel efficient and environment friendly. Equipped with Intermediate Speed Control (ISC) all header functions operate at full power with reduced engine RPM for increased fuel savings. Both the M155 and M105 also enjoy upgraded power with new tier 3 Cummins engines of their own.



M Series Engine Specifications
  M205 M155 M105
Rated 220 HP 148 HP 110 HP
Boosted 230 HP 156 HP 115 HP
Refer to specifications for RPM details
69585d6bbcdc31bf4e04be995ec200c7c34fe41f
EXCEPTIONAL CROP CLEARANCE

The M Series frame features a wide wheel stance and an unobstructed, unmatched 45.7" (1160 mm) below frame clearance when cutting bushy crops.


NEW MORE EFFICIENT HEADER DRIVE

To ensure that every ounce of power being generated is effectively delivered to the header drive motor, the M205 Windrowers feature a completely new header drive with a load-sensing circuit. The result is a simpler – more efficient – design with fewer working components that promises to be more constant, more dependable in tough cutting conditions. The header lift speed has even been increased thanks to a larger hydraulic pump. Add draper or auger headers with ease with a simple valve block.

1a15a3c3b5185a193b035be498c237c10d5b46d9
MAKING YOU FASTER IN THE FIELD, FASTER BETWEEN FIELDS AND FASTER HOME

Switching from field to highway mode takes only three seconds with MacDon’s Dual Direction® technology. (Available on M205 and M155).

MacDon’s patented Dual Direction® technology (models M205 and M155) allows you to switch to highway travel mode in seconds and travel at highway speeds of up to 23 MPH (37 km/h). Better still, there is no need to detach the header and transport it via flatbed, saving you even more time and labor when moving from field to field. (Limitations may occur due to road width restrictions with larger headers.)

http://macdon.com/uploads/images/_sized/1ccb96ad78dafbcab84a81a4bf82d6596a105a90.jpg
ERGONOMIC CAB

MacDon’s ergonomic cab, designed specifically for windrowing, ensures operator control and comfort during long harvest days. Its cab forward design and curved glass provide unparalleled visibility of the cutterbar, the stubble and full field conditions.

7ae65df63784d070163bd1daa5d8903888277553
NEW ULTRA GLIDE™ SUSPENSION SYSTEM

M Series Windrowers are not just all about muscle and power; they also have a softer side, thanks to MacDon’s new Ultra Glide™ Cab suspension system. This four-corner “custom tuned” independent suspension system features suspension stabilization to prevent cab roll and “chop” for what is likely to be the smoothest ride you’ve ever experienced in a windrower.

7ae65df63784d070163bd1daa5d8903888277553
COMPUTERIZED CUTTING CONTROL WITH HARVEST MANAGER PRO

M Series Windrowers come with a fully computerized monitoring and header control system that provide the operator with real time readout of the header’s cutting performance and critical information. Operators will also enjoy easy, intuitive fingertip control of all header functions including MacDon’s highly popular “return-to-cut” feature that allows the operator to precisely return the header to the same setting after lifting it. The M105 features the Harvest Manager which includes some of the same monitor read-out display functions.


EASY UNPLUGGING FROM THE CAB

MacDon’s Hydraulic Header Reverser (optional for M205 and M155 windrowers) allows the operator to quickly unplug the conditioner and other major header components on augers and drapers without leaving the operator’s station.

38e51abb40a35812a97ed3da59dd219b9a398983
NEW ENHANCED AIR INTAKE AND EXHAUST SYSTEM

All regular engine and hydraulic maintenance points are within easy reach thanks to MacDon’s patented movable rail platform. The cooling system’s cores are easily slid or swung out for fast cleaning.

To accommodate the larger engine, the M205 and M155 feature a completely redesigned air intake and exhaust system which has resulted in a reworking of the windrower’s body and hood to allow for greater airflow into the engine. To keep up, the air filter has also been enlarged which has provided the added bonus of longer periods between service intervals.

9a7fcc241c20398e7e6f77145c7ea5c4a3f8cf61
Sliding platforms.

The sliding platform can be moved back to front to allow access to a number of service points including fuel fill, engine air filter, engine service points and access to cab doors. Additionally, the platform can be moved rearward to allow service of electrical and hydraulic components on the windrower.

Bcab0b18dcadbaacd284400d70396c96af360233
Large and easy access toolbox.

The new larger toolbox is attached to the sliding platform to ensure that tools and replacement components are available when required.




Specifications
Model
M105
Category Name
Agriculture
Year
2017
Sale Type
New
Manufacturer
MacDon
Engine
Cummins, 4.5 L, (275 cu. In.), 4 cylinder, turbo
Horsepower
Rated 110 HP (81 kW) @ 2,500 RPM, power boost to 115 HP (86 kW) @ 2,300 RPM
Weight
8,820 lb. (4000 kg)
Fuel Tank
97 U.S. gal. (367 L)
Front Tread Width
134.25 in. (3410 mm)
Rear Tread Width
Adjustable from 96.4 in. (2448 mm) to 135.7 in. (3448 mm)
Wheel Base
158.3 in. (4020 mm) field position
Crop Clearance
45.7 in. (1160 mm)
Drive Wheels
18.4 x 26 bar or turf, 23.1 x 26 turf or 600/65 R28 radial bar
Tail Wheels
7.5 - 16 SL or 10 x 16 formed casters, 10 x 16 or 16.5L - 16.1 forked casters
Transmission
Hydrostatic, 2-speed electric shift motors
Field Speed
0-11 MPH (18 km/h)
Road Speed
0-16 MPH (26 km/h)
Final Drive
Planetary gearbox
Cab Equipment
Single direction operator station
Batteries/Alternator
2, 12-volt/130 AMP
