THE ULTIMATE IN DRAPER PERFORMANCE

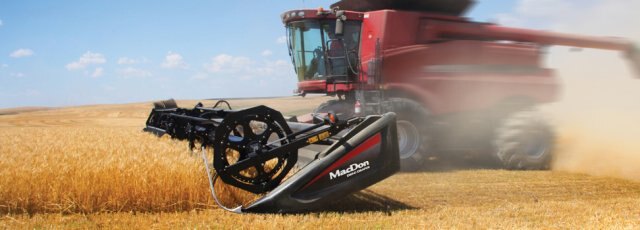

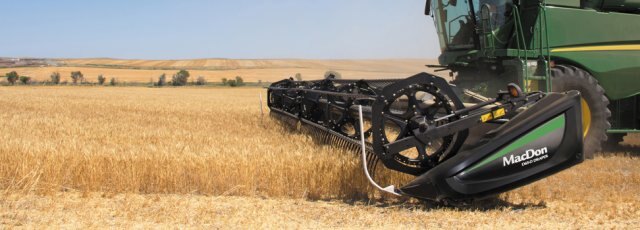

The MacDon D65 Draper Header is designed to deliver outstanding straight cut performance, especially when faced with tough harvesting conditions. Low podding, downed, tangled, or even lodged crops; whatever the harvesting situation the MacDon D65 Draper Header excels. Combining or swathing, the D65 is a true multi-crop harvesting solution. This “Can Do” attitude delivered with MacDon reliability and performance, is the reason why MacDon Draper Headers are a great fit for so many of today’s operations.

CRITICAL GAP - IT'S THE FD75 ADVANTAGE

The MacDon FD75 FlexDraper® features a fixed cutter bar to reel relationship. This means a small critical gap between the reel fingers and the cutter bar is maintained at all times, even when in full flex. This small gap ensures smooth, consistent, heads-first feeding of the crop over the entire width of the FlexDraper® Header, up to 45' (13.7m). That’s innovation significantly boosting combine productivity.

PARKER HOSES AND COUPLERS



By using high quality Parker hoses throughout the D65, we have been able to provide the most reliable Draper Header to date.

IMPROVED VISIBILITY, CLEAN DESIGN, OPERATING CONVENIENCE



Visibility of the float and tilt has been improved. Mounting the tilt indicator directly on the cylinder with a simplified design makes it easier for the operator to see. Automatic header height control and hydraulic header tilt are now standard features on all 5 Series Drapers.

REEL POSITIONER INDICATOR



Reel position can be critical to the performance of your header in certain crops. Simple reel positioner indication is offered to allow your operators to better determine where their reel works best.

THE ACTIVE FLOAT FLOAT SYSTEM ADVANTAGE



The auto-header-height-control on combines is a reactive system, meaning that it needs time to "react" to changing ground conditions. For example if it takes 1 second to react, at 6 mph (10km/h) you will have already traveled 8' (2.5m). This lag may cause the header to get caught up on uneven terrain making for uneven cutting and/or unnecessary dirt ingestion. The active float system of the MacDon CA25 allows for instant response over all kinds of ground conditions.

KNIFE STORAGE



A spare knife can be ordered and installed into the back-tube of any size of D65 Draper header at the factory.

REEL END SHIELDS REDESIGNED



The reel endshields were redesigned for less carryover of crop and to allow more clearance between the reel and header endshields.

DRAPER SEAL



A draper seal is built into both of the side drapers and travels the entire length of the c-shaped cutterbar, preventing and crop residue from entering the underside of the drapers.

MULTIPLE APPLICATION



MacDon’s D65 Draper Headers can be used for direct cutting with most current model combines using the CA25. The D65 can also be used with MacDon 5 Series Windrowers for swathing canola, forage, and other specialty crops. Available in both single and double knife versions and in widths from 25' (7.6m) to 40' (12.2m).

33% INCREASE IN DRAPER TENSION



The D65 was modified to allow the drapers to be tensioned up to 33% more than previous D60 headers, improving the drive to drapers for handling the heaviest of crop loads.

CUTTERBAR POLY



This kit is a compression molded component that has very high wear characteristics. It is used when cutting low podding crops like soybeans, lentils, or other lodged crops. The smooth design characteristics make this kit ideal for muddy harvesting conditions by reducing the likelihood of mud building up on the cutterbar.



This kit is not standard on all headers, but is available for all header sizes.

REEL FORE-AFT - HYDRAULIC POSITIONER



Adjust the reel position to changing crop and field conditions on-the-go from the cab.

EXTRORDINARY REEL DESIGN



MacDon's patented PR15 pick-up reel has been engineered to deliver optimal performance. The remarkable movement of this reel provides aggressive yet gentle finger action, resulting in the best pick-up action and crop recovery in the industry. Along with 4 cam positions, header tilt control, and fore-aft reel positioning, this reel can be specifically adjusted to meet your harvest conditions.

ROBUST REEL DRIVE



The MacDon pick-up reel is the most robust on the market. The special cam arms are manufactured in cast-iron to ensure it can withstand the toughest crop conditions.

V-GUIDE DRAPER TRACKING



Critical to keep your drapers tracking straight, preventing premature wear to the drapers.
