ID # 13212627

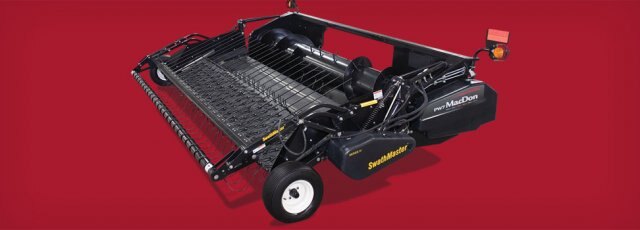

PW7 Rake-Up

  • PW7 Rake Up
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  • New header mounting allows the auger to be mounted closer to the feeder chain for better feeding.
  • Single point hook up for hydraulics, electrical and locking pins.
  • Left-hand PTO hook-up.
  • PTO shafts come with radial pin clutch.
  • Chain tension is adjusted by moving PTO drive, eliminating the chain tension idler.
  • Replaceable floor panel.
  • Ultra float suspension system carries and supports pick-up.
  • Durable polyethylene side safety shield.
  • Finger timing and auger chain tension can get adjusted without removing side shields.
Specifications
Model
PW7 Rake-Up
Category Name
Agriculture
Year
2014
Sale Type
New
Manufacturer
MacDon
Weight
1,550 lbs. (703 kg)
Overall Width
171 in. (4 343 mm), 192 in. (4 877 mm) with clearance lights
Overall Height
45 in. (1 143 mm) with clearance lights
Overall Depth
35 in. (889 mm)
Header Opening Width
154 in. (3 912 mm)
Auger Diameter
24 in. (610 mm)
Auger Fingers
0.625 in. (16 mm) induction hardened, 18 - 24 fingers (depending on machine)
Auger Speed
150 - 217 RPM (depending on combine)
Drive Shaft
Heavy duty, fully shielded with built-in clutch
Rake-up Size
14 ft. (4.27 m)
Number Of 19 In (482 Mm) Draper Belts
8
Actual Picking Width
154 in. (3 912 mm)
Mounting Bracket Width
169 in. (4 293 mm)
Shipping Weight
1,450 lbs. (657.7 kg)
Overall Width To Edge Of Tires
204 in. (5 182 mm)
