MacDon

ID # 13212624

FD75 FLEXDRAPER

Videos
Call for Price
Overview

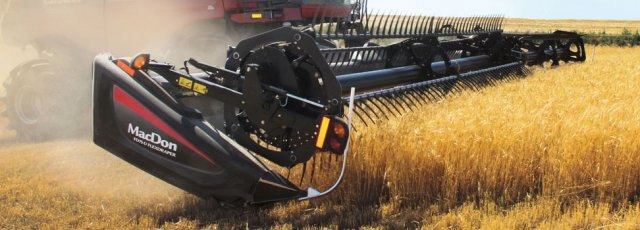

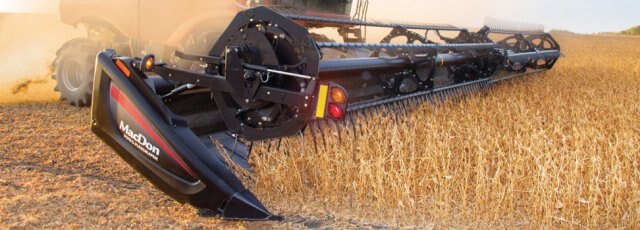

The MacDon FD75 FlexDraper® is our latest innovation in FlexDraper technology. Even at maximum flex our fixed reel to cutter bar relationship stays true, maintaining a consistently small critical gap between the reel fingers and cutter bar. This close reel to cutter bar relationship results in smooth, consistent, heads-first feeding that significantly boosts combine productivity. That means you get up to 45' (13.7m) of true ground following characteristics that won't compromise performance.
Specifications
Model
FD75 FLEXDRAPER
Category Name
Agriculture
Year
2014
Sale Type
New
Manufacturer
MacDon
Weight
6,746 lb (3060 kg)
Knife Type
Single or double knife
Knife Drive
Hydraulic, MacDon design enclosed oil bath wobb le bo x(es)
Knife Speed
1050 to 1400 SPM, varies depending on header size
Knife Guards
Pointed DHT (double heat-treated), strong, mud resistant profile
Reel Type
Model PR15 pick-up reel, 2-piece (double), flip-over design, cam-leading finger control
Reel Drive
Hydraulic
Reel Speed
0 to 67 RPM varies depending on combine model
Reel Fingers
11 in (279 mm) length, wear-resistant HD plastic, 6 in (152 mm) spacing
Conveyor Type
41.6 in (1057 mm) width, reversible 24 oz (680.4 g) rubber skim-coated drapers, double V-guide with tracking, integral seal on leading edge
Conveyor Drive
Hydraulic
Conveyor Speed
0 to 464 ft/min
Standard Features
Adapters for most current model combines, hydraulic fore-aft reel positioner, hydraulic header tilt, cutter bar poly wear plates, auto-header height with header angle and ground pressure indicators
Field Installed Options
Upper cross auger recommended for tall bushy crops, stabilizer wheels, slow-speed transport with stabilizer wheels and other specialty option kits
