MacDon

ID # 13212515

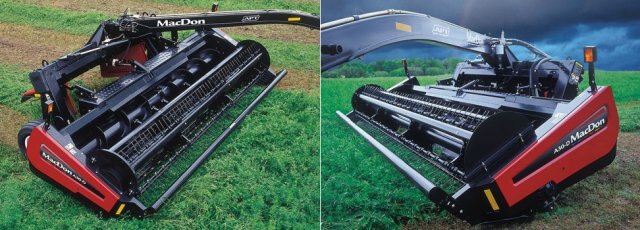

A30-D MOWER CONDITIONER

Videos
Call for Price
Overview
In our never-ending quest to perfect the harvesting experience, MacDon offers the latest advance in hay and forage harvesting – the MacDon A30-D Pull-Type Mower Conditioner. Incorporating MacDon’s extensive harvesting knowledge and experience, we’ve optimized this double knife drive machine’s performance at every contact point with the crop. This has significantly improved overall cutting and conditioning performance and provided an increase in ground speed over previous MacDon Mower Conditioners. The A30-D’s design improvements are extensive and include adjustable conditioning, a new heavy-duty cutterbar design, a double knife drive system and a beefed up, easier to attach hitch. The result is a commercial quality machine that the high acreage producer can depend on to get the job done while maximizing the nutrient value of his crop.
Specifications
Model
A30-D 16 ft. (4.9 m)
Category Name
Agriculture
Year
2014
Sale Type
New
Manufacturer
MacDon
Weight Of Three Point Hitch Version Kg
7,750 lb. (3525 kg)
Effective Cutting Width
16.25 ft. (4953 mm)
PTO Drive
1,000 RPM
Conveyor (Auger) Type
20 in. (508 mm) undershot, center-feed auger over replaceable high density polyethylene auger pans plus enhanced feeding with rubber feed fingers
Conveyor (Auger) Drive
Mechanical
Conveyor (Auger) Speed
275 RPM, 20T sprocket
Sickle Drive
Double knife MacDon design enclosed oil bath wobble box
Sickle Speed
1,912 SPM (loaded)
Reel Type
5 bat, oval closed bats with steel fingerc
Reel Drive
Mechanical two “B” belts from auger
Reel Speed
74 RPM with 20T sprocket (19T sprocket provided for 67 RPM reel)
Adjustable Swath
36 in. to 100 in. (915 mm to 2540 mm)
Windrow Shields
Adjustable
Conditioner Type
Non-contact steel N-bar intermeshing crimping rolls, header mounted rolls and forming shields
Conditioner Roll Length
102 in. (2590 mm)
Conditioner Outside Dimension
9.17 in. (233 mm)
Conditioner Drive
Hydraulic, motor to enclosed gearbox
Conditioner Speed
736 RPM (loaded)
Options
Tall crop divider, stub guards, additional skid shoes, gauge rollers, hydraulic angle header kit (check with dealer for tractor specifications required)
