mk martin

ID # 13364060

MK Martin Axis5-6

Call for Price
Overview

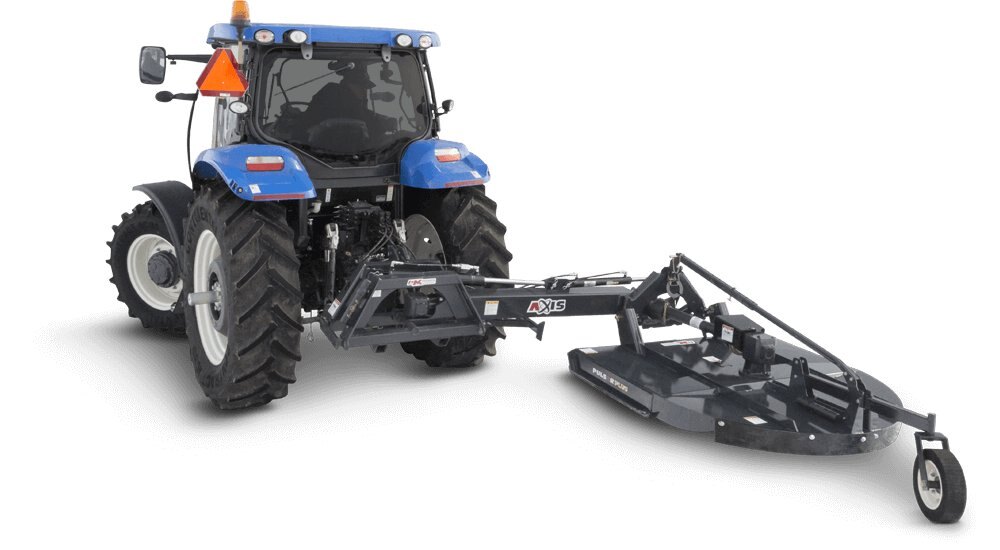

Axis Tool Arm

The Axis is the ideal tool for safely mowing around ponds, ditches, and fence lines. The offset design of the Axis Tool Arm provides the necessary clearance to keep both the tractor and the operator out of harms way from low hanging branches, or possibly rolling the tractor down an incline.

To ensure both operator and equipment safety, the Axis is equipped with sheer bolt protection on a break away link should the arm strike an unforeseen object with too much force.

  Features


Hydraulic Tool Lift ToolLift

The Axis Tool Arm hydraulically pivots on your 3PH raising and lowering the tool as needed. With the Axis fully raised the mower can be folded in to provide safe road travel (image below).


Hydraulic Tool Rotation ToolRotation

To provide the best results when mowing along ditches or around ponds the tool carrier is hydraulically adjustable allowing the mower to be adjusted to match the grade.


Stabilizer Arm to Cutter StabalizerArm

Various attachment bracket are supplied with the Axis Toolbar to attach the Stabilizer Bar to the cutter. All four adaptors are included.

Shown in order: Pulsar, Kodiak, Fork Rear Wheel Style with 180° Wheel Adjuster, Fork Rear Wheel Style with Flat Wheel Adjuster



Transport Lock TransportLock





Retractable Weight Bar CounterweightShelf






Specifications
Model
Axis5-6
Category Name
Lawn / Garden
Year
2019
Sale Type
New
Manufacturer
M.K. Martin
3PH Mount
CAT. 1 & 2
Weight (LBS )
900
Offset
84''
Maximum Tool Weight (LBS )
800
4' Rotary Cutter
Req. Min. 30 HP
5' Rotary Cutter
Req. Min. 60 HP
6' Rotary Cutter
Req. Min. 80 HP
Cutting Angle Cyl Ext
55°
Cutting Angle Cyl Ret
90°
Tractor Remotes Req
2
