Overview

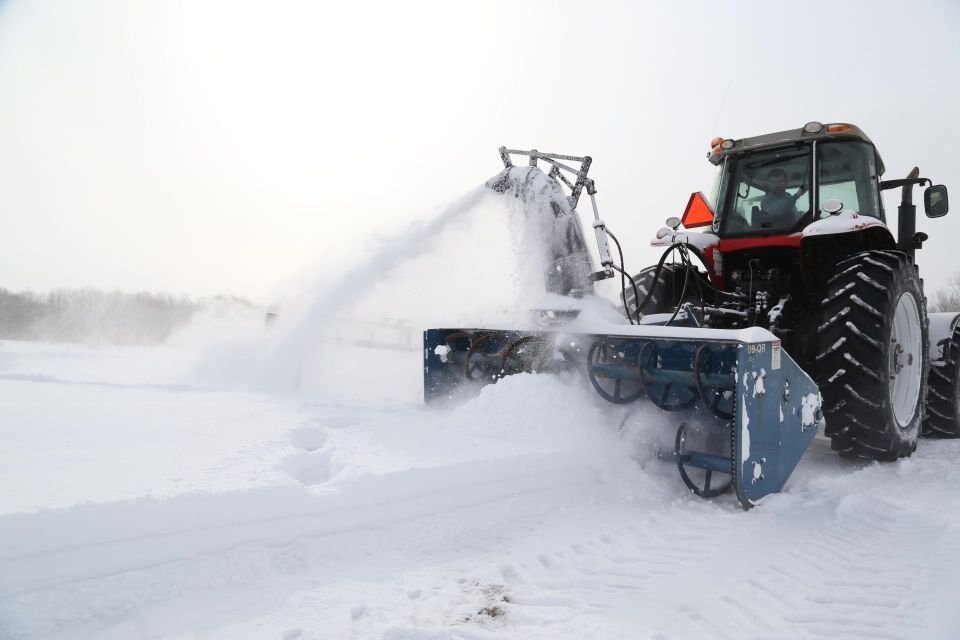

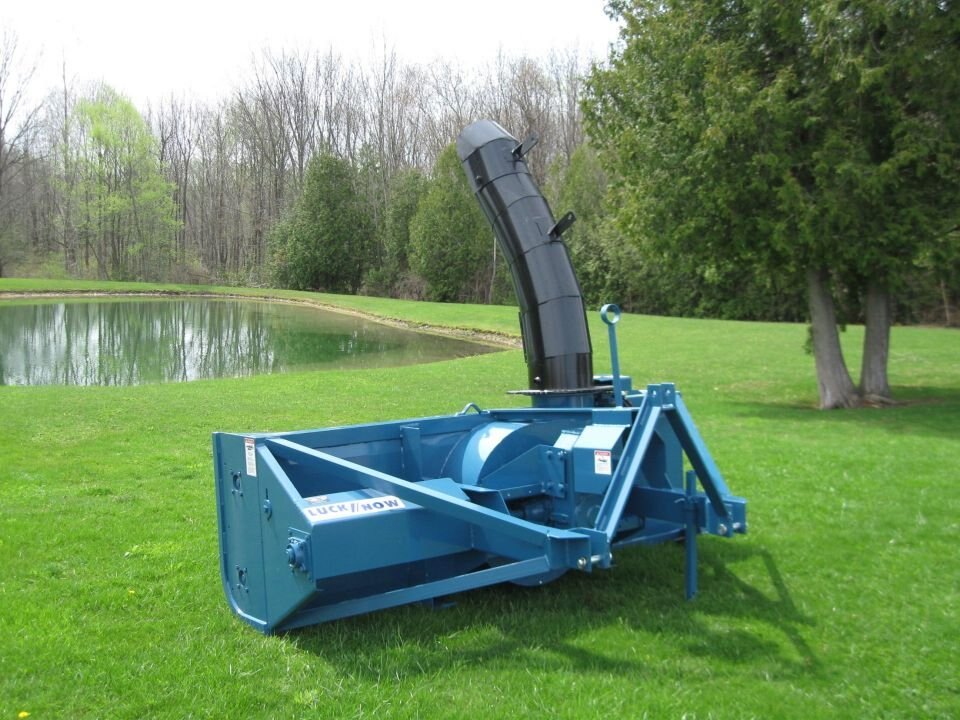

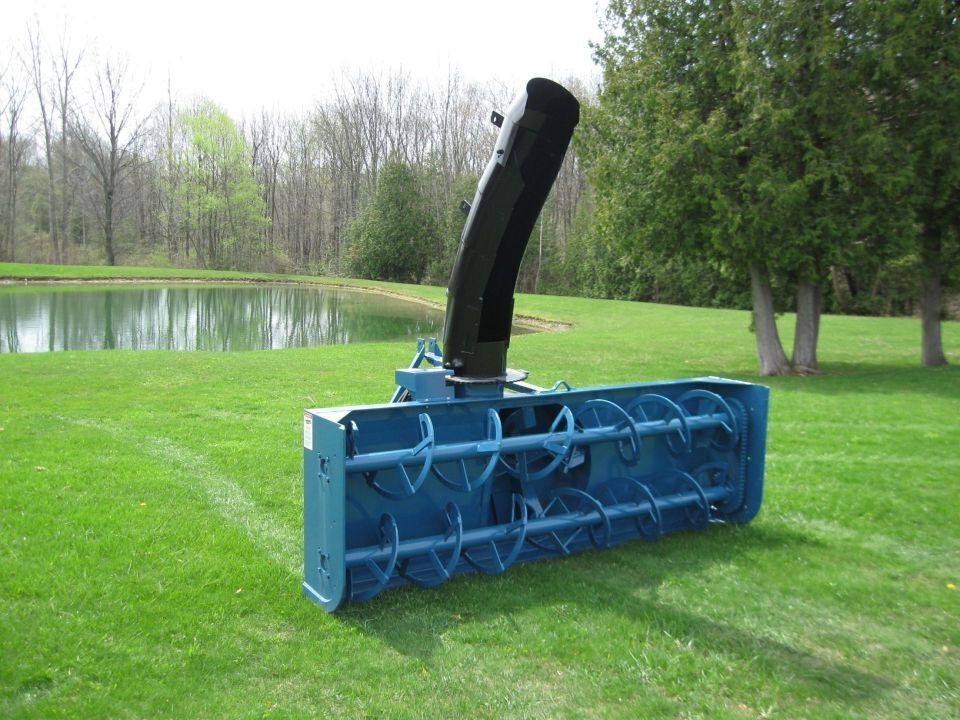

Double auger snowblowers for a wide range of tractor sizes. Standard orbital motor chute rotator and single section spout deflector. Heavy augers and shaft, 4 blade fan, greaseable bearings, heavy duty gearbox, tapered roller bearings. Available options include – spout deflectors, skid shoes, reinforced end plates, telescopic chute and more

Specifications
Model
Double Auger
Category Name
Agriculture
Year
2021
Sale Type
New
Manufacturer
Lucknow
models
MODEL SIZE D7 D75 D8 D85 D9 D10
Weight 1195 1530 1545 1735 2130 3220
Cutting Width 84 90 96 102 108 120
Cutting Height 36 36 36 36 36 44
Fan Shaft Diameter 40 mm 1 ¾ 1 ¾ 2 2 2
Fan Blades 4 4 4 4 4 6
Fan Diameter 28 28 28 30 32 34
Fan Housing Width 8 12 12 12 12 12
Fan Housing (thickness) 10 ga. 3/16 3/16 3/16 3/16 3/16
Auger Diameter 17 17 17 17 17 20
Auger Shaft Diameter 1 7/16 1 7/16 1 7/16 1 7/16 1 7/16 1 3/4
Auger Flighting Thickness ½ ½ ½ ½ ½ ½
Auger Chain Size #60 #80 #80 #80 #80 #80
Chute Diameter 12 13 13 13 13 15
Chute Length 36 48 48 48 48 48
Orbital Motor Chute Rotator Stan. Stan. Stan. Stan. Stan. Stan.
Spout Deflector (Single) Stan. Stan. Stan. Stan. Stan. Stan.
Hitch Category 1 & 2 2 2 2 2 2
Recommended H.P. (min) 70 80 90 100 120 140
Recommended H.P. (max) 90 105 115 150 160 180

H.P. recommendations are suggested only (pending snow and ground speed conditions and transmission type) Unless otherwise indicated, all dimensions are in inches with standard equipment installed. Specifications subject to change without notice. Certain features shown may be optional.

features
Snowblower Gearboxes

Heavy Duty Gearbox

Heavy duty oil filled gearboxes



S Series Construction 1 Robust Build

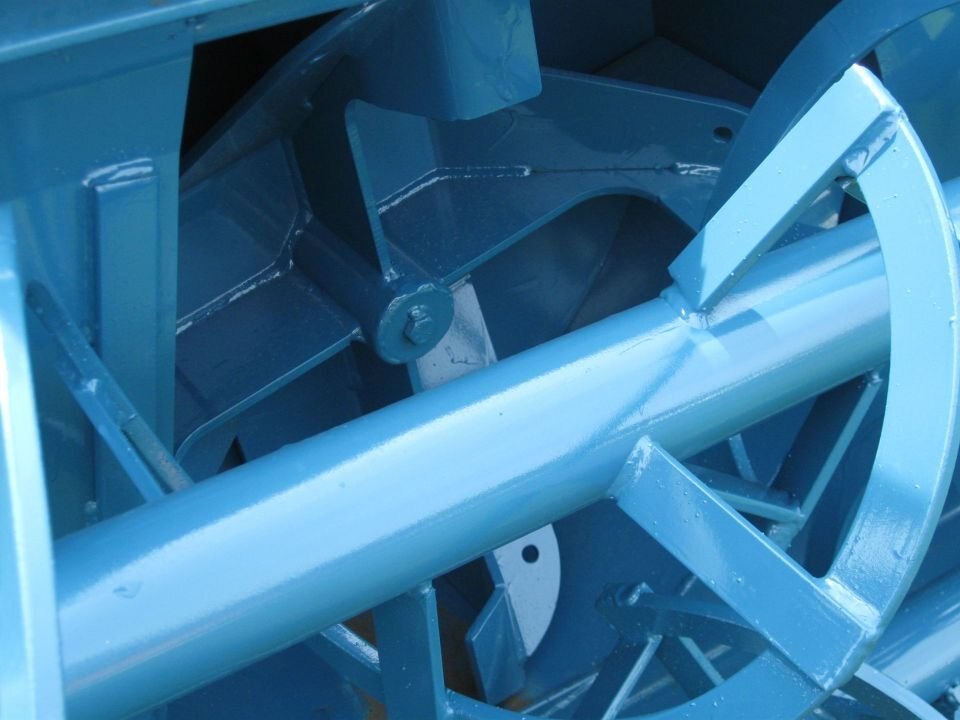

Heavy augers &  shafts, thick wall steel end plates & shell, greaseable bearings



4 Blade Fan Four Blade Fan

Heavy duty four blade fan (model D10 has 6 bladed fan)





L Series Pto Heavy PTO shaft

Heavy duty PTO shaft with shear bolt protection



Img 0678 Orbital Rotator

Precise hood rotation with a hydraulic orbital motor and a durable gear drive.





Single Hood Std Single Section Spout Deflector

Control where you want the snow to be blown
