Lucknow Twin Screw Vertical Mixers - Trailer

  • Lucknow Twin Screw Vertical Mixers Trailer
  • Lucknow Twin Screw Vertical Mixers Trailer
  • Lucknow Twin Screw Vertical Mixers Trailer
  • Lucknow Twin Screw Vertical Mixers Trailer
  • Lucknow Twin Screw Vertical Mixers Trailer
  • Lucknow Twin Screw Vertical Mixers Trailer
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

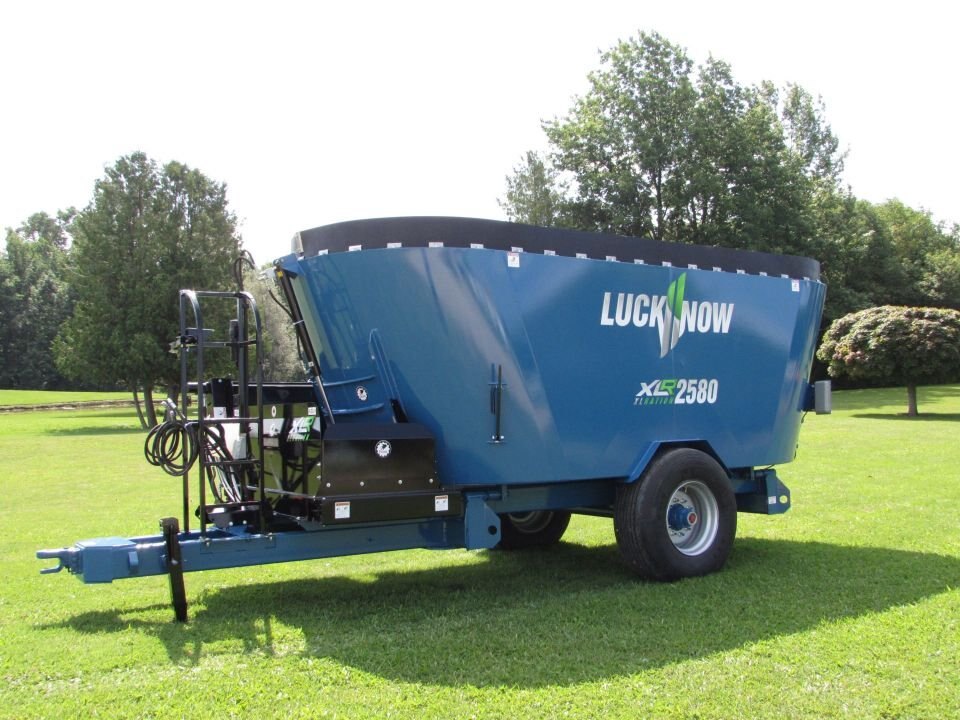

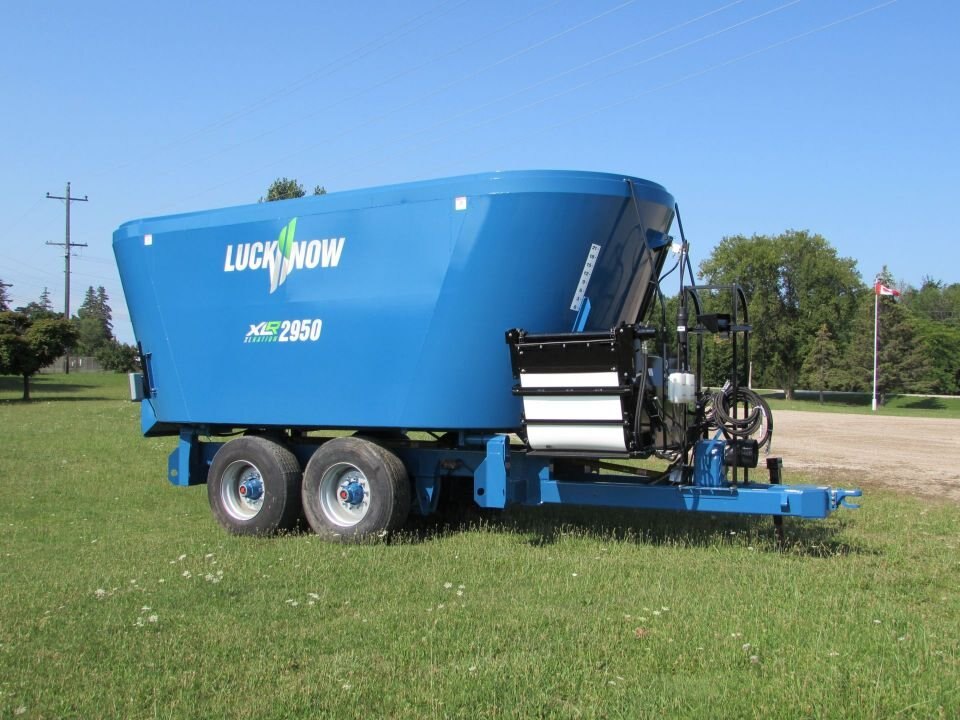

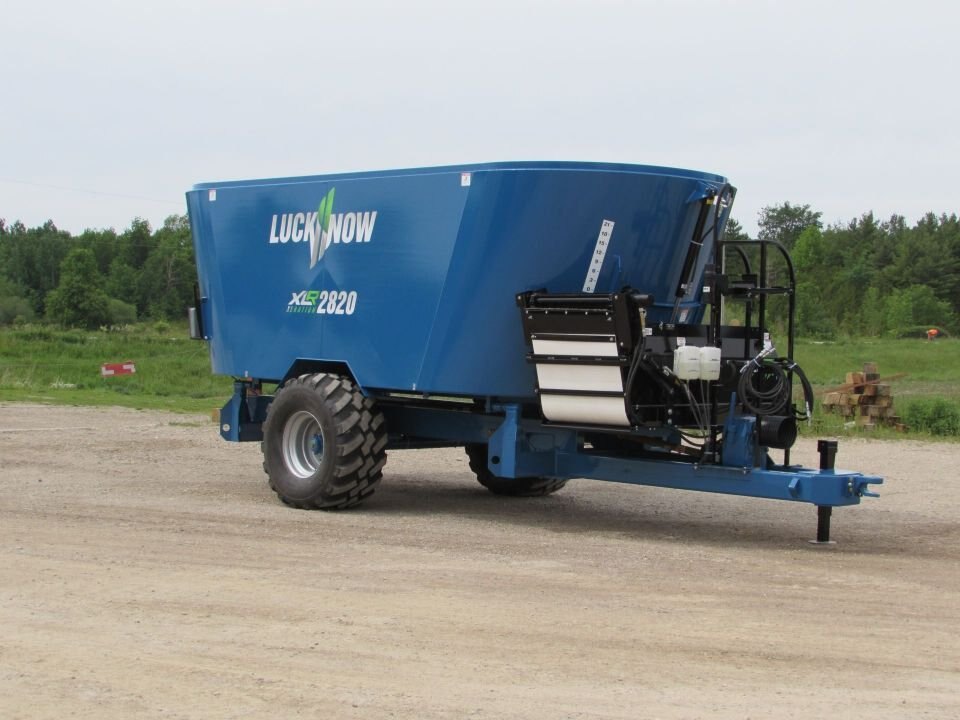

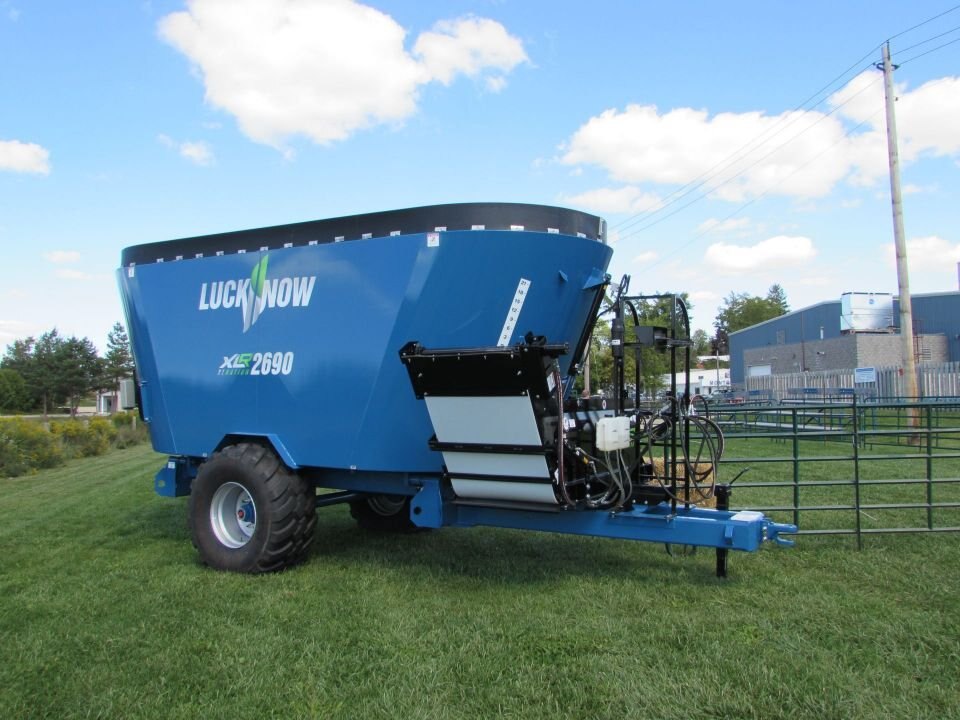

Twin screw vertical mixers in a trailer version with capacities from 580 to 1290 cubic feet. The mixing auger is pto driven, the door and discharge are hydraulically operated. The large screw auger design enables the processing of many varieties of big square or round bales, allowing them to be combined with silage and other commodities.

Specifications
Model
Twin Screw Vertical Mixers - Trailer
Category Name
Agriculture
Year
2021
Sale Type
New
Manufacturer
Lucknow
models
MODEL 2580 2690 2820 2950 (Single Axle) 2950 (Tandem Axle) 21125
Base Mixing Capacity (cubic feet) 580 690 820 950 950 1125
Capacity with 9" rubber extension (cubic feet) 660 780 930 1100* 1100* 1290*
Overall Height 106 116 113 121 130 143
Tub Length 222 234 251 263 263 264
Overall Length 290 296 319 325 325 332
Overall Transport Width
           - Bi-direction conv. 102 102 102 102 102 109
          - 36" Conveyor Extension 110 110 116 116 116 110
Tub Width 87.5 87.5 102 102 102 108.5
Tread Width 102 102 102 102 102 110
36" Conveyor Ext
        - lowest position reach 24 24 24 24 24 24
36" Conveyor Ext
        - min. unloading height 36 36 36 36 36 36
        - max. unloading height 51 51 51 51 51 51
 Bi-direction Cross Conv.
        - max. unloading height 25 25 25 25 25 25
Scale System 4 point 4 point 4 point 4 point 4 point 4 point
Tires 425/65R22.5 (2) 425/65R22.5 (2) 425/65R22.5 (2)** 425/65R22.5 (2) 385/65R22.5 (4) 385/65R22.5 (4)
Number of Augers 2 2 2 2 2 2
Tungsten Coated Knives (qty) 6 7 7 8 8 10
Auger Flighting (thickness) 5/8 5/8 5/8 5/8 5/8 5/8
Floor Thickness
(excluding 5/8" support plates)		 3/4 3/4 3/4 3/4 3/4 3/4
Hopper Wall (thickness) 1/4 1/4 1/4 1/4 1/4 1/4
Door Opening (width x height) 44 x 30 44 x 30 44 x 30 44 x 30 44 x 30 52 x 30
PTO (* 540 rpm available) 1000 rpm * 1000 rpm * 1000 rpm 1000 rpm 1000 rpm 1000 rpm
Approx. Weight c/w cross
conveyor & ext. (Lbs.)		 15,500 15,775 17,250 17,550 19,100 22,100
features

Planetary Gearbox

V Planetary

Heavy duty planetary reduction gearbox

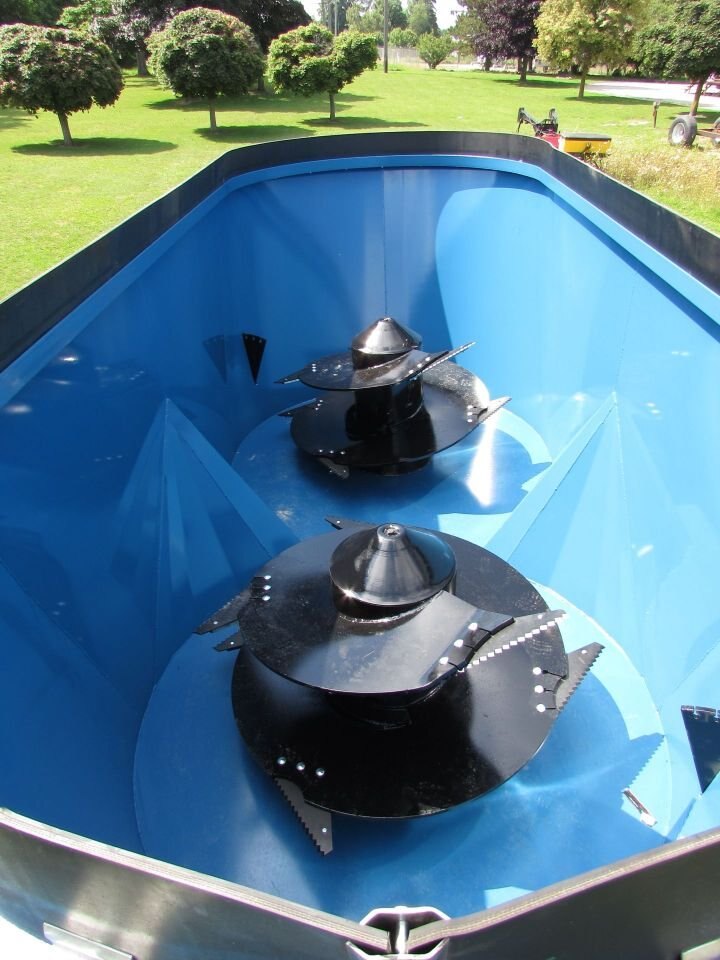

Tw Inside Augers Heavy Augers, Floor and Walls

Thick flighted augers, floor and tub walls for a long wearing life.

V Restrictor 2 Restrictor Bar

Adjustable for long fiber processing of your ration



V Tungsten Knife Tungsten Coated Knives

Long wearing and easily replaceable



Tungsten Adj Knives 1 Adjustable Knives

Knives are adjustable for more aggressive cutting action



Vert Straight Cross Straight Cross Conveyor

Twin vertical models come standard with a straight cross conveyor that can feed to either side



Ez2810lowres Lg Scale System

A Digi-Star four point scale system is standard



Tires 014 Re-capped truck tires
Hitch 1 Adjustable Hitch

Easily adjustable hitch with replaceable clevis



V Back Lights Safety Lights

For extra visibility when travelling in low-light conditions
