ID # 13900867

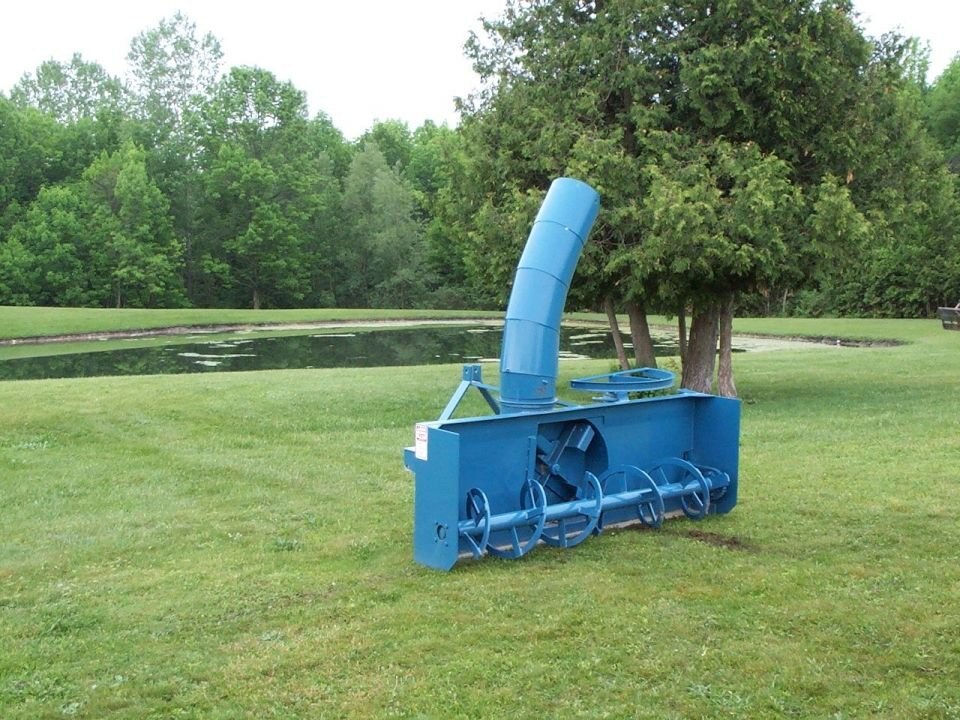

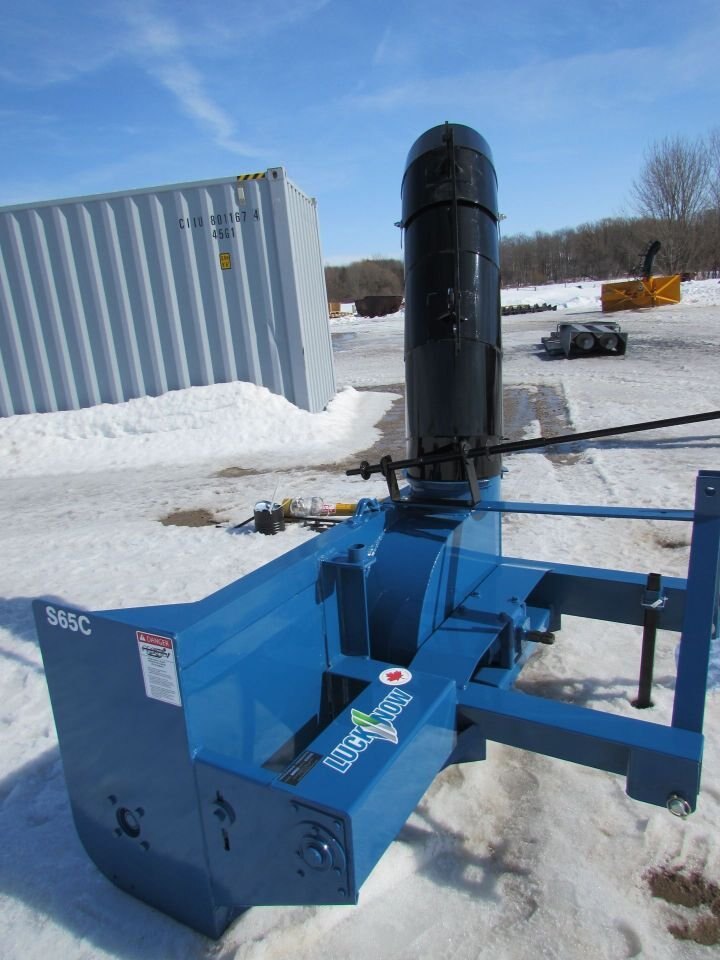

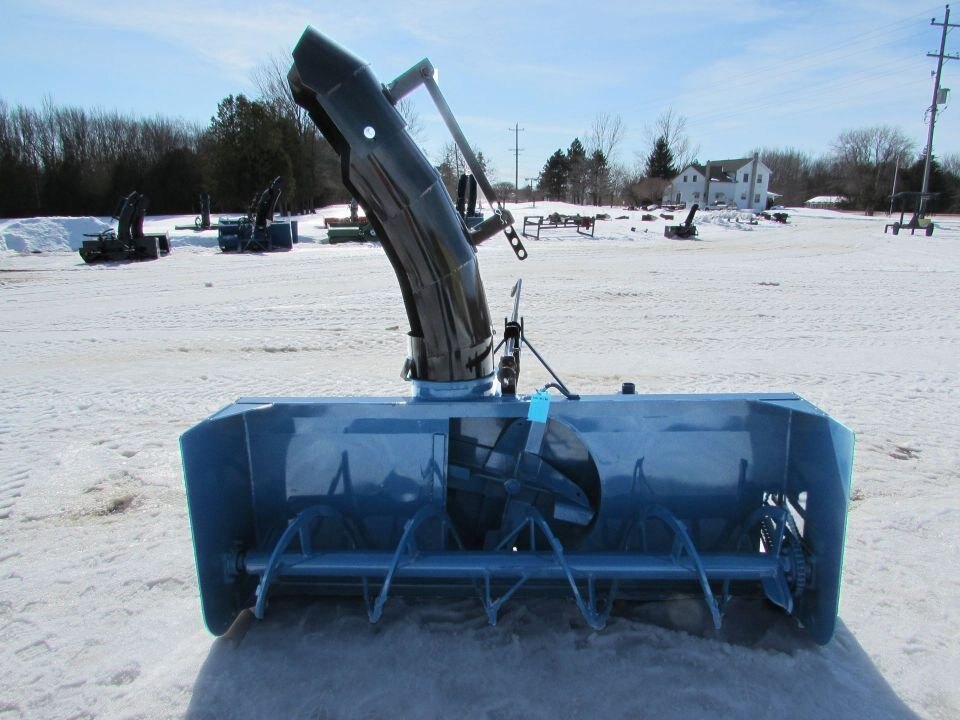

Lucknow Single Auger

  • Lucknow Single Auger
  • Lucknow Single Auger
  • Lucknow Single Auger
  • Lucknow Single Auger
  • Lucknow Single Auger
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

For nearly 50 years, LuckNow Snowblowers have been recognized as one of the most dependable and strongest built in the field. A wide range of cutting width sizes from 48" to 120" in single and double auger designs will provide the solution to any consumer needs that suit their tractor or job requirements. With the strength, performance, and reliability of a LuckNow Snowblower, you're sure to be blowing snow for years to come!
Single auger snowblowers for a wide range of tractor sizes.

Cutting widths of 60" to 108"

Manual and hydraulic chute rotator (hydraulic cylinder or orbital motor) available on most models (refer to spec sheet for configurations).

Heavy augers and shaft, 4 blade fan, greaseable bearings, heavy duty gearbox, tapered roller bearings.

Available options include – spout deflectors, skid shoes, cutting edge and more
 Features
Snowblower Gearboxes

Heavy Duty Gearbox

Heavy duty oil filled gearboxes



S Series Construction 1 Robust Build

Heavy augers &  shafts, thick wall steel end plates & shell, greaseable bearings



Single Hood Std Single Section Spout Deflector

Control where you want the snow to be blown



L Series Pto Heavy PTO shaft

Heavy duty PTO shaft with shear bolt protection

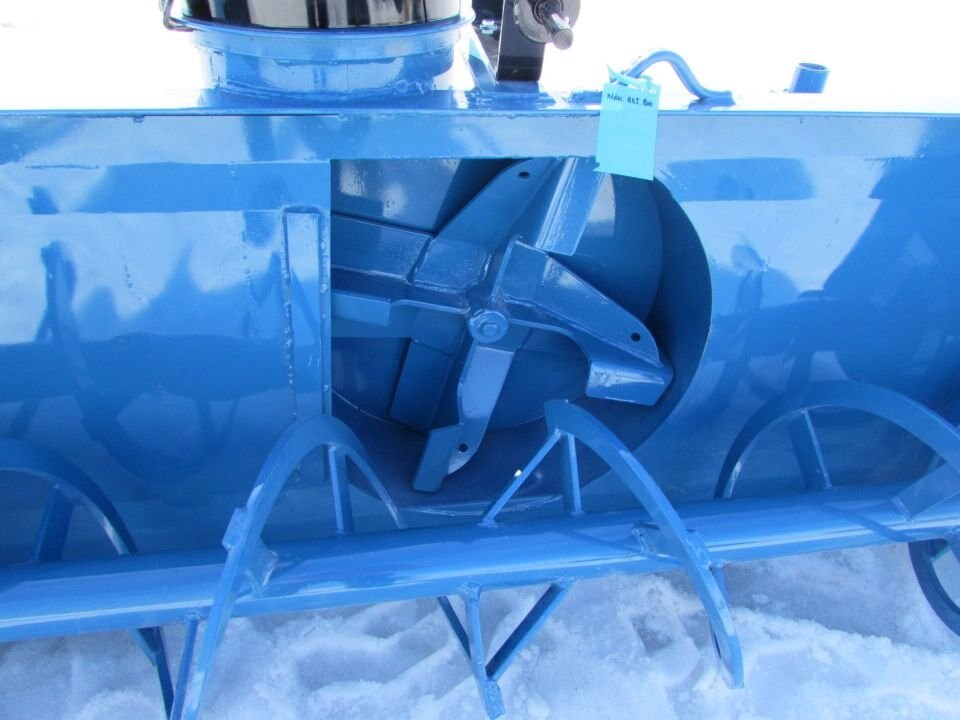

4 Blade Fan Four Blade Fan

Heavy duty four blade fan on all models



Img 3114 1 Manual Hood Rotator

An easy to turn crank system for hood rotation



 Specifications

MODEL SIZE S5 S6 S65 S7 S75 S100 S9
Approx. Weight (Lbs.) 510 545 885 920 995 1430 1570
Cutting Width 60 72 78 84 90 100 108
Cutting Height 24 24 30 30 30 33 33
Fan Shaft Diameter 1 3/8 1 3/8 40mm 40mm 40mm 1 3/4 1 3/4
Fan Blades 4 4 4 4 4 4 4
Fan Diameter 22 22 26 26 28 28 28
Fan Housing Width 8 8 8 8 8 12 12
Fan Housing (thickness)17 10 ga. 10 ga. 10 g.a 10 ga. 10 ga. 3/16 3/16
Auger Diameter 14 14 17 17 17 20 20
Auger Shaft Diameter 1 1/4 1 1/4 1 7/16 1 7/16 1 7/16 1 7/16 1 7/16
Auger Flighting Thickness 5/16 5/16 1/2 1/2 1/2 1/2 1/2
Auger Chain Size #60 #60 #60 #60 #60 #80 #80
Chute Diameter 12 12 12 12 12 13 13
Chute Length 36 36 36 36 36 48 48
Hydraulic Chute Rotator Opt. Opt. N/A N/A N/A N/A N/A
Orbital Motor Chute Rotator Opt. Opt. Opt. Opt. Opt. Stan. Stan.
Spout Deflector (Single) Stan. Stan. Stan. Stan. Stan. Stan. Stan.
Hitch Category 1 & 2 1 & 2 1 & 2 1 & 2 1 & 2 2 2
Recommended H.P. (min) 20 20 35 40 50 80 80
Recommended H.P. (max) 35 35 70 70 90 105 105


Specifications
Model
Single Auger
Category Name
Agriculture
Year
2018
Sale Type
New
Manufacturer
Lucknow
