Overview

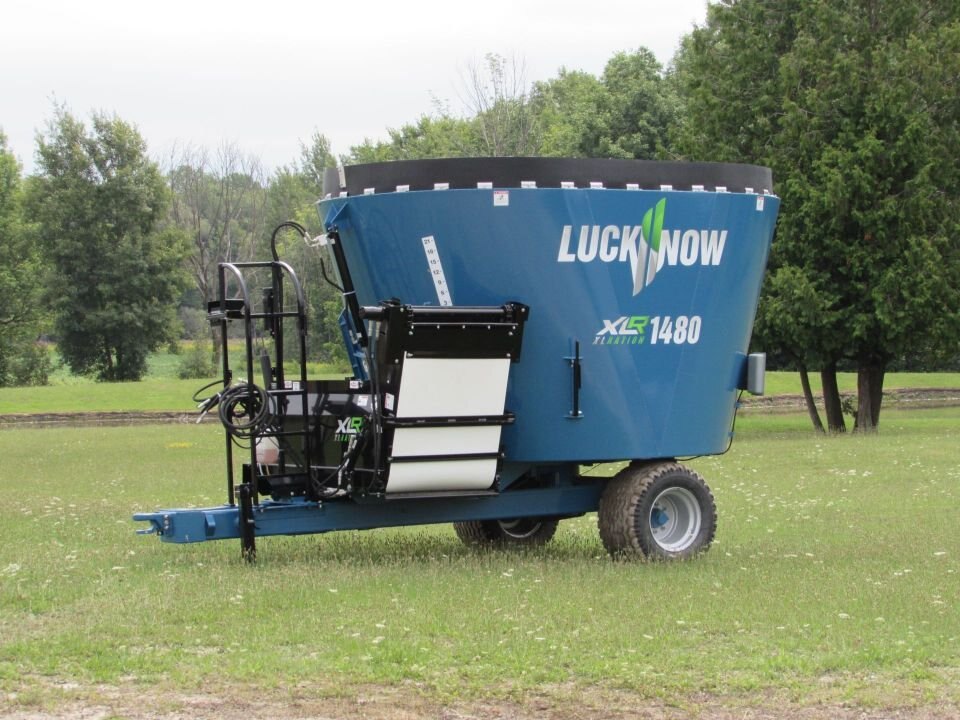

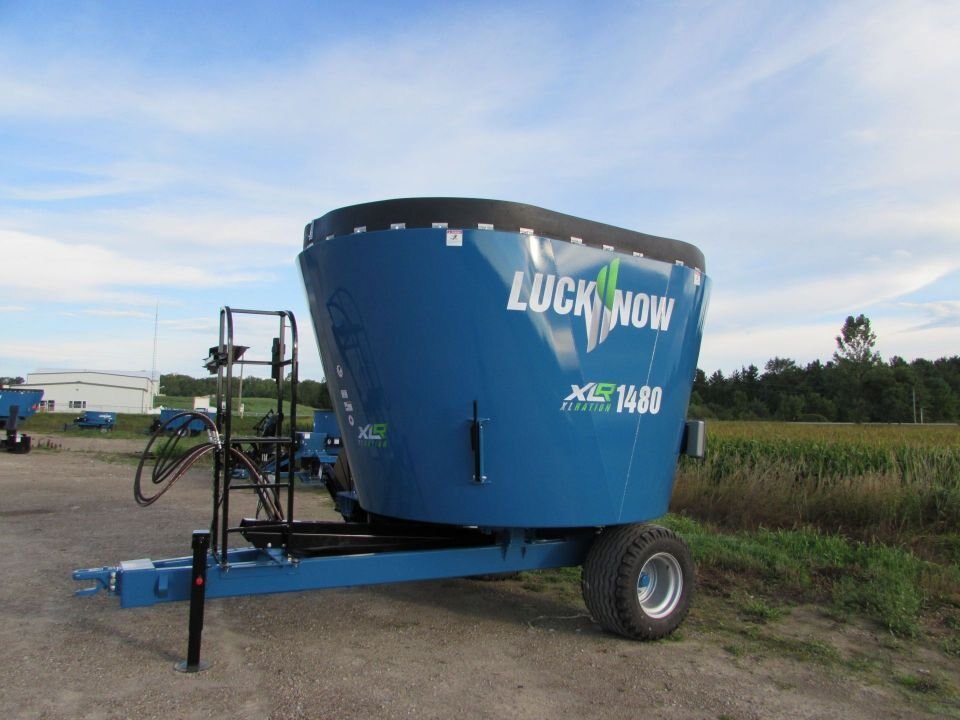

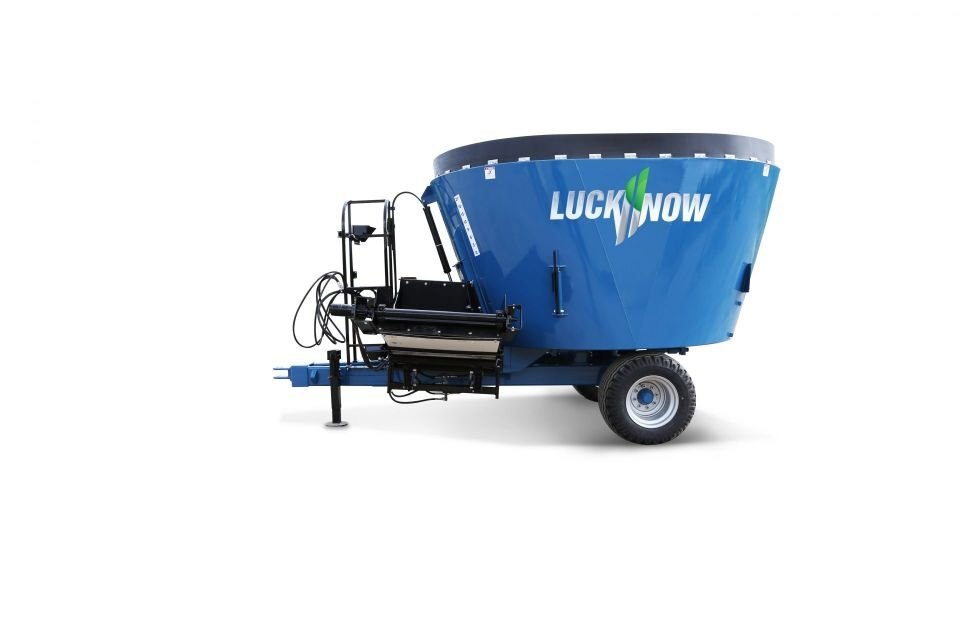

Single Screw Vertical Mixers - Trailer

Single screw vertical mixers in a trailer version with capacities from 330 to 560 cubic feet.

The mixing auger is pto driven, the door and discharge are hydraulically operated.

The large screw auger design enables the processing of many varieties of big square or round bales, allowing them to be combined with silage and other commodities.
 Features

Planetary Gearbox

V Planetary

Heavy duty planetary reduction gearbox

Sv Inside Augers Heavy Augers, Floor and Walls

Thick flighted augers, floor and tub walls for long wearing life

V Restrictor 2 Restrictor Bars

Adjustable for long fiber processing of your ration

V Tungsten Knife Tungsten Coated Knives

Long wearing and easily replaceable

Img 6984 Adjustable knives

Knives are adjustable for more aggressive cutting action

Vert W Slide Chute Side Discharge with Slide Chute

A simple discharge for feeding into low bunks

Ez2810lowres Lg Scale System

A Digi-Star four point scale system is standard

Img 3773 Wide Implement Tires
Rear Lights 2 Safety Lights

For extra visibility when travelling in low-light conditions

Hitch Adjustable Hitch

Easily adjustable hitch with replaceable clevis

  Specifications

MODEL 1330 1380 1420 1480
Base Mixing Capacity (cubic feet) 330 380 420 480
Capacity with 9" rubber extension (cubic feet) 380 420 480 560
Overall Height 100 108 102 114
Tub Length 135 139 145 ½ 149 ½
Overall Length 212 214 215 219
Overall Transport Width
            - Slide Chute 94 94 102 102
            - Bi-direction conv. 102 102 102 102
            - 36" Conveyor Extension 110 110 110 110
Tub Width 91 ½ 91 ½ 102 102
Tread Width 96 96 96 96
36" Conveyor Ext
          - lowest position reach 28 28 28 28
36" Conveyor Ext
         - min. unloading height 35 35 35 35
         - max. unloading height 50 50 50 50
Bi-direction Cross Conv.
         - max. unloading height 24 24 24 24
Scale System 4 - Point 4 - Point 4 - Point 4 - Point
Tires 12.5Lx15(2) 19.0/45-17(2) 19.0/45-17(2) 19.0/45-17(2)
Number of Augers 1 1 1 1
Tungsten Coated Knives (qty) 6 6 7 8
Auger Flighting (thickness) 5/8 5/8 5/8 5/8
Floor Thickness
(excluding 5/8" support plates)		 3/4 3/4 3/4 3/4
Hopper Wall (thickness) 1/4 1/4 1/4 1/4
Door Opening (width x height) 40 x 24 40 x 30 40 x 24 40 x 30
PTO (1000 rpm optional)540 rpm 540 rpm 540 rpm 540 rpm 540 rpm
Approx. Weight c/w cross
conveyor & ext. (Lbs.)		 8,240 8,610 9,890 10,150



Specifications
Model
Single Screw Vertical Mixers - Trailer
Category Name
Agriculture
Year
2018
Sale Type
New
Manufacturer
Lucknow
