Overview

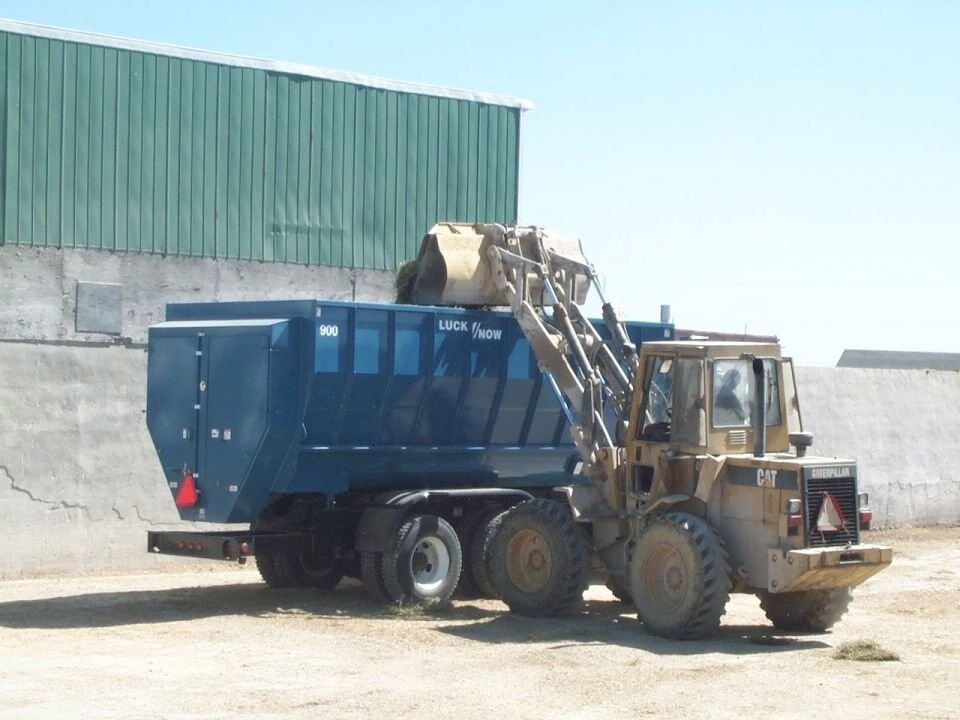

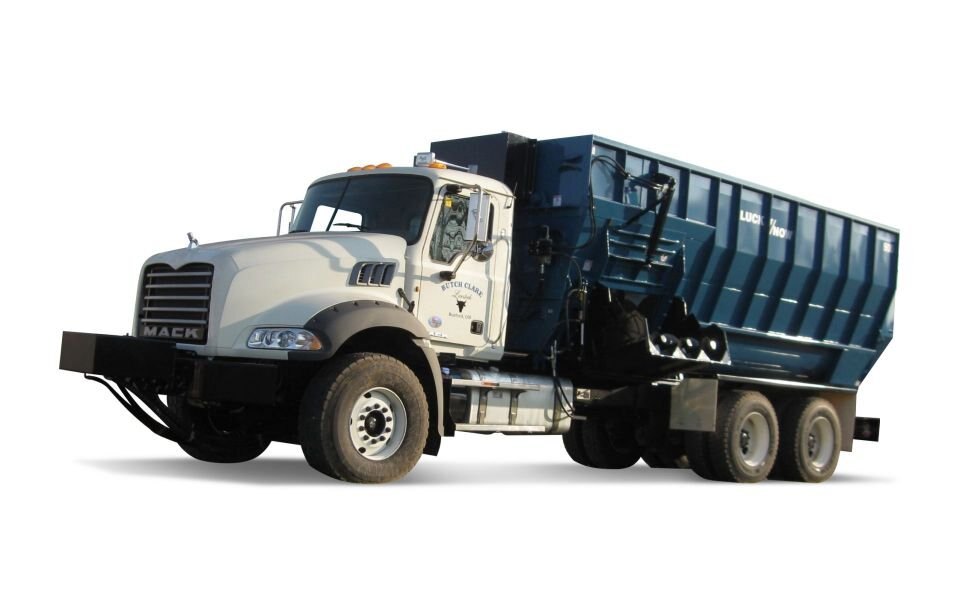

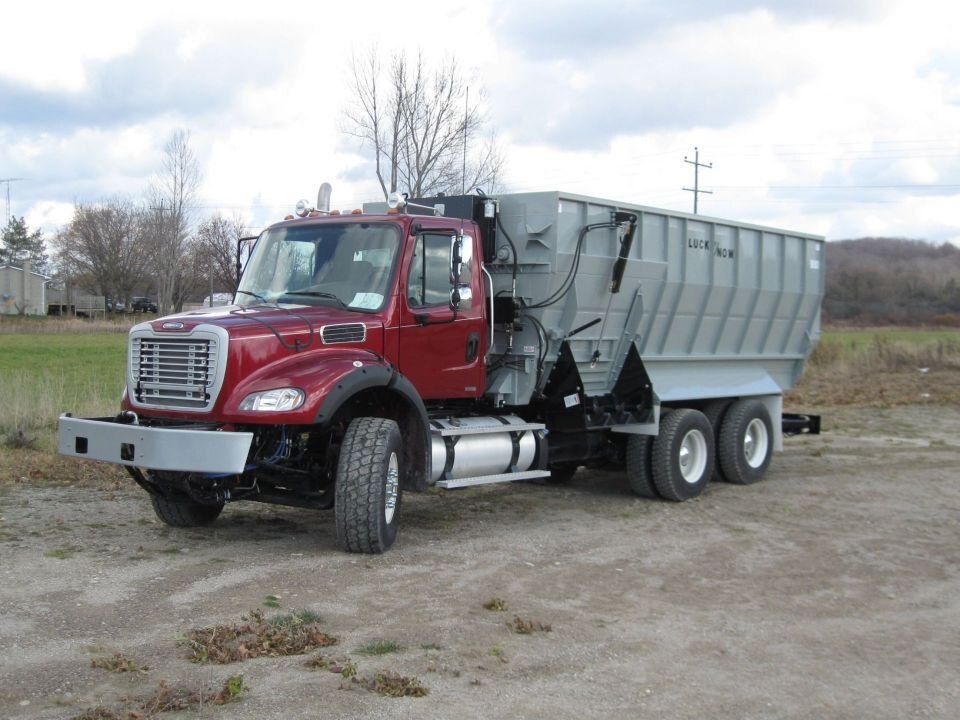

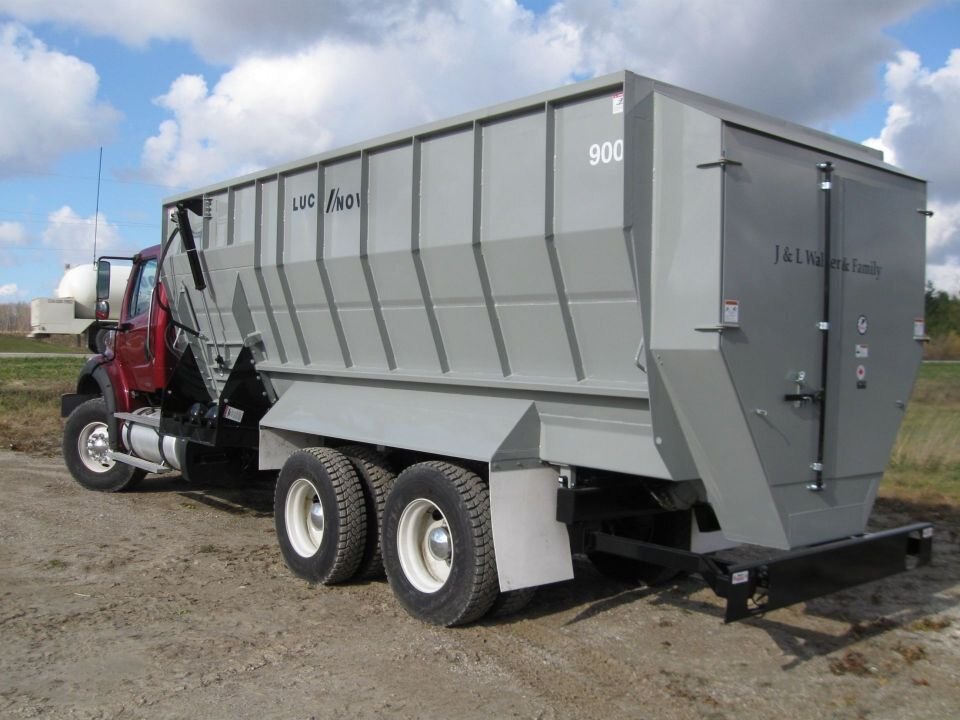

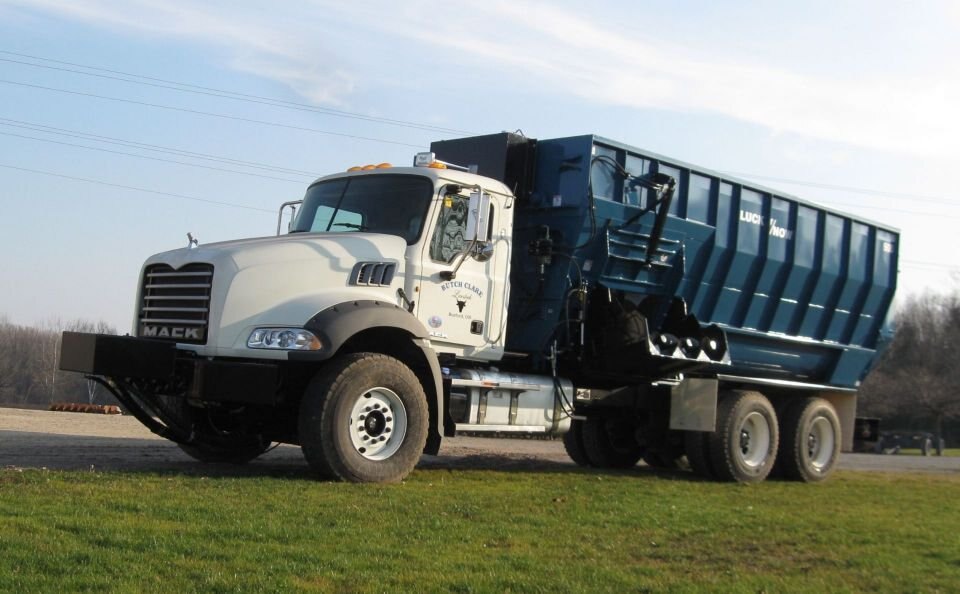

Horizontal Mixers - Truck

Have It Your Way

All the models listed below have the option to be mounted on a truck, allowing you to be more flexible and versatile.
  Features

Standard

Augers Four Auger Horizontal Mixing

Provides a thorough mix with less HP

Img 2034 Horizontal Planetary Planetary Gearbox

Heavy duty planetary gear reduction to reduce input HP

Grease Bank Grease Bank

One location to lubricate all drive components

Heavy Duty Bearings Heavy Duty Sealed Bearings

Heavy duty sealed bearings on the drive end of all augers

Ledger Ledger with Shear Bar

The addition of a ledger with a shear bar near the augers increases the cutting for those harder to mix rations

Liners 1/4" Steel Liners

1/4" thick steel bottoms with an extra 1/4" thick steel liner for additional wear resistance

Oil Bath Oil Bath

The rear oil bath allows for continuous lubrication of chains and sprockets

Scale System Ez2810lowres Lg

A Digi-Star four point scale system is standard

Chute Helicoid Flight Auger Discharge

For fast and complete unloading of your ration



  Specifications

MODEL SIZE 4400 4500 4550 4625 4750 4900
Base Mixing Capacity
(cubic feet)		 440 500 550 625 750 900
Overall Length 195 1/2 219 1/2 195 1/2 219 1/2 219 1/2 267 1/2
Mixer Height 72 1/2 72 1/2 81 1/2 81 1/2 87 1/2 87 1/2
Overall Height 79 79 90 90 96 96
Tread Width 96 96 96 96 96 96
Discharge Length 36 36 36 36 36 36
Cab to Axle Min. *125 / **103 *147 / **127 *125 / **106 **130 **130 **164
Cab to Frame Min. *158 / **158 *180 / **180 *158 / **158 **180 **180 **226
Hopper Size 84x168 84x192 87x168 87x192 96x192 96x240
Bottom Augers- Tube 8 5/8 8 5/8 8 5/8 8 5/8 8 5/8 10 3/4
Bottom Augers - Flighting 1/2 & 5/8 1/2 & 5/8 1/2 & 5/8 1/2 & 5/8 1/2 & 5/8 3/4
Bottom Augers - Diameter 24 24 30 30 30 30
Top Augers - Tube 6 5/8 6 5/8 6 5/8 6 5/8 6 5/8 8 5/8
Top Augers - Flighting 3/8 3/8 3/8 3/8 3/8 1/2
Top Augers - Diameter 24 24 28 28 28 30
Shaft Diameter - Drive Bottom 3 15/16 3 15/16 3 15/16 3 15/16 3 15/16 3 15/16
Shaft Diameter - Drive Top 3 3 3 3 3 7/16 3 7/16
Bearings Drive SFCW SFCW SFCW SFCW SFCW SFCW
Sprockets Drive S Taper S Taper S Taper S Taper S Taper S Taper
Scale Chains 4 Point 4 Point 4 Point 4 Point 4 Point 4 Point
Roller Chains 100-140 100-140 100-160 100-160 100-160H 120-160H
Approx. Weight (lbs.) 12,700 13,800 16,500 19,400 20,200 24,500
