Overview

Horizontal Mixers - Stationary

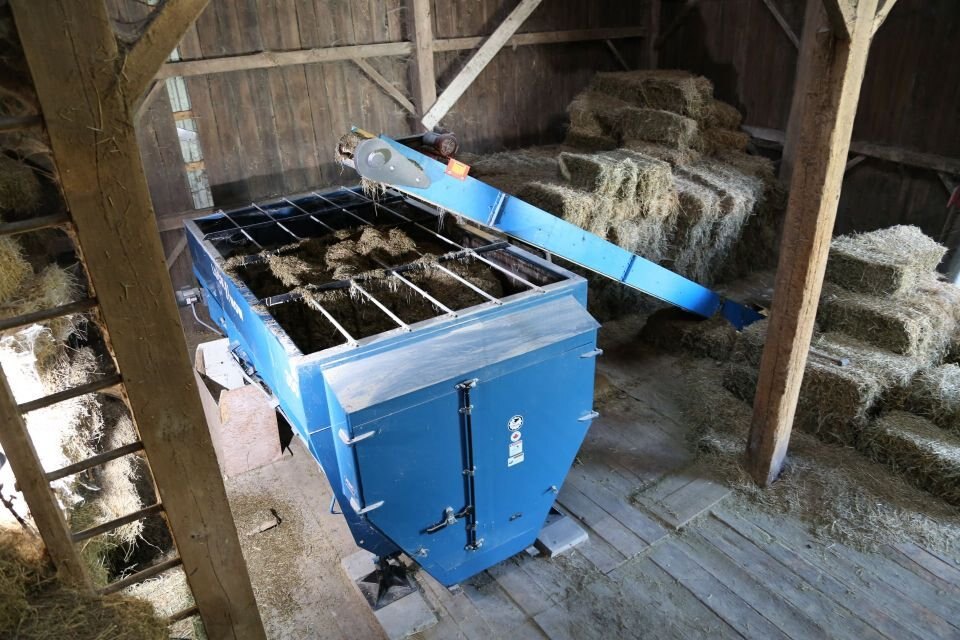

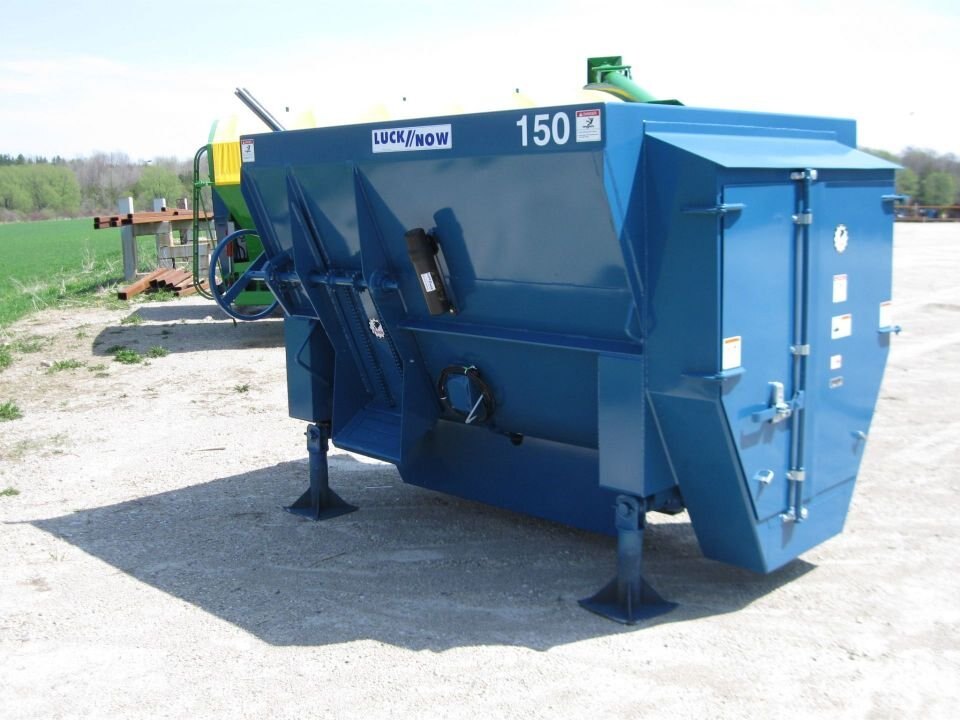

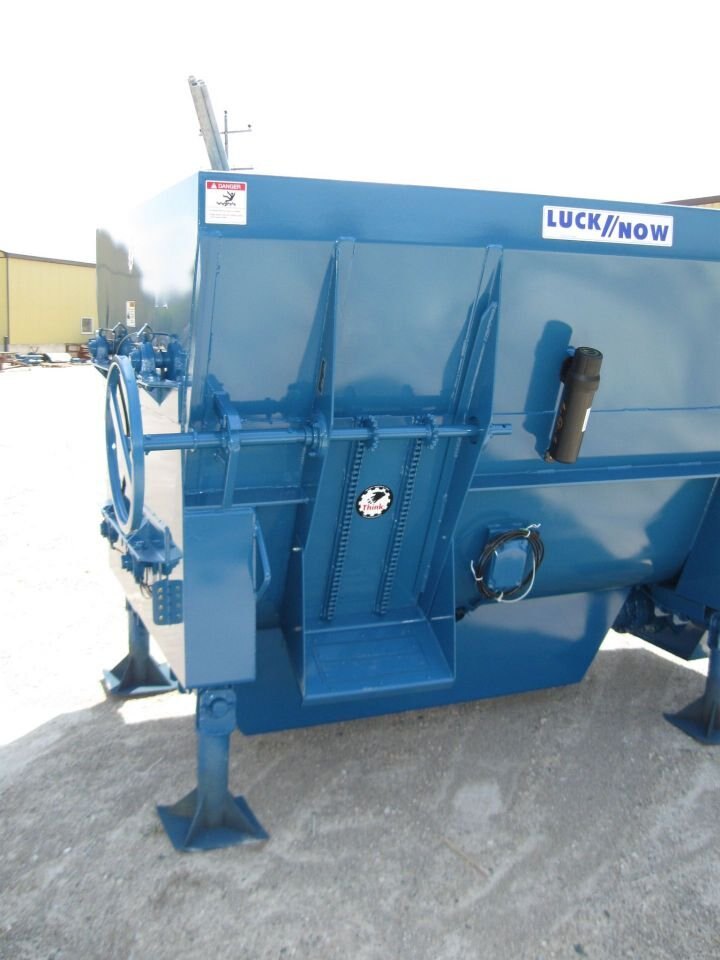

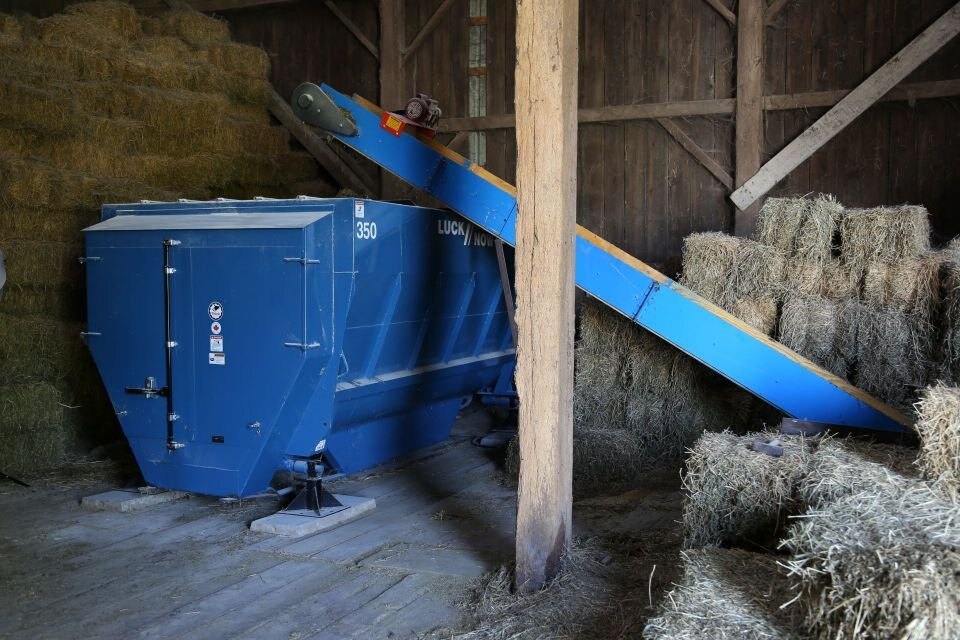

Horizontal four auger mixers in a stationary version with capacities from 150 to 750 cubic feet.

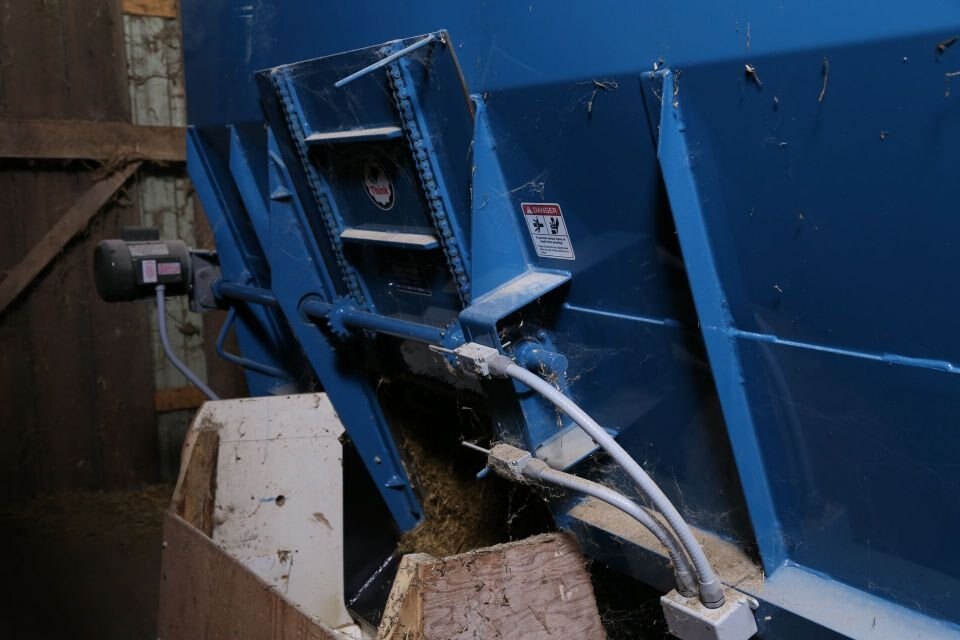

The mixing augers are driven by electric motor, the door can be manually operated or electric driven.  All models are available with or without scales.

 The heavy duty horizontal four-auger design are capable of giving the mix required, from rations with well cured, long stemmed legume-type hay, to mixes with green grass, and mixes with silage and commodities.  Better milk production, better weight gains and greatly improved animal health are just some of the results of a finely-tuned feed ration.
  Features

Standard

Augers Four Auger Horizontal Mixing

Provides a thorough mix with less HP

Img 2034 Horizontal Planetary Planetary Gearbox

Heavy duty planetary gear reduction to reduce input HP

Grease Bank Grease Bank

One location to lubricate all drive components

Heavy Duty Bearings Heavy Duty Sealed Bearings

Heavy duty sealed bearings on the drive end of all augers

Ledger Ledger with Shear Bar

The addition of a ledger with a shear bar near the augers increases the cutting for those harder to mix rations

Liners 1/4" Steel Liners

1/4" thick steel bottoms with an extra 1/4" thick steel liner for additional wear resistance

Oil Bath Oil Bath

The rear oil bath allows for continuous lubrication of chains and sprockets

Hot Stat Manual Door Manual Discharge Door

Standard manual opening discharge door.

  Specifications

MODEL SIZE 4150 4185 4260 4310 4360 4410 4440 4500 4550 4625 4750
Base Mixing Capacity
(cubic feet)		 150 185 260 310 360 410 440 500 550 625 750
Hopper Length 84 96 120 144 168 168 168 192 168 192 192
Overall Length 102 114 148 172 196 196 199 223 204 228 230
Overall Height 74 74 84 84 84 90 89 89 98 99 104
Width 74 74 84 84 84 84 89 89 92 92 101
Floor to Door 21 1/2 21 1/2 16 16 16 16 14 14 14 14 14
Door Opening Width 19 19 24 24 24 24 30 30 30 30 30
Stand Height 12 12 12 12 12 12 12 12 12 12 12
Door to Front 16 16 18 18 18 18 28 28 28 28 28
Door to Rear 67 79 92 116 140 140 126 150 126 150 150
Hopper Size 72 x 84 72 x 96 84 x 120 84 x 144 84 x 168 84 x 168 84 x 168 84 x 192 87 x 168 87 x 192 96 x 192
Bottom Augers- Tube 4 ½ x 3/8 4 ½ x 3/8 5 x ½ 5 x ½ 6 5/8 x ½ 6 5/8 x ½ 8 5/8 x ½ 8 5/8 x ½ 8 5/8 x ½ 8 5/8 x ½ 8 5/8 x ½
Bottom Augers - Flighting ½ ½ 3/8 & ½ 3/8 & ½ 3/8 & ½ ½ & 5/8 ½ & 5/8 ½ & 5/8 ½ & 5/8 ½ & 5/8 ½ & 5/8
Bottom Augers - Diameter 18 18 20 20 20 20 24 24 30 30 30
Top Augers - Tube 4 x 5/16 4 x 5/16 4 ½ x 3/8 4 ½ x 3/8 5 x ½ 5 x ½ 6 5/8 x ½ 6 5/8 x ½ 6 5/8 x ½ 6 5/8 x ½ 6 5/8 x ½
Top Augers - Flighting 3/8 3/8 3/8 3/8 3/8 3/8 3/8 3/8 3/8 3/8 3/8
Top Augers - Diameter 18 18 20 20 20 20 24 24 28 28 28
Roller Chains 80 80 80-120 80-120 80-120 80H - 120 100 - 140 100 - 140 100 - 160 100 - 160 100 - 160
Approx. Weight (lbs.) 4,200 4,500 8,600 9,750 11,150 11,250 14,000 15,200 18,000 20,940 21,500
