ID # 13900762

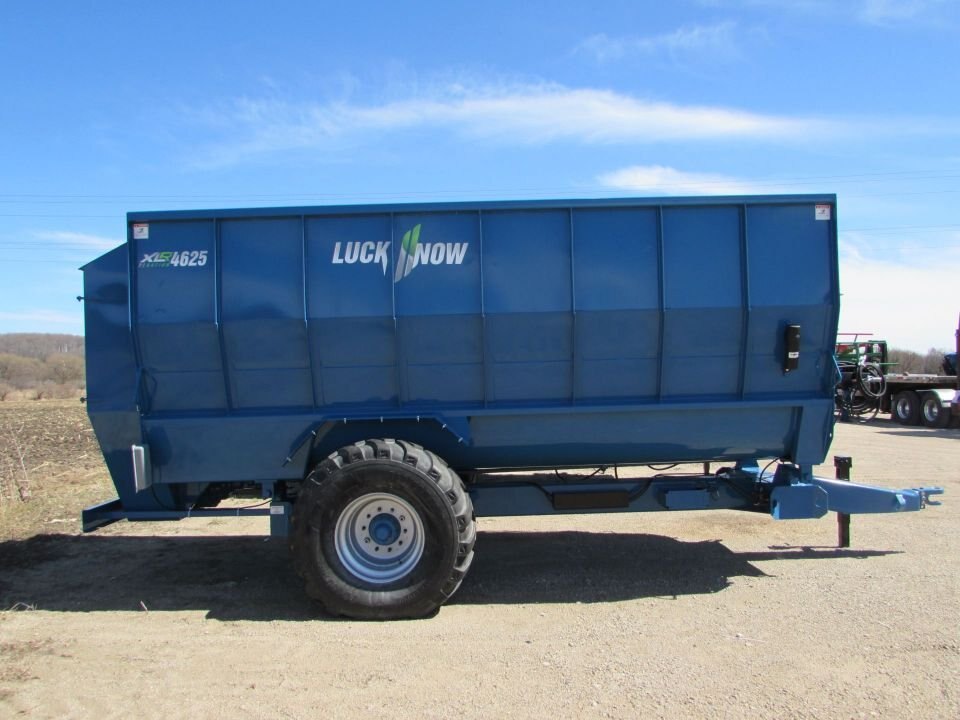

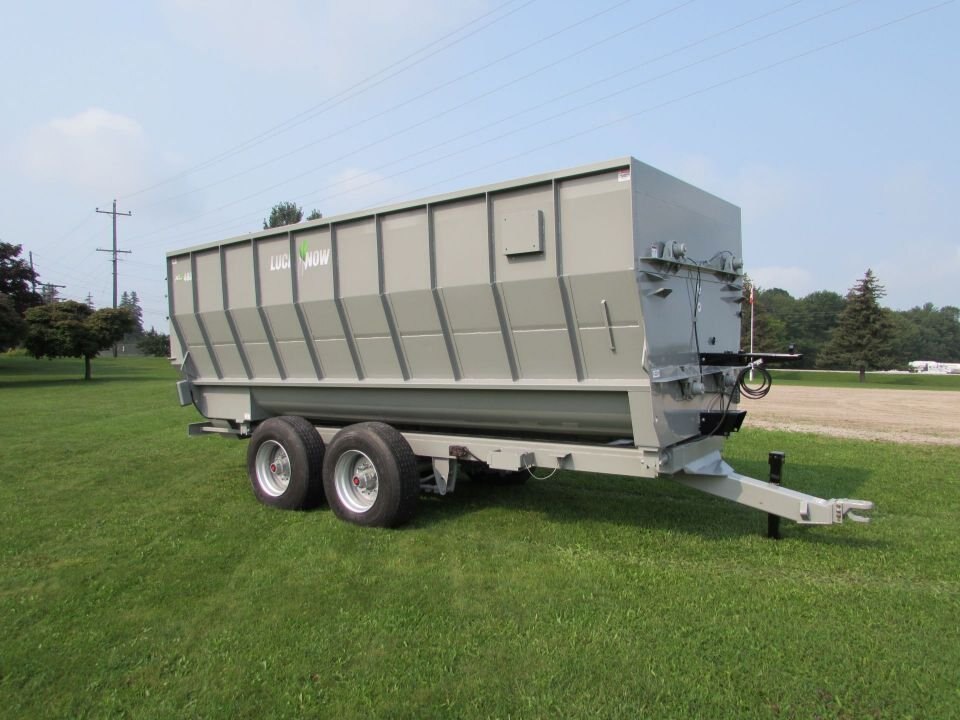

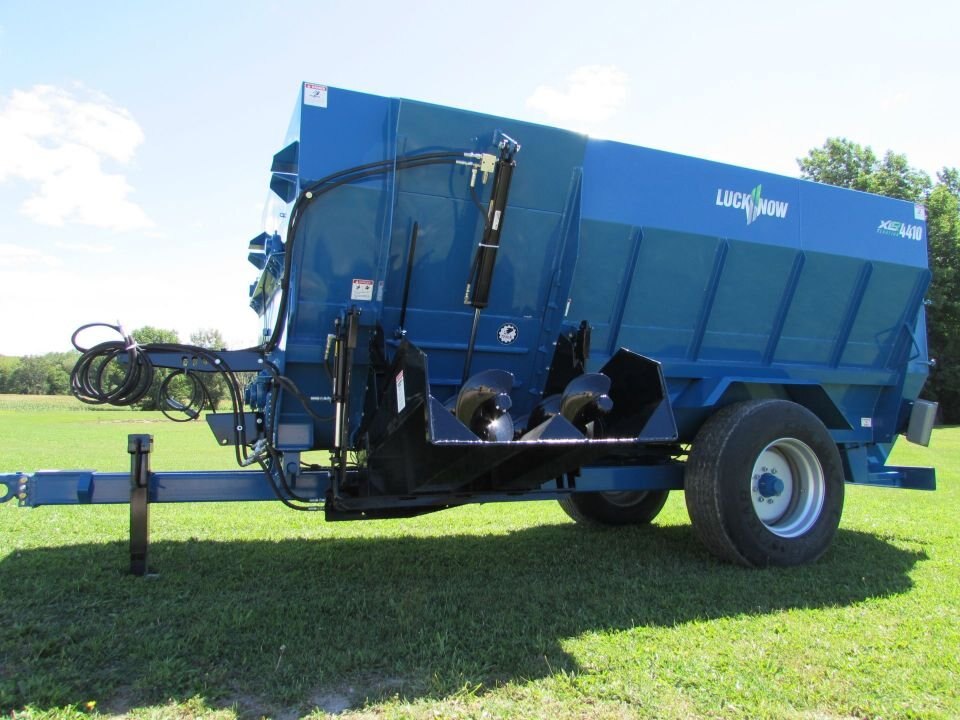

Lucknow Horizontal Mixers - Trailer

  • Lucknow Horizontal Mixers Trailer
  • Lucknow Horizontal Mixers Trailer
  • Lucknow Horizontal Mixers Trailer
  • Lucknow Horizontal Mixers Trailer
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Horizontal Mixers - Trailer

Horizontal four auger mixers in a trailer version with capacities from 260 to 900 cubic feet.

The mixing augers are pto driven, the door and discharge are hydraulically operated.

The heavy duty horizontal four-auger design are capable of giving the mix required, from rations with well cured, long stemmed legume-type hay, to mixes with green grass, and mixes with silage and commodities.  Better milk production, better weight gains and greatly improved animal health are just some of the results of a finely-tuned feed ration.
  Features

Standard

Augers Four Auger Horizontal Mixing


Provides a thorough mix with less HP

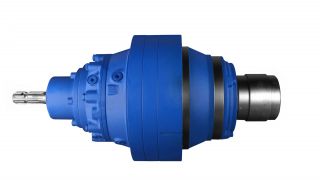

Img 2034 Horizontal Planetary Planetary Gearbox

Heavy duty planetary gear reduction to reduce input HP

Grease Bank Grease Bank

One location to lubricate all drive components

Heavy Duty Bearings Heavy Duty Sealed Bearings

Heavy duty sealed bearings on the drive end of all augers

Ledger Ledger with Shear Bar

The addition of a ledger with a shear bar near the augers increases the cutting for those harder to mix rations

Liners 1/4" Steel Liners

1/4" thick steel bottoms with an extra 1/4" thick steel liner for additional wear resistance

Oil Bath Oil Bath

The rear oil bath allows for continuous lubrication of chains and sprockets

Rear Lights Crop Rear Safety Lights

For extra visibilty when travelling in low-light conditions

Slip Clutch Slip Clutch PTO

A slip clutch PTO to protect the driveline

Ez2810lowres Lg Scale System

A Digi-Star four point scale system is standard

Img 3775 Re-capped truck tires

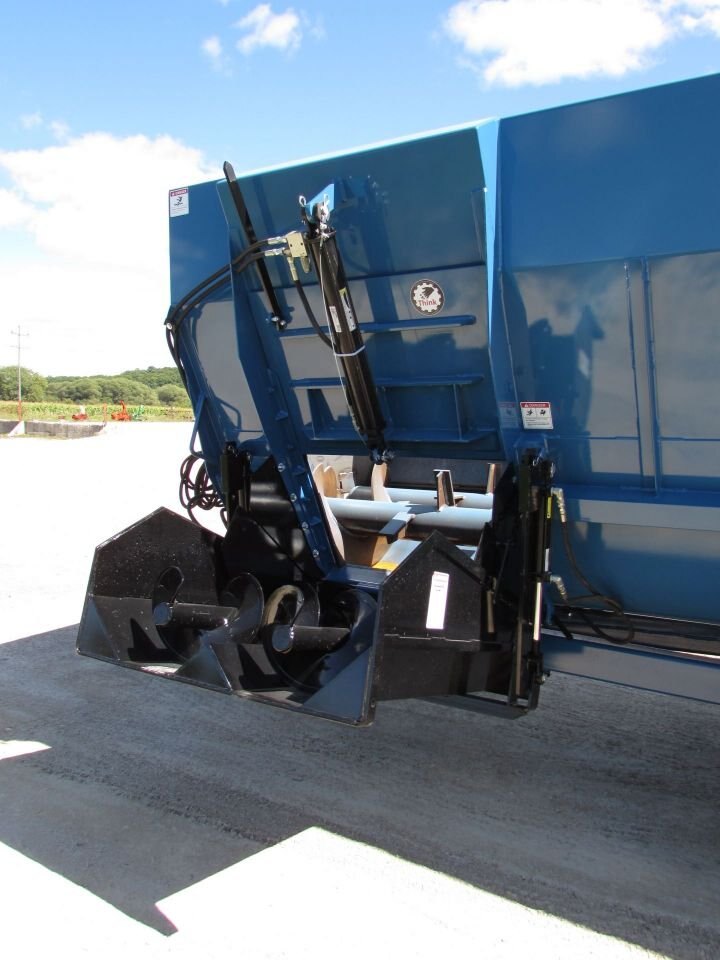

Chute Helicoid Flight Auger Discharge

For fast and complete unloading of your ration

Hitch Adjustable Hitch

Easily adjustable hitch with replaceable clevis

Hot Bumper Rear Bumper

For added protection against damage

  Specifications
MODEL SIZE 4260 4310 4360 4410 4440 4500 4550 4625 4750 4900
Base Mixing Capacity
(cubic feet)		 260 310 360 410 440 500 550 625 750 900
Overall Length 190 214 238 238 244 268 248 272 272 320
Overall Height 87 87 90 96 100 100 112 112 118 122
Tread Width 81 81 81 81 94 94 106 106 106 101
Hopper Size 84 x 120 84 x 144 84 x 168 84 x 168 84 x 168 84 x 192 87 x 168 87 x 192 96 x 192 96 x 240
Discharge Length 36 36 42 42 42 42 42 42 42 42
Bottom Augers- Tube 5 x ½ 5 x ½ 6 5/8 x ½ 6 5/8 x ½ 8 5/8 x ½ 8 5/8 x ½ 8 5/8 x ½ 8 5/8 x ½ 8 5/8 x ½ 10 ¾ x ½
Bottom Augers - Flighting 3/8 & ½ 3/8 & ½ 3/8 & ½ 3/8 & ½ ½ & 5/8 ½ & 5/8 ½ & 5/8 ½ & 5/8 ½ & 5/8 3/4
Bottom Augers - Diameter 20 20 20 20 24 24 30 30 30 30
Top Augers - Tube 4 ½ x 3/8 4 ½ x 3/8 5 x ½ 5 x ½ 6 5/8 x ½ 6 5/8 x ½ 6 5/8 x ½ 6 5/8 x ½ 6 5/8 x ½ 8 5/8 x ½
Top Augers - Flighting 3/8 3/8 3/8 3/8 3/8 3/8 3/8 3/8 3/8 1/2
Top Augers - Diameter 20 20 20 20 24 24 28 28 28 30
Shaft Diameter - Drive Bottom 3 3 3 3 7/16 3 15/16 3 15/16 3 15/16 3 15/16 3 15/16 3 15/16
Shaft Diameter - Drive Top 2 1/2 2 1/2 2 1/2 3 3 3 3 3 3 7/16 3 7/16
Bearings Drive QM QM QM QM SFCW SFCW SFCW SFCW SFCW SFCW
Sprockets Drive S Taper S Taper S Taper S Taper S Taper S Taper S Taper S Taper S Taper S Taper
Tires 11 or 12R
22.5		 11 or 12R
22.5		 385/65R
22.5		 385/65R
22.5		 425/65R
22.5		 425/65R
22.5		 425/65R
22.5		 425/65R
22.5		 425/65R
22.5		 385/65R
22.5 (x4)**
Roller Chains 80-120 80-120 80-120 80H-120 100 - 140 100 - 140 100 - 160 100 - 160 100 - 160 120 - 160
Approx. Weight (lbs.) 8,600 9,750 11,150 11,250 14,000 15,200 18,000 20,940 23,500 26,540



Specifications
Model
Horizontal Mixers - Trailer
Category Name
Agriculture
Year
2018
Sale Type
New
Manufacturer
Lucknow
