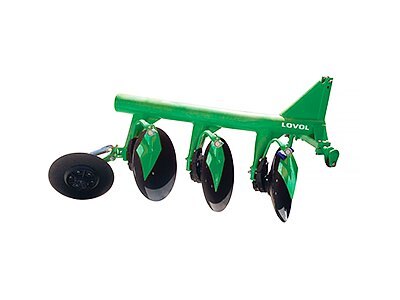

Lovol Disc Plough

  • Lovol Disc Plough
  • Lovol Disc Plough
  • Lovol Disc Plough
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

This equipment can be perfectly matched with tractors, which are designed for ploughing soil during crop rotation.

It is mainly used for complex lands such as overgrown weeds, fertile soil and masonry farmland.



Specifications
Model
1BQX-1.3
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Lovol
Model
1BQX-1.3
Number Of Disc
14
Working Depth(mm)
50-150
product parameters
Disc plough
  Conventional disc plough
Model 1LY315 1LY-220 1LY-320 1LY-420 1LY-322 1LY-225 1LY-325 1LY-425 1LY-525 1LY-635 1LY-735 1LY-835
Main parameters Working width(mm) 450 400 600 800 660 500 750 1000 1250 2100 2450 2800
Working depth(mm) 180 ≥200 200 ≥200 220 250-300 250-300 250-300 250-300 250-300 250-300 250-300
Number of disc 3 2 3 4 3 2 3 4 5 6 7 8
Diameter of disc(mm) 460 510 510 510 560 660 660 660 660 710 710 710
Weight (kg) 170 ≥160 ≥190 ≥250 ≥300 ≥290 ≥420 ≥480 ≥580 1600 1700 1800
Linkage Three points hitch cat 1 Three points hitch cat 1/cat2 Three points hitch cat 2 Semi-mounted
Tractor(hp) 25-30 18-20 30-50 35-50 45-55 50-60 75-90 90-100 100-120 125-160 160-200 180-220
Structure and material Disc thickness（mm） ≥4 ≥4 ≥4 ≥4 ≥4 ≥6 ≥6 ≥6 ≥6 8 8 8
Disc material   65Mn 65Mn 65Mn 65Mn 65Mn 65Mn 65Mn 65Mn 65Mn 65Mn 65Mn
Disc hardness (HRC) ≥44
Plough frame material Q235/Q345 steel
Plough column material 45 # steel
Axle size(mm) ≥45 ≥45 ≥45 ≥45 ≥55 ≥75 ≥75 ≥75 ≥75
Standard componentand appearance Bearing type TRB
Standard component Galvanized
Appearance treatment Stoving varnish
Color Optional

Disc plough
  Poly disc plough Round tube disc plough
Model 1LY-1200 1LY-1440 1LY-1400 1LY-1600 1LY-1650 1LY-1900 1LYX-230 1LYX-330 1LYX-430 1LYX-530 1LYX-630
Main parameters Working width(mm) 1200 1440 1400 1600 1650 1900 600 900 1200 1500 1800
Working depth(mm) 140 140 160 160 180 180 ≥250
Number of disc 5 6 5 6 6 7 2 3 4 5 6
Diameter of disc(mm) 560 560 610 610 660 660 660 660 660 660 660
Weight (kg) 265 295 350 360 565 580 ≥300 ≥400 ≥500 ≥600 ≥700
Linkage Three points hitch cat 1 Three points hitch cat 2 Three points hitch cat 2
Tractor(hp) 30-35 45-50 50-60 60-70 70-80 80-100 40-50 60-80 80-100 100-120 120-140
Structure and material Disc thickness（mm） 5 5 5 5 5 5 6
Disc material 65Mn 65Mn 65Mn 65Mn 65Mn 65Mn 65Mn 65Mn 65Mn 65Mn 65Mn
Disc hardness (HRC) ≥44
Plough frame material Q235/Q345 steel
Plough column material 45 # steel
Axle size(mm)
Standard componentand appearance Bearing type TRB
Standard component Galvanized
Appearance treatment Stoving varnish
Color Optional
product highlights
It has the characteristics of not wrapping grass, not blocking, not blocking soil, breaking stems, overcoming soil and masonry debris, high work efficiency, good work quality, convenient adjustment, and durability.
