ID # 28546441

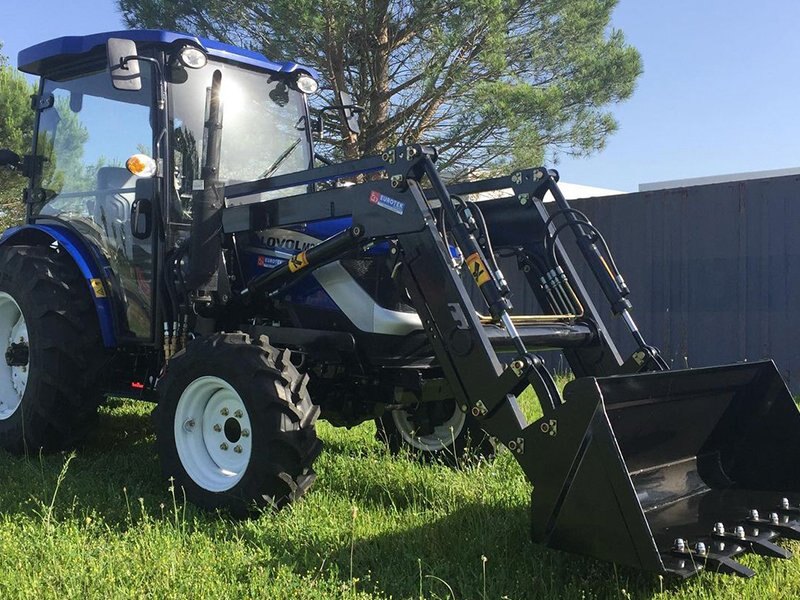

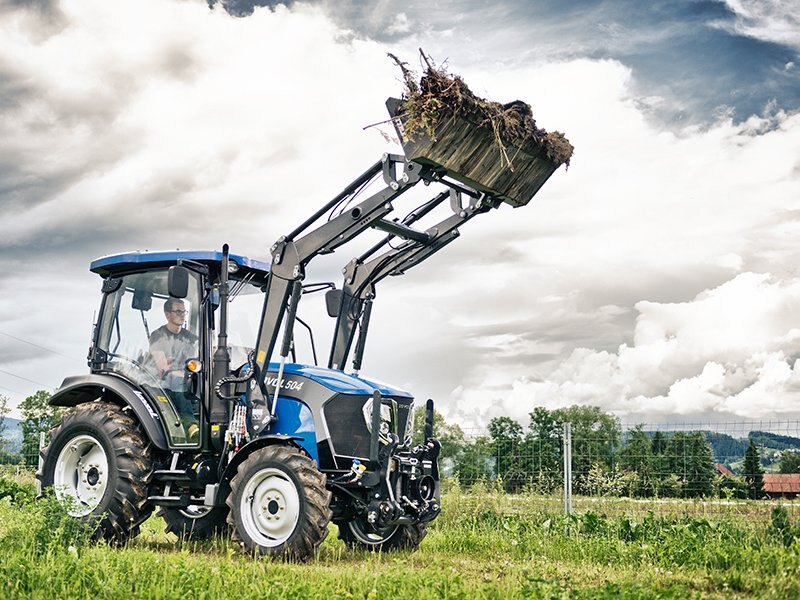

Lovol Front Loader

  • Lovol Front Loader
  • Lovol Front Loader
  • Lovol Front Loader
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

The product is developed for LOVOL TE-TR whole series tractors, which make use of hydraulic transmission, and compact structures.

A variety of different types of devices could be chosen, such as a combined bucket, wood fork, tray fork, straw clamp, and straw fork. It's convenient and efficient to accomplish different work under heavy loads.



Specifications
Model
Front Loader
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Lovol
Tractor(hp)
20-30（TE/TB）
Weight (kg)
460 Get a quote
product parameters
Front end loader
Model Tractor(hp) Weight (kg) max lifting height at implemen(mm) Dumping height(mm) Dumping distance(mm) Ground clearance at arm pivot pin(mm) Digging depth(mm) Bucket width(mm) Rated lifting capacity(kg) Tips
TZ02D 20-30 (TE/TB) 460 2550 ≧1850 ≧500 1200 100 1250 250 According to the demand, can be equipped with ordinary bucket, combined shovel, tray fork, grass fork, wood fork, shed cover bucket, etc
TZ03D 35-40 (TE/TB) 550-600 2600-2750 ≧1950 ≧500 1360 100 1400 300
TZ04D 45-55 (TE/TB) 560-700 2750-2850 ≧2050 ≧600 1400 100 1500 400
TZ05D 60-75 (TB) 590-750 3100-3200 ≧2350 ≧630 1450 110 1500 500
TZ06D 60-75 (TA) 750-800 3250-3350 ≧2450 ≧650 1650 110 1600 600
TZ08D 75-90 (TD) 850-900 3450-3550 ≧2500 ≧700 1730 130 1700 800
TZ10D 80-110 (TD) 950-1000 3650-3750 ≧2800 ≧740 1790 150 2000 1000
TZ12D 120-140 (TQ/TR) 1050-1150 3950-4150 ≧3000 ≧900 1950 200 2000 1200
product highlights

Compact structure, easy to operate, quick change-over

With high-quality hydraulic parts and pipe fittings, the product has strong applicability. It is widely used in all kinds of areas for shoveling, stacking, or short-distance transport of loose materials such as soil, sand, garbage, etc.
