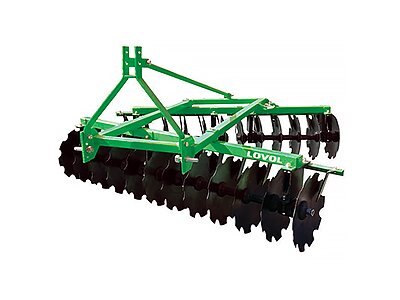

Lovol Disc Harrow

  • Lovol Disc Harrow
  • Lovol Disc Harrow
  • Lovol Disc Harrow
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

The disc harrow is crop residue processing before tillage, Breaking the hardened and impervious solid surface, crushing and spreading straw, shattering soil after tillage, planning the land, and preserving soil moisture.

It can be used on cultivated land for tillage harrow instead of ploughing.



Specifications
Model
Disc Harrow
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Lovol
Number Of Disc
14
Deep Plowing (mm)
50-150
product parameters
  Type Hanging light duty disc harrow Pair setting light duty disc harrow
Model 1BQX-1.3 1BQX-1.5 1BQX-1.7 1BQX-1.9 1BQX-2.1 1BQDX-1.3 1BQDX-1.6 1BQDX-2.0 1BQDX-2.3 1BQDX-2.8
Main parameters Deep plowing (mm)  50-150 50-150 50-150 50-150 50-150 50-150 50-150 50-150 50-150 50-150
Number of disc 14 16 18 20 22 16 20 24 28 32
Diameter of disc(mm) 460 460 460 460 460 460 460/510 460/510 460/510 460/510
Weight (kg) 220 256 270 310 326 301 364/380 407/430 459/487 487/519
Coupling tractor Three points hitch cat 1 Three points hitch cat 2 Three points hitch cat 2
Tractor(hp) 15-20 20-35 30-50 50-60 50-60 35-40 44-50 50-60 60-75 75-85
Working width(mm) 1300 1500 1700 1900 2100 1250 1600 2000 2300 2800
Structure and material Disc material 65Mn
Disc hardness (HRC) 40-44
DISC Dentate disc
Scraper Have Have Have Have Have Have Have Have Have Have
Standard componentand appearance Standard component Galvanized Galvanized Galvanized Galvanized Galvanized Galvanized Galvanized Galvanized Galvanized Galvanized
Appearance treatment Stoving varnish Stoving varnish Stoving varnish Stoving varnish Stoving varnish Stoving varnish Stoving varnish Stoving varnish Stoving varnish Stoving varnish
color Optional

  Type Hanging mediem-sized disc harrow Middle-duty pair setting Disc harrow
Model 1BJX-1.8 1BJX-2.0 1BJX-2.2 1BJX-2.4 1BJX-2.6 1BJX-2.8 1BJDX-2.2 1BJDX-2.6 1BJDX-3.0 1BJDX-3.4
Main parameters Deep plowing (mm)  150-200 150-200 150-200 150-200 150-200 150-200 150-200 150-200 150-200 150-200
Number of disc 16 18 20 22 24 26 20 24 28 32
Diameter of disc(mm) 560 560 560 560 560 560 560 560 560 560
Weight (kg) 445 472 540 650 680 800 750 830 910 1065
Coupling tractor Three points hitch Three points hitch
Tractor(hp) 50-60 55-75 55-75 70-80 70-80 80-100 60-70 70-80 90-100 100-120
Working width(mm) 1800 2000 2200 2400 2600 2800 2200 2600 3000 3400
Structure and material Disc material 65Mn
Disc hardness (HRC) 40-44
DISC Anterior dentate posterior disc Dentate disc
Scraper Have Have Have Have Have Have Have Have Have Have
Standard componentand appearance Standard component Galvanized Galvanized Galvanized Galvanized Galvanized Galvanized Galvanized Galvanized Galvanized Galvanized
Appearance treatment Stoving varnish Stoving varnish Stoving varnish Stoving varnish Stoving varnish Stoving varnish Stoving varnish Stoving varnish Stoving varnish Stoving varnish
color Optional

  Type Hydraulic pressure offset heavy duty disc harrow Hydraulic pressure pair setting heavy duty disc harrow
Model 1BZ-1.8 1BZ-2.0 1BZ-2.2 1BZ-2.5 1BZ-3.0 1BZ-3.4 1BZ-4.0 1BJ-4.4人工折叠1BJ-4.4 Artificial folding 1BZT-3.5 1BZT-4.5 1BZD-2.8 1BZD-3.2 1BZD-3.5
Main parameters Deep plowing (mm)  180-220 180-220 180-220 180-220 180-220 180-220 200 200 250 250 200-220 200-220 200-220
Number of disc 16 18 20 24 28 32 36 40 24 32 24 28 32
Diameter of disc(mm) 660*5 660*5 660*5 660*5 660*5 660*5 660 660 710 710 660 660 660
Weight (kg) 1100 1200 1380 1510 1650 1890 2250 2800 2600 3200 2100 2500 3000
Coupling tractor Traction Traction Traction
Tractor(hp) 70-80 80-90 100-120 120-150 150-180 180-250 130-155 140-160 140-180 150-200 100-120 100-120 120-150
Working width(mm) 1800 2000 2200 2500 3000 3500 4000 4000 3300 4500 2700 3200 3500
Structure and material Disc material 65Mn 65Mn
Disc hardness (HRC) 40-44 40-44 40-44 40-44 40-44 40-44 40-44 40-44 40-44 40-44 40-44
DISC Dentate disc/Anterior dentate posterior disc Dentate disc/Anterior dentate posterior disc
Scraper Have Have Have Have Have Have Have Have Have Have Have
Standard componentand appearance Standard component Galvanized Galvanized
Appearance treatment Stoving varnish Stoving varnish
color Optional Optional
product highlights

With high efficiency, good quality work, easy to adjust, simple to use,durable.

Mainly applicable for breaking up the clods of farmland and light soil after furrow, and loosening soil and mixing soil and fertilizer before sowing. With reasonable structure, strong ability to rake, durable, easy to use and maintain, etc.
