ID # 28542190

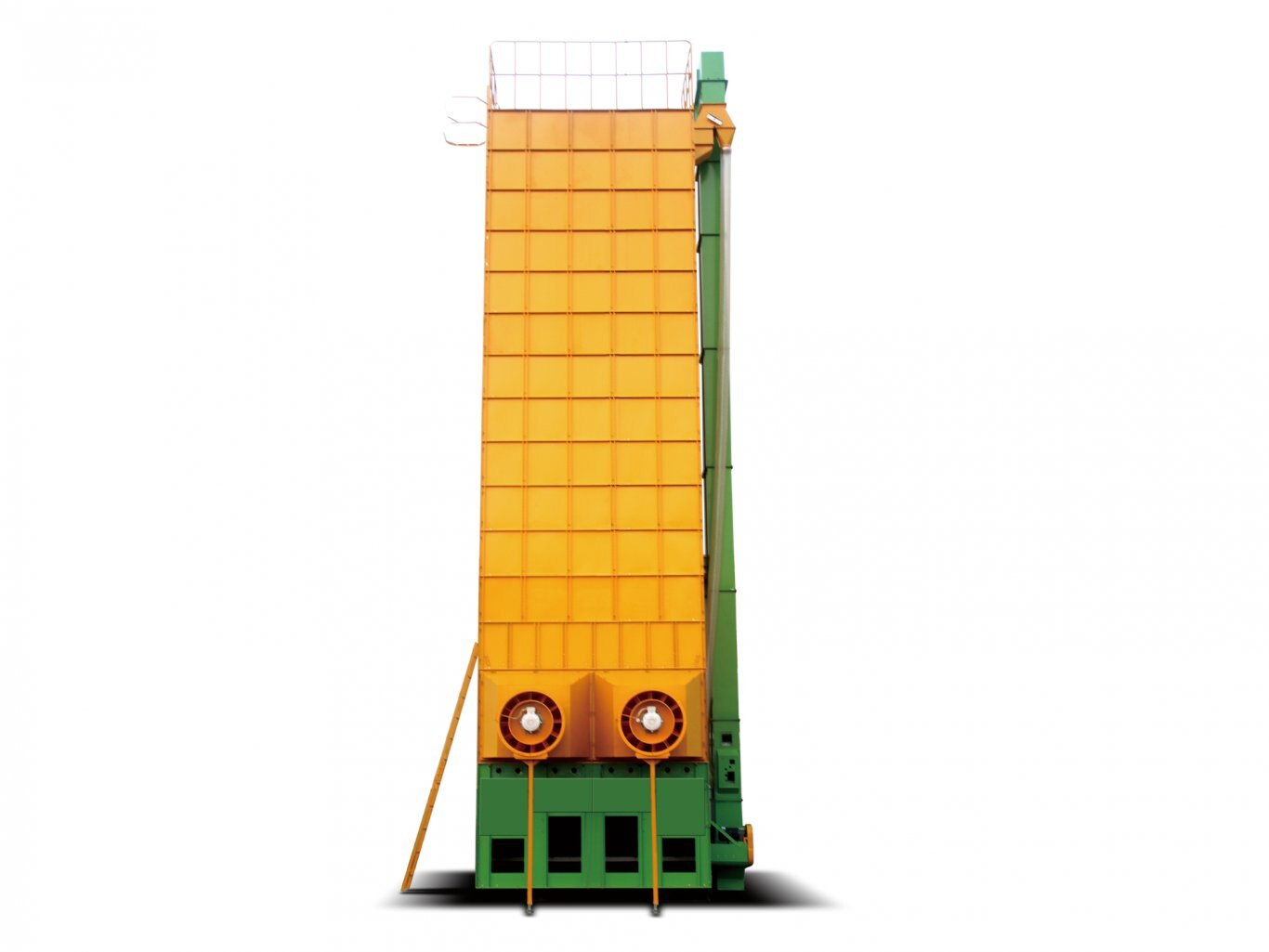

Lovol Batch Circulation 30T Cross-Flow Grain Dryer

  • Lovol Batch Circulation 30T Cross Flow Grain Dryer
  • Lovol Batch Circulation 30T Cross Flow Grain Dryer
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Lovol Batch Circulation 30T cross-flow grain dryer is used for drying rice, wheat, and other crops.

This dryer provides integrated solutions for intelligent drying and storage of grains according to customer needs.



Specifications
Model
Batch Circulation 30T Cross-Flow Grain Dryer
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Lovol
Weight(kg)
5500
Dimension(mm)
4893×3883×12681
Matched Power(hp)
16.8
product highlights

 It can match various resources such as diesel, natural gas, biomass, and coal.



product parameters

Project

Specifications and Parameters

Model

5HXW0300

5HXY0300

5HXQ0300

Dryer Type

Batch Circulation Cross Flow

Capacity (kg)

Rice(560kg/m3)

30000

Wheat(680kg/m3)

35000

Combustion Furnace

Hot Blast Furnace

Oil Burner

Gas Burner

Length*Width*Height(mm)

4893×3883×12681

Ignition Method

Automatic or Manual

Automatic

Automatic

Fuel

Rice Husks, Coconut Husks, Coal, Wood Leftovers,   Corn Cob

Light Diesel Fuel

Natural Gas

Fuel Consumption

Biomass Fuel

≤120kg/h

15-40L/h

16-35Nm3/h

Coal

≤60kg/h

Supporting Power Supply

3boxes, 380V, 50HZ

Power(kW)

16.8(Excluding Heat Sources)

Weight(kg)

5500

Working   Performance

Feed Time(min)

55-65

Discharge Time(min)

60-70

Drainage Rate（%/h）

0.5-1.0

Security Settings

Air Pressure Switch,

  Hot Air Temperature Detector,

Abnormal Overheating Detector,

Thermal Relay,

Leakage Protection Type Single-phase Circuit   Breaker,

  Full Volume Detector

Note: The performance and drainage rate listed in the above table are reference values. The actual values will vary due to outside air temperature, relative humidity, drying type, hot air temperature and moisture content before and after drying.
