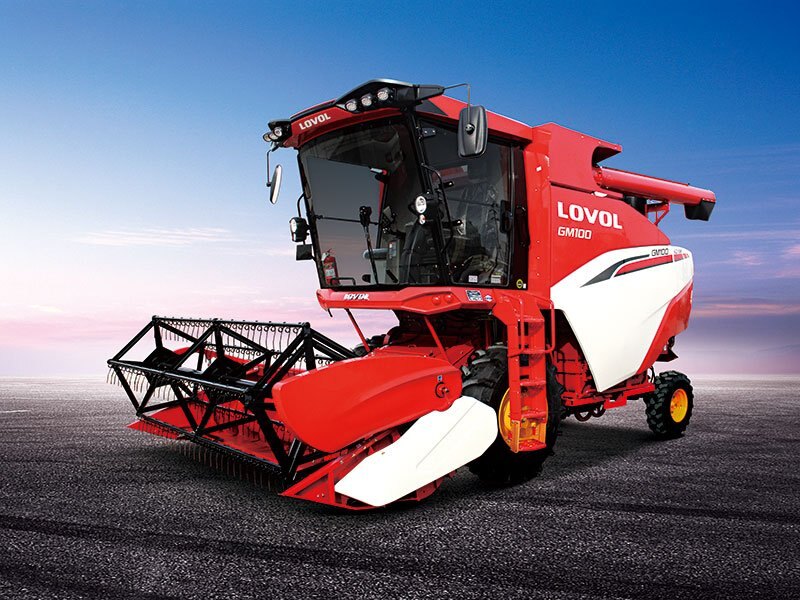

Lovol GM100 Wheel Combine Harvester

  • Lovol GM100 Wheel Combine Harvester
  • Lovol GM100 Wheel Combine Harvester
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

LOVOL GM100 is a multi-purpose harvester designed for small and medium-sized farms and agricultural machinery service providers. Adopt international advanced longitudinal flow threshing and separation technology，by changing different attachments，making it suitable for rice, wheat, corn, sorghum, beans. It applies to the whole region, the entire period, the whole crop efficient harvest.



Specifications
Model
GM100
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Lovol
ENGINE Power(ps)
175
Total Weight(kg)
7350
Cutting Width(mm)
3860
product parameters
Item Unit Parameter
Engine Power ps 175
Cutting Width mm 3860
Total Weight kg 7350
Feed Capacity kg 10
Overall Dimensions mm 7000×4200×3470
Tank Volume L 2800
 Working Efficiency h㎡/h 0.8-2.0
 Threshing Structure Form / longitudinal axial flow
 Cleaning Structure Form / air-and-screen cleaning device
 Unloading Grain Height Mm 3700
product highlights

Efficient

1. Using 175HP High pressure common rail engine,and 190 HP stageⅢengine is also available.

2. The widest header in the same model reaches 3.86 meters.

3. Strong unloading auguer,takes 90 seconds to unload.

4.Usingφ600mm×3145mm longitudinal axial flow threshing separation drum,has a sizeable threshing separation area.And 289-1150r/min infinitely variable speeds are efficient.

5. 5.85m turning radius realizes fast turning round speed.

6. Unloading height is close to 3.7meters,which can meet different unloading trucks'height requirements.

Reliable

1. Bosch controller oil feeding system is fuel-efficient and reliable.

2. Using an imported Japanese BANDO belt and Peel bearing,it has a high transmission efficiency and excellent heat dissipation,making it more reliable.

3. Using the imported Danfoss walking pump and the hydrostatic drive.

4. Using imported Danfoss Multi-way valve with high reliability.

5. Using international advanced American imported Tessia air condition compressor.

6. All electrical wiring harness connectors are waterproof.

All-round

1. Optional headers and attachment for wheat,soybean,corn,suitable for different crops.

2. 2.Both side covers can be opened to change the concave plate,ideal for different crops.

3. Standard cutter and disperser,convenient for straw shredding and returning to the field.

Comfortable

1. The front and lower visual field reaches 65°,can see the crops enter the bridge,the horizontal visual field exceeds 180°,six high brightness freely adjustable LED working lights to meet night operation needs.

2. Full coverage of 360°wiper front stopper to solve the problem of no scraping brush in the operating field below.

3. Positive pressure cab,the cab's internal pressure is higher than that of the outside,which improves the cleanliness of ventilation.

4. The control box seat moves along to adapt to the comfort problem caused by position adjustment at different harvesting heights.

5. The seat can be adjusted to six directions,and the Angle of the steering mechanism can be adjusted to perfectly match the driving posture,reduce fatigue and make the operation comfortable.
