ID # 28541934

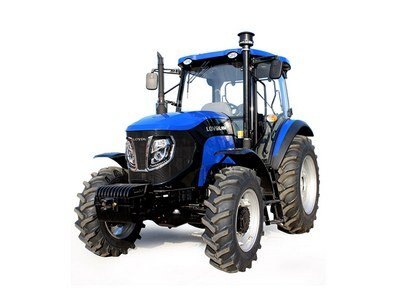

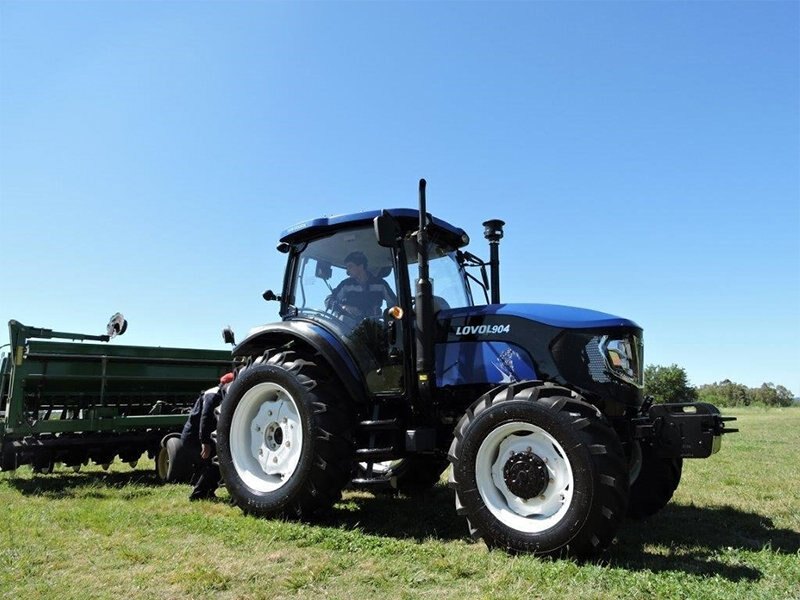

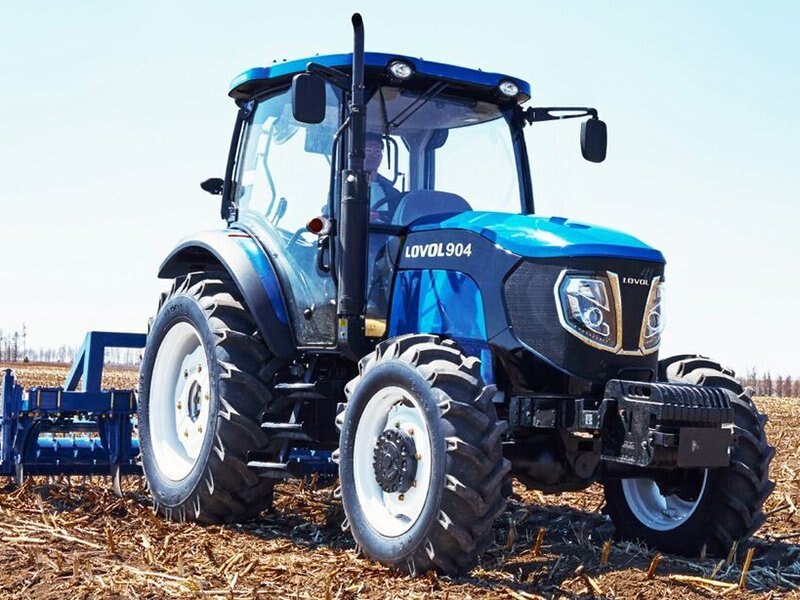

Lovol D904 Tractor

  • Lovol D904 Tractor
  • Lovol D904 Tractor
  • Lovol D904 Tractor
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Lovol D904 tractor adopts 16+8 synchronizer to shift gears, and 16+8 shuttle/creeper are optional. This series of tractors has the characteristics of comfortable driving, efficient work, economical and energy-saving, and reliable performance, bringing you high efficiency, Multi-function, lasting power, and a new experience of comfortable operation.
Specifications
Model
Huafeng 4RMIZT22
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Lovol
HORSEPOWER(HP)
90
product highlights

1. LOVOL TD904 tractor is designed and manufactured for dry land and multifunctional applications.

2. Using the engine that satisfies the EuroⅡemission standards, torque reserve coefficient ≥35%, the traction force up to 21.3kn. Synchronizer 16F+8R gear, easy to shift; Body appearance upgrade, high handling comfort.

3. Optional LUK clutch, the United States Actuant instrument, strengthen front axle and chassis; Key parts and components are purchased from all over the world with High reliability. Multiple tire options; Optional internal and external air filter; upper exhaust; Single optional pipeline or double-pipeline air brake; Main and auxiliary dual tanks capacity up to 145L (optional 90L iron fuel tank).
product parameters
Item Unit Parameter
Engine
Model / Huafeng 4RMIZT22
Horsepower HP 90
Displacement L 4.67
Torque N M 390-420/1400-1600
Transmission
Gearshift / 16+8
Technical route / Synchronizer shift
Speed range km/h 1.77-34.8
PTO speed r/min 540/1000
Hydraulic
Lifting power kN 20
Three-point suspension type / Category 2
Hydraulic output flow L/min 53
Number of multi-way valves / Standard 2, Optional 3
Parameter
length*width* height mm 4530×2150×2900
Wheelbase mm 2366
Ground clearance mm 405
Turning radius m 4.2±0.3
Minimum use quality kg 4155(CAB)/3860(CANOPY)
Tire size / 12.4-24/18.4-30, optional 11.2-24/16.9-34
