Lovol

ID # 28537853

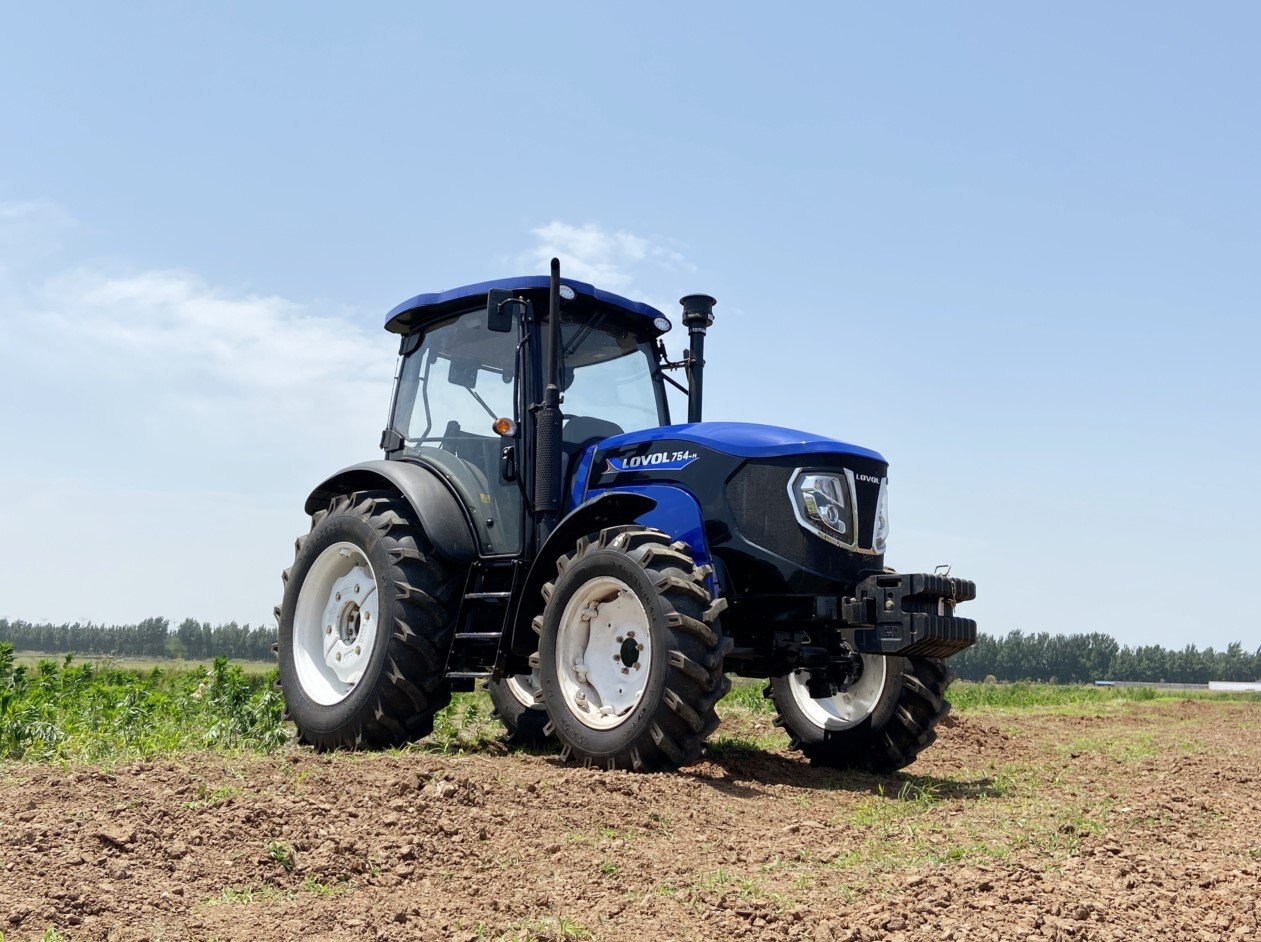

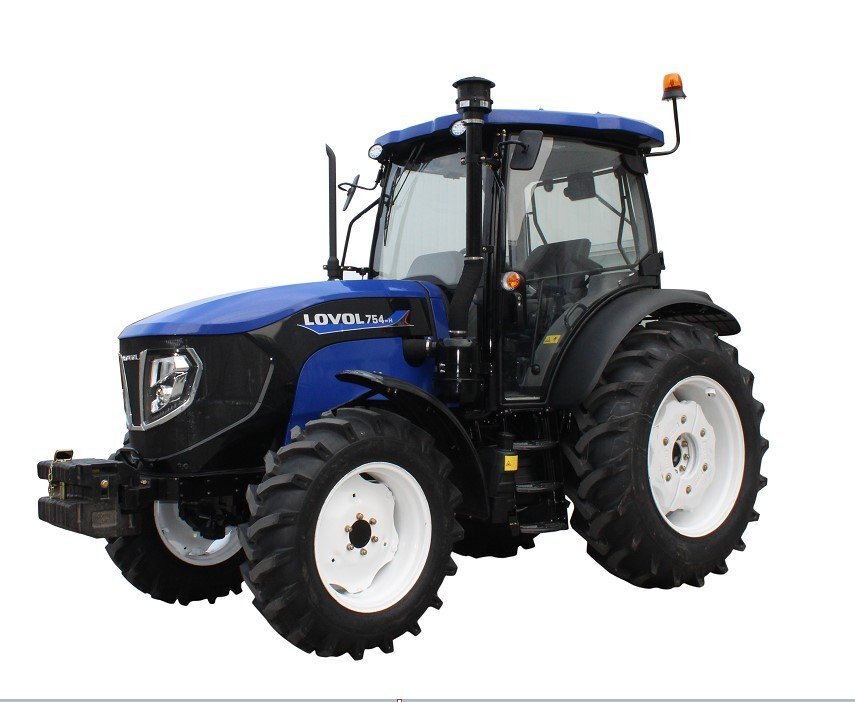

Lovol H754 Tractor

Call for Price
Overview
Lovol H754 tractor is equipped with 12+12 synchronizer for shifting. It is a dry field and multi-purpose tractor independently developed by Weichai Lovol Heavy Industry and is suitable for small and medium-sized farms.
Specifications
Model
H754
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Lovol
ENGINE
Xinchai A4K43T75
Model
H754
HORSEPOWER(HP)
75
product highlights

It is generally applicable to dry land operations such as farm towing, plowing, and rotary tillage, and also applicable to other operations such as front bulldozing, front-loading, and rear excavation.

1. New diesel engine A4K3, complying with Euro II/ Euro III A emission standards, with torque reserve coefficient of ≥30% and traction force up to 17 KN;

2. Shared oil chassis, with chassis oil radiator to improve working efficiency, the maximum system lifting force (610 mm behind the suspension point) up to 24 KN;

3. The maximum rear wheel of 18.4-30, with an optional multiport valve for continuous hydraulic output valve to meet the requirements of operation under special conditions.

product parameters
Item Unit Parameter
Engine - Xinchai A4K43T75
Model / H754
Horsepower HP 75
Displacement L 4.32
Torque N M 280/1600-1800
Transmission
Gearshift / 12+12
Technical route / Mechanical synchronizer
Speed range km/h 1.95-34.13
PTO speed r/min 540/1000
Hydraulic
Lifting power kN 17
Three-point suspension type / Category 2
Hydraulic output flow L/min 50
Number of multi-way valves / 2
Parameter
length*width* height mm 4795×1980×2720
Wheelbase mm 2270
Ground clearance mm 390
Turning radius m 4.5
Minimum use quality kg 3210
Tire size / 11.2-24/18.4-30
