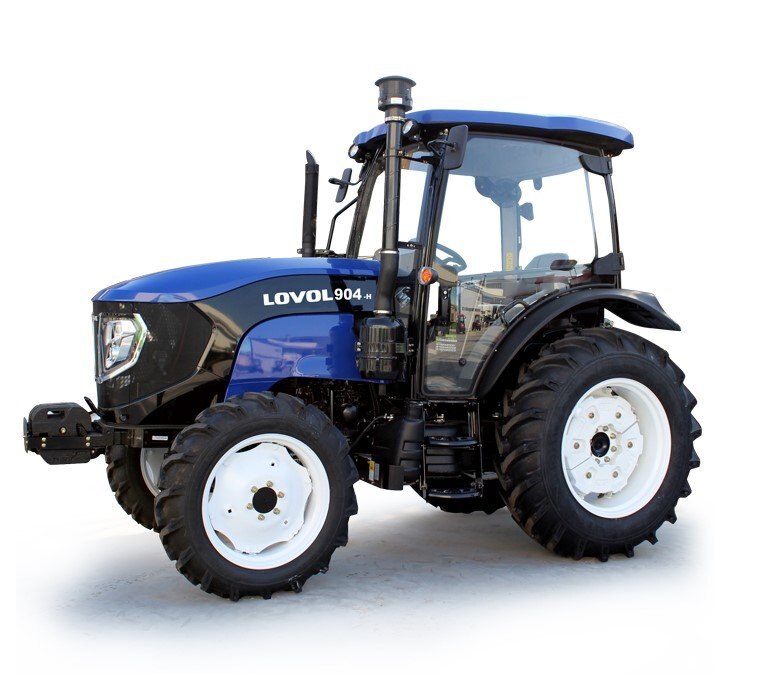

| Lovol H904 tractor is equipped with 12+12 synchronizer for shifting. It is a dry field and multi-purpose tractor independently developed by Weichai Lovol Heavy Industry and is suitable for small and medium-sized farms. |
|
It is generally applicable to dry land operations such as farm towing, plowing, and rotary tillage, and also applicable to other operations such as front bulldozing, front-loading, and rear excavation. 1. New diesel engine 4D35, complying with Euro II emission standard, with torque reserve coefficient of ≥30% and traction force up to 20 KN; 2. Shared oil chassis, with chassis oil radiator to improve working efficiency, the maximum system lifting force (610 mm behind the suspension point) up to 24 KN; 3. The maximum rear wheel of 18.4-30, with an optional multiport valve for continuous hydraulic output valve to meet the requirements of operation under special conditions. |
| Item | Unit | Parameter |
| Engine | - | Xinchai 4D35ZT |
| Model | / | H904 |
| Horsepower | HP | 90 |
| Displacement | L | 3.47 |
| Torque | N M | 360/1600~1800 |
| Transmission | ||
| Gearshift | / | 12+12 |
| Technical route | / | Mechanical synchronizer |
| Speed range | km/h | 1.5-32.2 |
| PTO speed | r/min | 540/1000 |
| Hydraulic | ||
| Lifting power | kN | 24 |
| Three-point suspension type | / | Category 2 |
| Hydraulic output flow | L/min | 50 |
| Number of multi-way valves | / | 2 |
| Parameter | ||
| length*width* height | mm | 4795×1980×2720 |
| Wheelbase | mm | 2270 |
| Ground clearance | mm | 390 |
| Turning radius | m | 4.5 |
| Minimum use quality | kg | 3210 |
| Tire size | / | 12.4-24/18.4-30 |
