Lovol

ID # 28537751

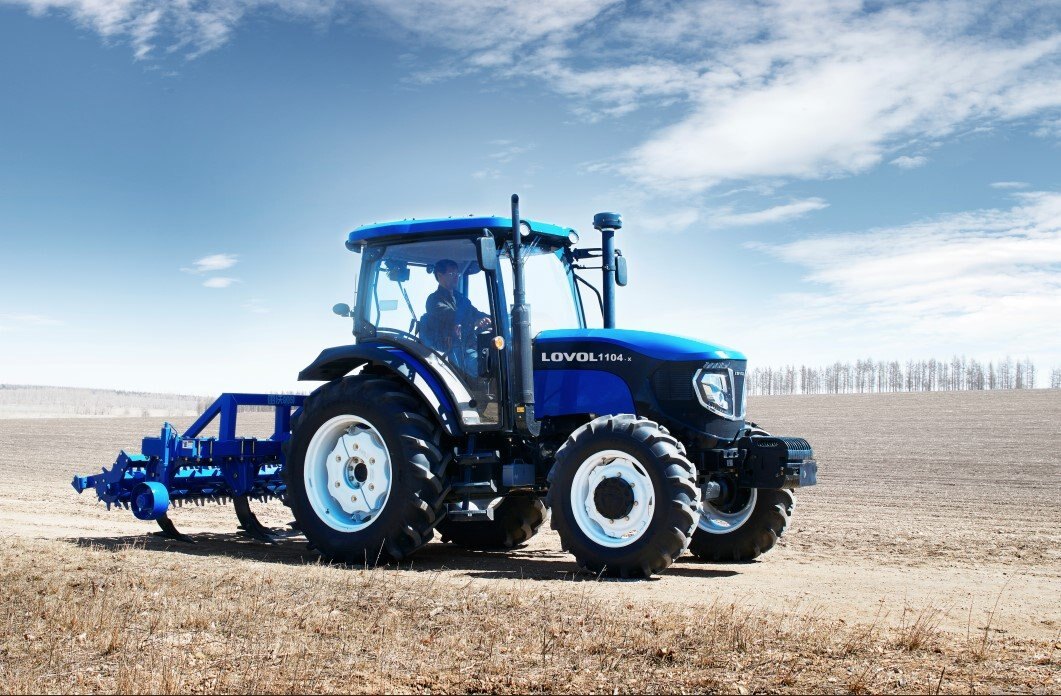

Lovol X1104 Tractor

Call for Price
Overview
Lovol X1104 tractor is equipped with 12+12 synchronizer for shifting. It is a dry field and multi-purpose tractor independently developed by Weichai Lovol Heavy Industry and is suitable for medium-sized farms.



Specifications
Model
X1104
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Lovol
Model
X1104
ENGINE
Huafeng 4RMIZT26
HORSEPOWER(HP)
110
product highlights

It is mainly used for dry land operations such as plowing, raking, rotary tillage, deep scarification, and sowing, and is also generally applicable to transportation, intertillage, engineer construction, municipal works, and other working conditions.


1. Huafeng 4R engine, complying with Euro II emission standard, with torque reserve coefficient of ≥35% and traction force up to 21.3 KN; Synchronizer 12+12 gears, easy shifting and comfort operation;
2. LUK 12" clutch and practical power instrument from U.S.; Key parts and components purchased globally; Multiple tire specifications available;
3. Standard 2-way hydraulic output, with optional 3-way output; Type II suspension; Optional double-cylinder forced pressure lifter, with the maximum lifting force up to 35 KN.

product parameters
Item
Engine
Model
Horsepower
Displacement
Torque
Transmission
Gearshift
Technical route
Speed range
PTO speed
Hydraulic
Lifting power
Three-point suspension type
Hydraulic output flow
Number of multi-way valves
Parameter
length*width* height
Wheelbase
Ground clearance
Turning radius
Weight
Tire size
Unit
-
/
HP
L
N M

/
/
km/h
r/min

kN
/
L/min
/

mm
mm
mm
m
kg
/
Parameter
Huafeng 4RMIZT26
X1104
110
4.67
485/1500±100

12+12
Synchronizer shuttle shift
2.38-33.16
540/1000

20(Optional 35)
Category 2
46
2

4400×2150×2900
2340
390
4.6±0.3
3800(ROPS)/4000(CABIN)
12.4-24/18.4-30
