Lovol

ID # 28537735

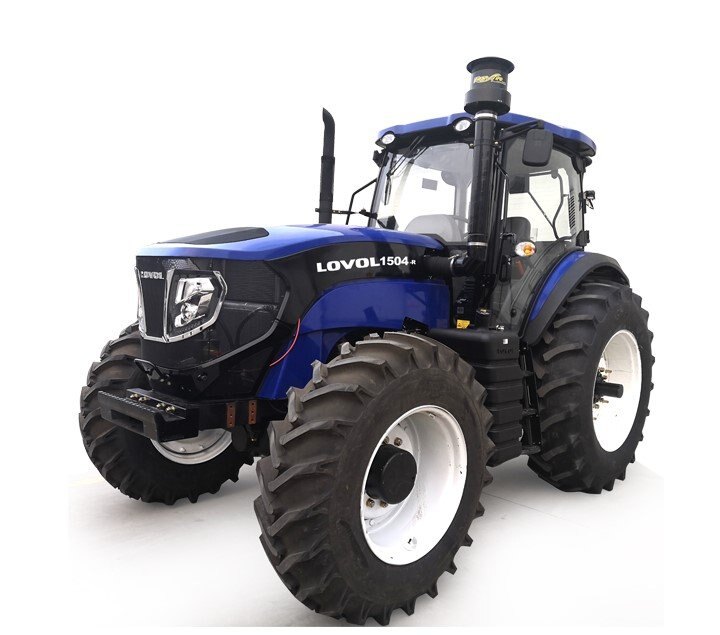

Lovol R1504 Tractor

Call for Price
Overview
Lovol R1504 tractor is equipped with 16+16 synchronizer for shifting. It is a farm tractor developed by Weichai Lovol Heavy Industry's technical team in Europe and is suitable for households and medium and large-sized farms.



Specifications
Model
R1504
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Lovol
Model
R1504
ENGINE
Shangchai SC7H160G2
HORSEPOWER(HP)
150
product highlights

It may work together with large machines and tools such as subsoilers, hydraulic reversible plows, and combined tillage machines, and is generally suitable for farmland tillage, sowing, deep scarification, transportation operation, and other working conditions.


1. Engine meeting Euro II emission standard, with torque reserve coefficient of ≥30% and traction force up to 35 KN; Synchronizer 16F+16R gears, easy shifting; Upgraded vehicle body outlook and comfort operation;
2. LUK clutch and practical power instrument from U.S., standard Calulu front axle and strengthened chassis and rear axle; Key parts and components purchased globally, for high product reliability; Multiple tire options; Optional internal and external air filters; Upper 350 L fuel tank;
3. Standard 4-way hydraulic output; Type III (optional Type II) suspension; Standard forced pressure lifter, with the maximum lifting force up to 45 KN; Optional electronic-controlled lifter, with the maximum lifting force up to 47 KN; pendulum traction, compatible with various machines and tools for different operation requirements;
4. OECD certificated.

product parameters
Item Unit Parameter
Engine - Shangchai SC7H160G2
Horsepower HP 150
Displacement L 0.644
Torque N M 613-677/1500±100
Transmission
Gearshift / 16+16
Technical route / Synchronizer shuttle shift
 Speed range km/h 2.73-32.64
 PTO speed  r/min 540/1000
 Hydraulic
Lifting power KN 47
 Three-point suspension type / Category 2/3
 Hydraulic output flow L/min 75
 Number of multi-way valves / 2
Parameter
 length*width* height mm 5300×2620×3010
Wheelbase mm 2727
 Ground clearance mm 450
 Turning radius m 5.0±0.3
 Minimum use quality kg 6150
 Tire size / 14.9-28/18.4-38
