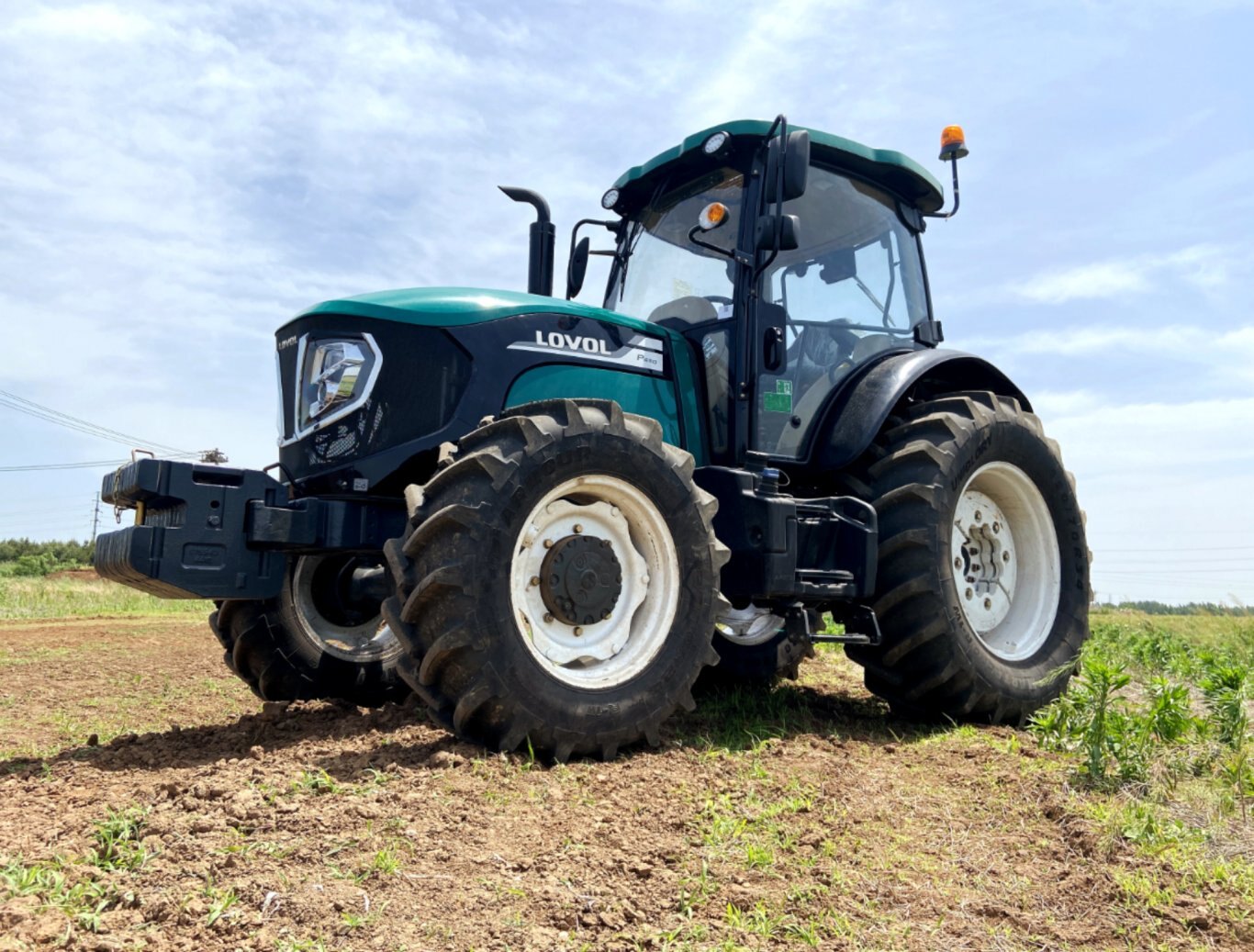

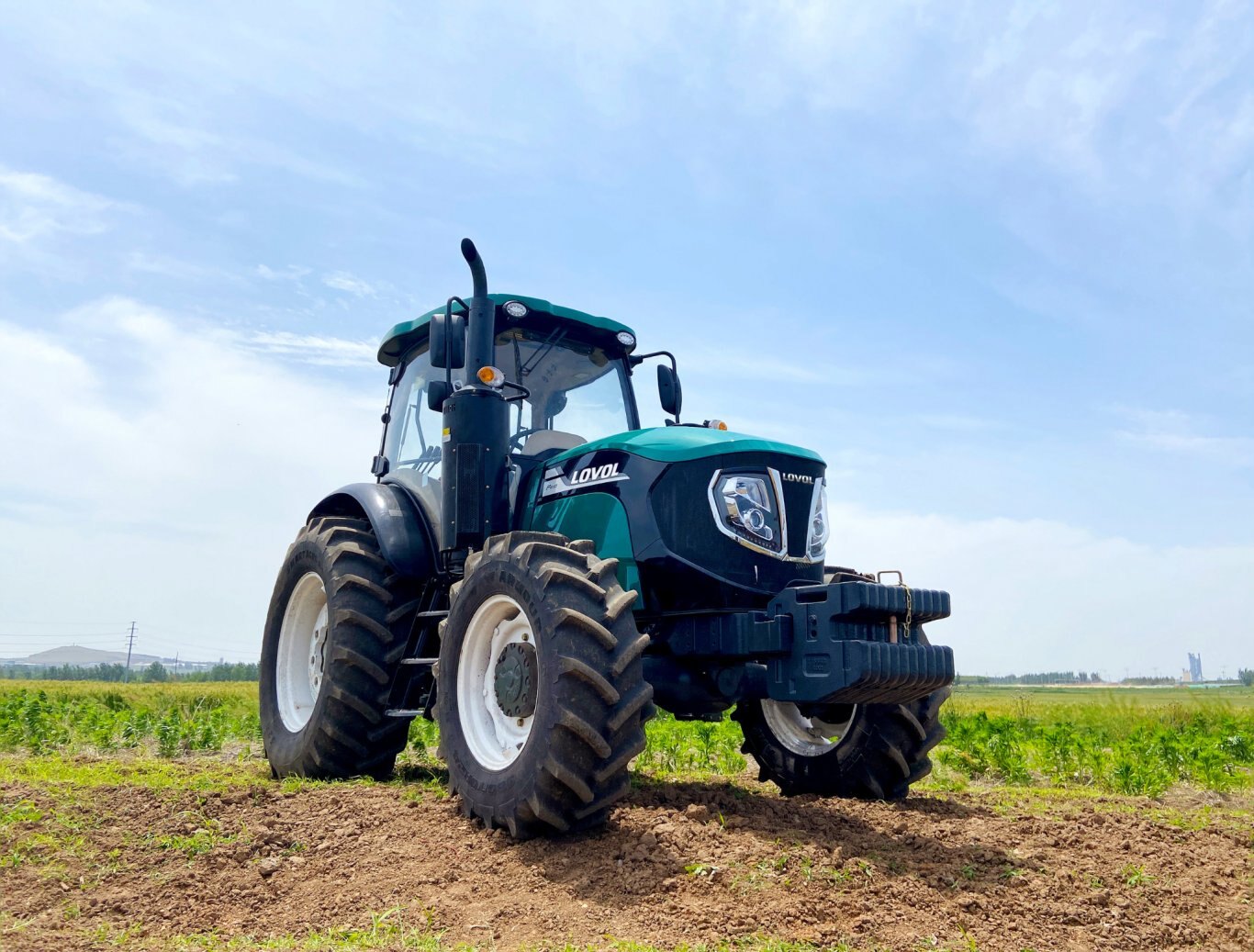

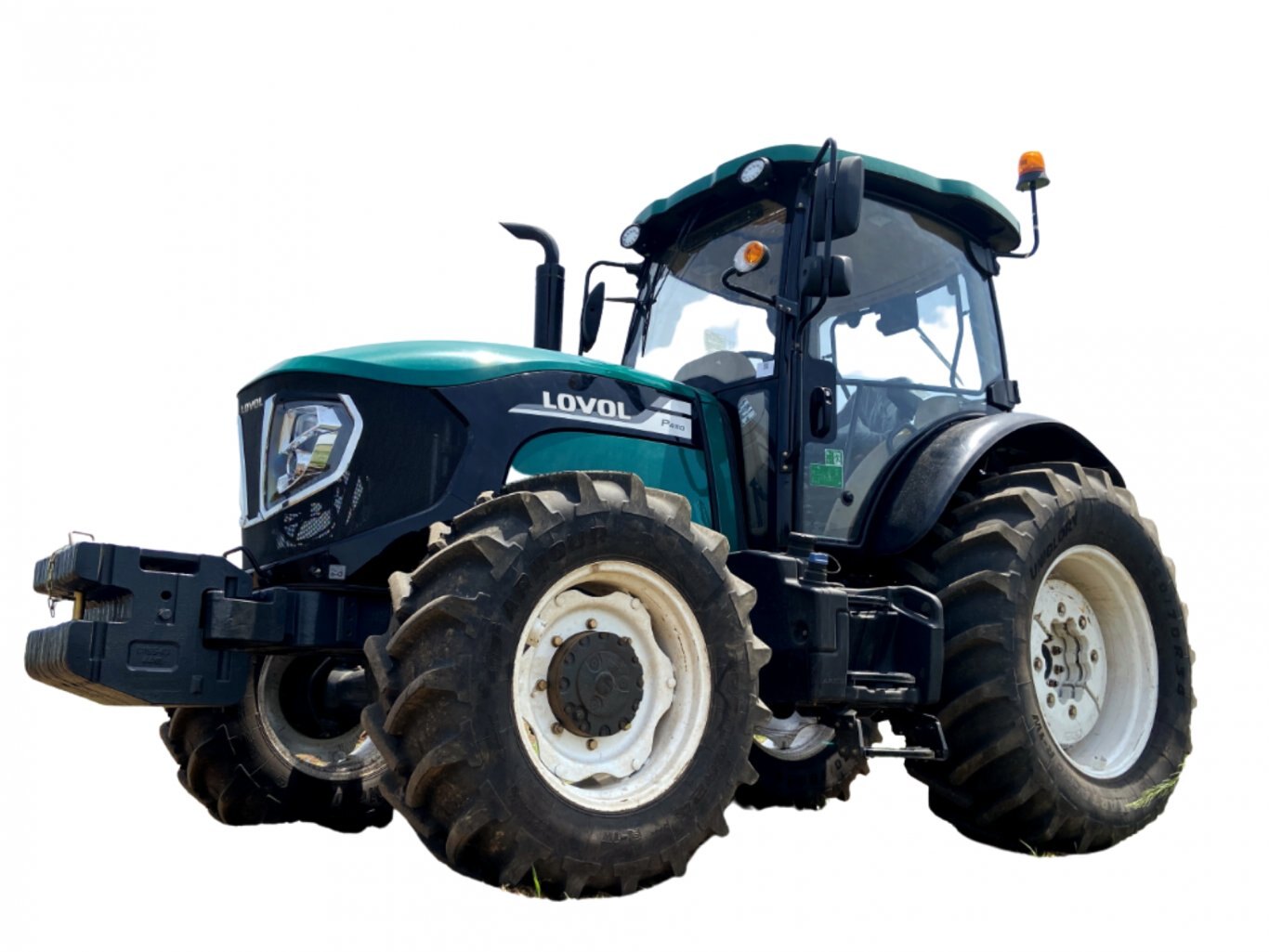

LOVOL P4110 is equipped with an intercooling turbo engine with high torque reservation,18+18 creeper shifts plus a synchro shuttle that allow the tractor to work with more speed choices, the shuttle shift enables it easier and more convenient for material handling and transportation job. The robust powertrain makes P4110 an efficient face to farming jobs. |
| Specifications and Parameters | |
| Engine | Doosan DN03 |
| Model | P4110 |
| Horsepower(HP) | 110 |
| Displacement(L) | 3.4 |
| Torque(N·M) | 450/1700rpm |
| Transmission | |
| Gearshift | 18+18 |
| Technical Route | Three-speed Power Shift |
| PTO Speed(r/min) | 540/1000 |
| Hydraulic | |
| Lifting Power 610mm(kg) | 2400 |
| Three-point Suspension Type | CAT.2 |
| Hydraulic Output Flow(L/min) | 25+16 |
| Number of Multi-way Valves | 3 |
| Parameter | |
| Length*Width*Height(mm) | 4725*2200*3185 |
| Wheelbase(mm) | 2370 |
| Ground Clearance(mm) | 430 |
| Weight without Ballast(kg) | 3890 |
| Tires | |
| Front | 380/70R24 |
| Rear | 520/70R34 |
