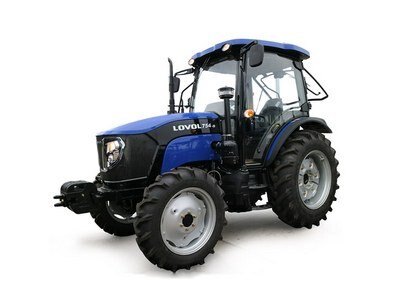

Lovol B754 Tractor

  • Lovol B754 Tractor
  • Lovol B754 Tractor
  • Lovol B754 Tractor
  • Lovol B754 Tractor
  • Lovol B754 Tractor
  • Lovol B754 Tractor
  • Lovol B754 Tractor
  • Lovol B754 Tractor
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Lovol B754 tractor adopts the 12+12 side synchronizer shuttle shift. It is an agricultural model developed for medium and small farms. It is equipped with a high-torque four-cylinder engine, and It is perfectly integrated, more efficient, and more fuel-efficient. Simultaneously, it is equipped with a more robust chassis and synchronizer gearbox, making the operation smoother and bringing more robust durability and reliability. B series compact tractors have the characteristics of high comfort, strong power, efficient work, and responsiveness, bringing you a new experience of high efficiency, multi-function, strong power, and comfortable operation.



Specifications
Model
B754
Category Name
Agriculture
Year
2022
Sale Type
New
Manufacturer
Lovol
ENGINE
Xinchai A4K43T75
HORSEPOWER(HP)
75
product highlights

1. LOVOL TB754 tractor is designed and manufactured for dry, paddy, and multifunctional applications.

2. Adopting Xinchai 4108 engine or Doushan D24 engine, satisfies the Euro Ⅱ, Euro Ⅴ, and EPA4 emissions standards, torque reserve coefficient ≥25%, the traction force up to 17 KN. Synchronizer 12F+12R gear, easy to shift; Body appearance upgrade, high handling comfort.

3. Using American Actuant instrument, LOVOL strengthened front axle, good waterproof performance, strengthened chassis and synchronizer gearbox, hydraulic shared-oil lifting, high product reliability; Optional internal and external air filter, upper exhaust; optional air brake.

4. Using Category Ⅱ suspension, dual auxiliary oil cylinders lifter, maximum lifting force up to 11.5 KN; 6  splines output shaft, optional PTO rotation speed 540/760/1000, swing traction, can be equipped with a variety of machines and tools, to meet the needs of different operations.

5.OECD and EC authentication
product parameters
Item Unit Parameter
Engine
Model   Xinchai A4K43T75
Horsepower HP 75
Displacement L 4.32
Torque N M ≥260
Transmission
Gearshift   12+12
Technical route   Synchronizer shift
Speed range km/h 2.13-37.61
PTO speed r/min 540/1000
Hydraulic
Lifting power kN 11.5
Three-point suspension type   Category 1or2
Hydraulic output flow L/min 43
Number of multi-way valves   2
Parameter
length*width* height mm 4256×1786×2877
Wheelbase mm 2070
Ground clearance mm 325
Turning radius m 3.2±0.3
Minimum use quality kg 3180
Tire size   9.5-24/14.9-30
