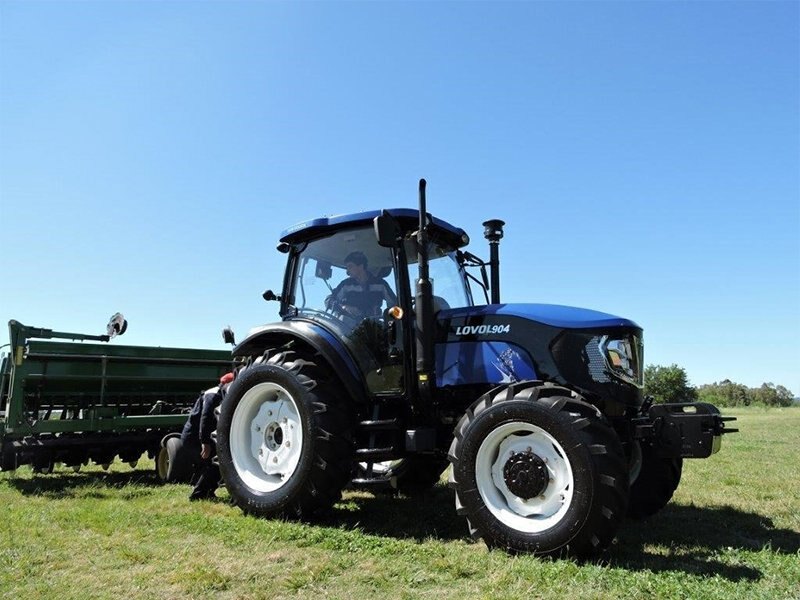

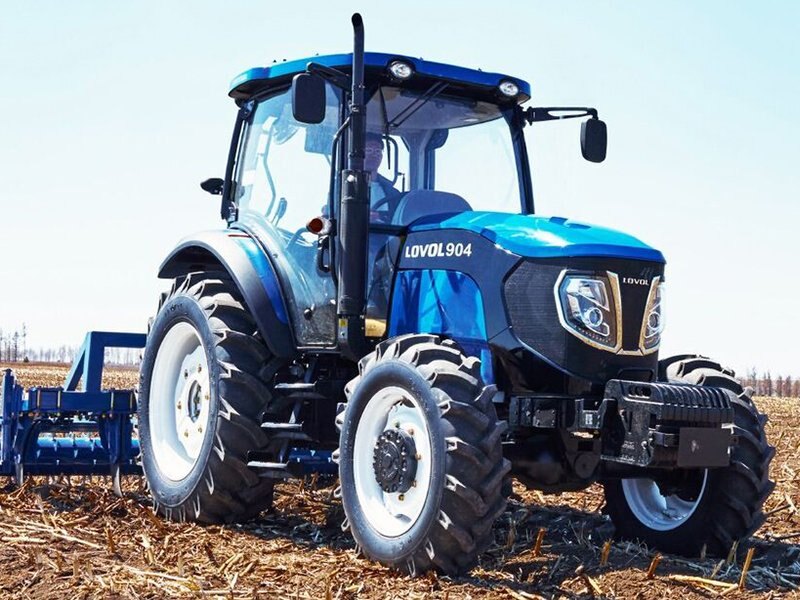

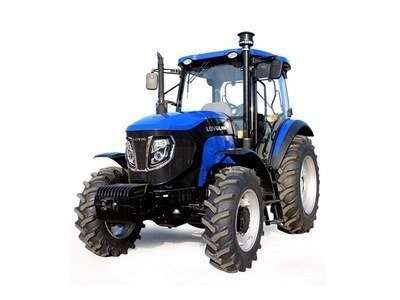

Lovol D904 tractor adopts 16+8 synchronizer to shift gears, and 16+8 shuttle/creeper are optional. This series of tractors has the characteristics of comfortable driving, efficient work, economical and energy-saving, and reliable performance, bringing you high efficiency, Multi-function, lasting power, and a new experience of comfortable operation. |
|
1. LOVOL TD904 tractor is designed and manufactured for dry land and multifunctional applications. 2. Using the engine that satisfies the EuroⅡemission standards, torque reserve coefficient ≥35%, the traction force up to 21.3kn. Synchronizer 16F+8R gear, easy to shift; Body appearance upgrade, high handling comfort. 3. Using LUK clutch, the United States Actuant instrument, strengthen front axle and chassis; Key parts and components are purchased from all over the world with High reliability. Multiple tire options; Optional internal and external air filter; upper exhaust; Single optional pipeline or double-pipeline air brake; Main and auxiliary dual tanks capacity up to 145L (optional 90L iron fuel tank). |
| Item | Unit | Parameter |
| Engine | ||
| Model | Shangchai 4H | |
| Horsepower | HP | 90 |
| Displacement | L | 4.5 |
| Torque | N M | ≥420 |
| Transmission | ||
| Gearshift | 16+8 | |
| Technical route | Synchronizer shift | |
| Speed range | km/h | 1.77-34.8 |
| PTO speed | r/min | 540/1000 |
| Hydraulic | ||
| Lifting power | kN | 20 |
| Three-point suspension type | Category 2 | |
| Hydraulic output flow | L/min | 53 |
| Number of multi-way valves | 3 | |
| Parameter | ||
| length*width* height | mm | 4530×2150×2900 |
| Wheelbase | mm | 2366 |
| Ground clearance | mm | 450 |
| Turning radius | m | 4.2±0.3 |
| Minimum use quality | kg | 4155 |
| Tire size | 11.2-24/16.9-34 |
